Headlamp Dimmer Switch
Headlamp Dimmer Switch

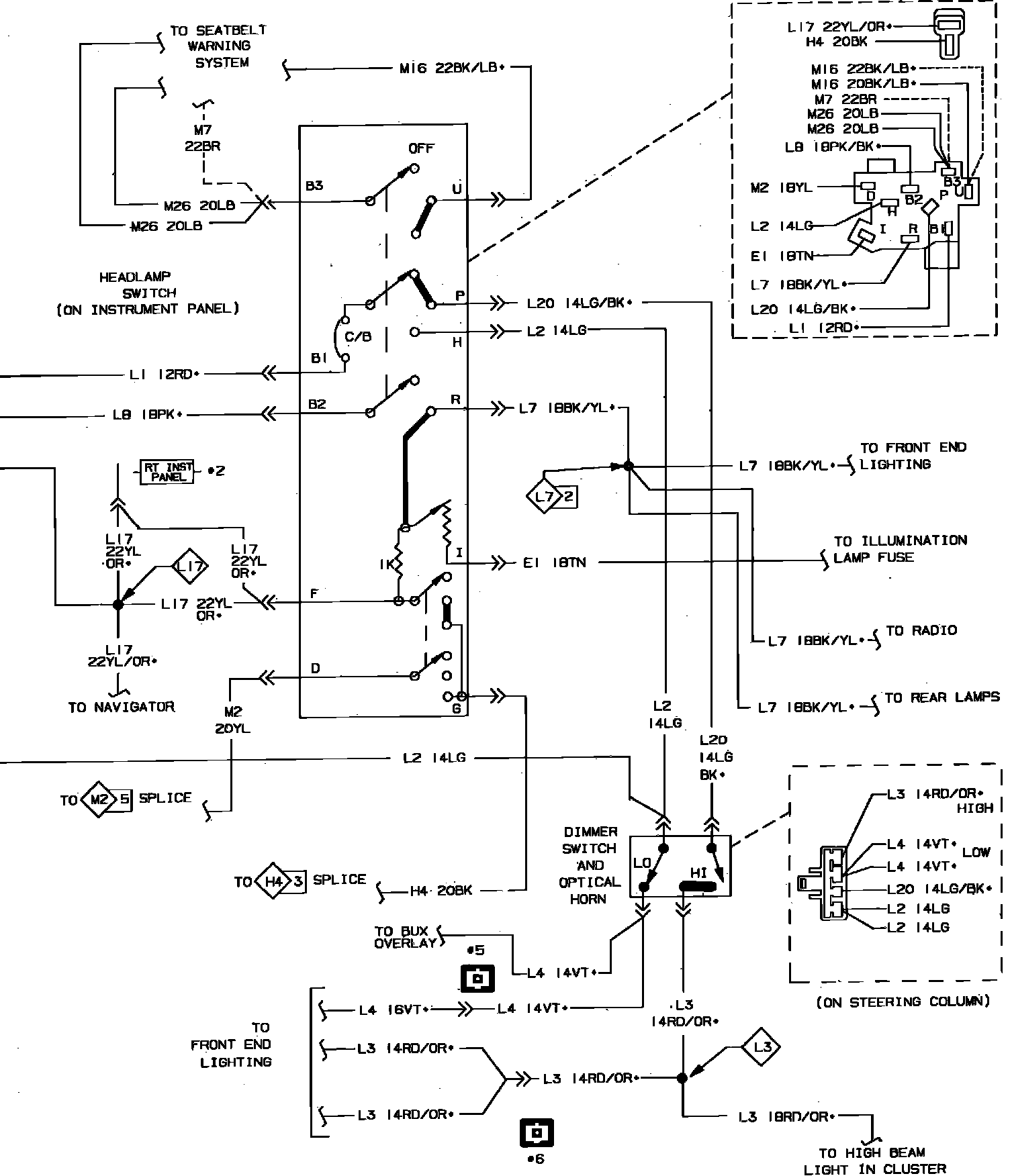

Fig. 35 Headlamp Switch & Horn System Wiring Circuit (Part 1 of 2):
Fig. 35 Headlamp Switch & Horn System Wiring Circuit (Part 2 of 2):
