Power Door Lock System Wiring Circuit
>>
Part 1 of 2
Part 1 of 2

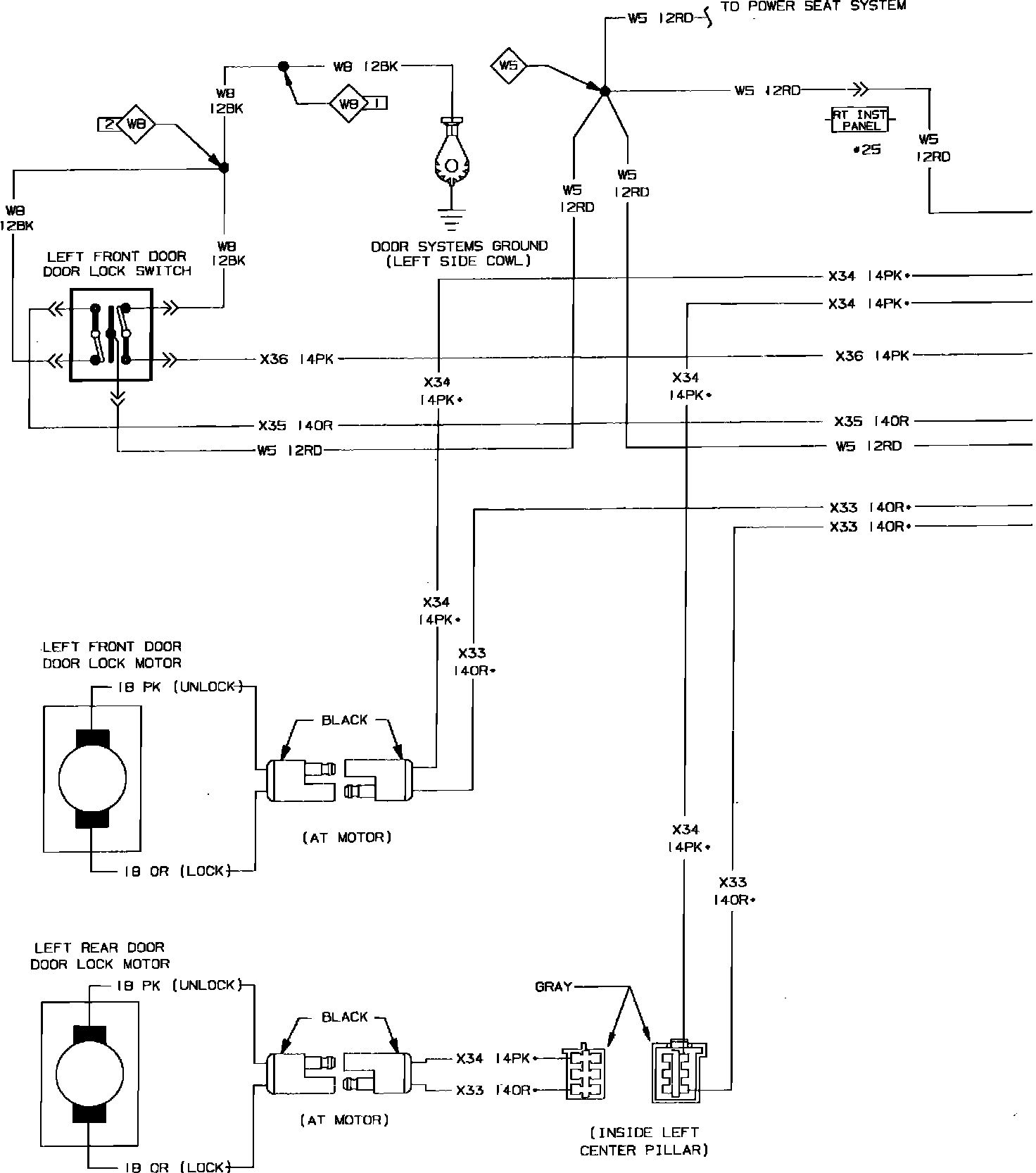

Fig. 47 Power Door Lock Wiring Circuit (Part 1 of 2):
