Dodge
>>
1987
>>
Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
System Diagram
>>
Left Side
>>
Terminal End
Terminal End

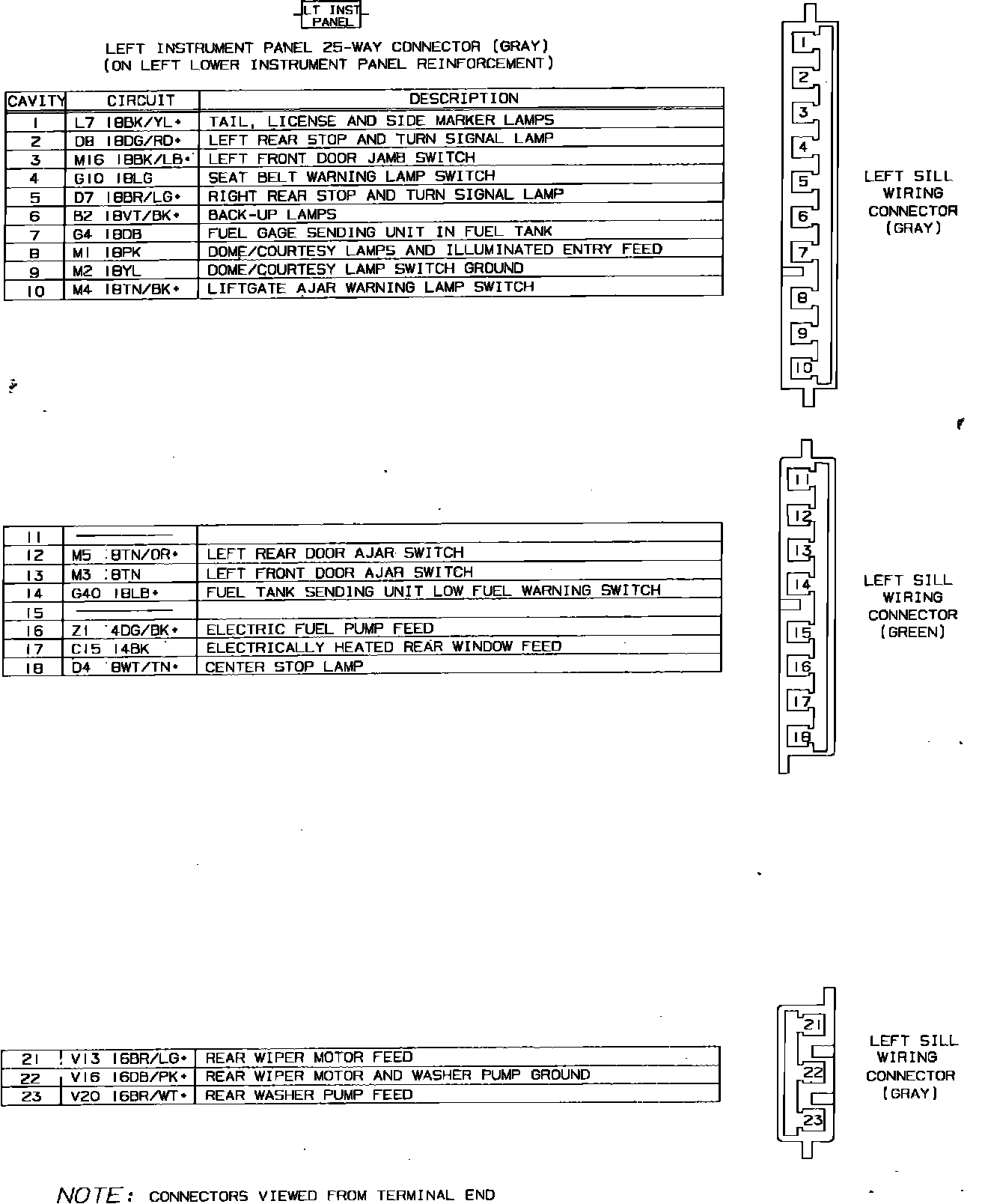

Fig. 6 Instrument Panel To Body Connector. Terminal End (Left Side):
