Home >> Dodge >> 1987 >> Lancer L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition Switch/System >> Part 1 of 5

Part 1 of 5

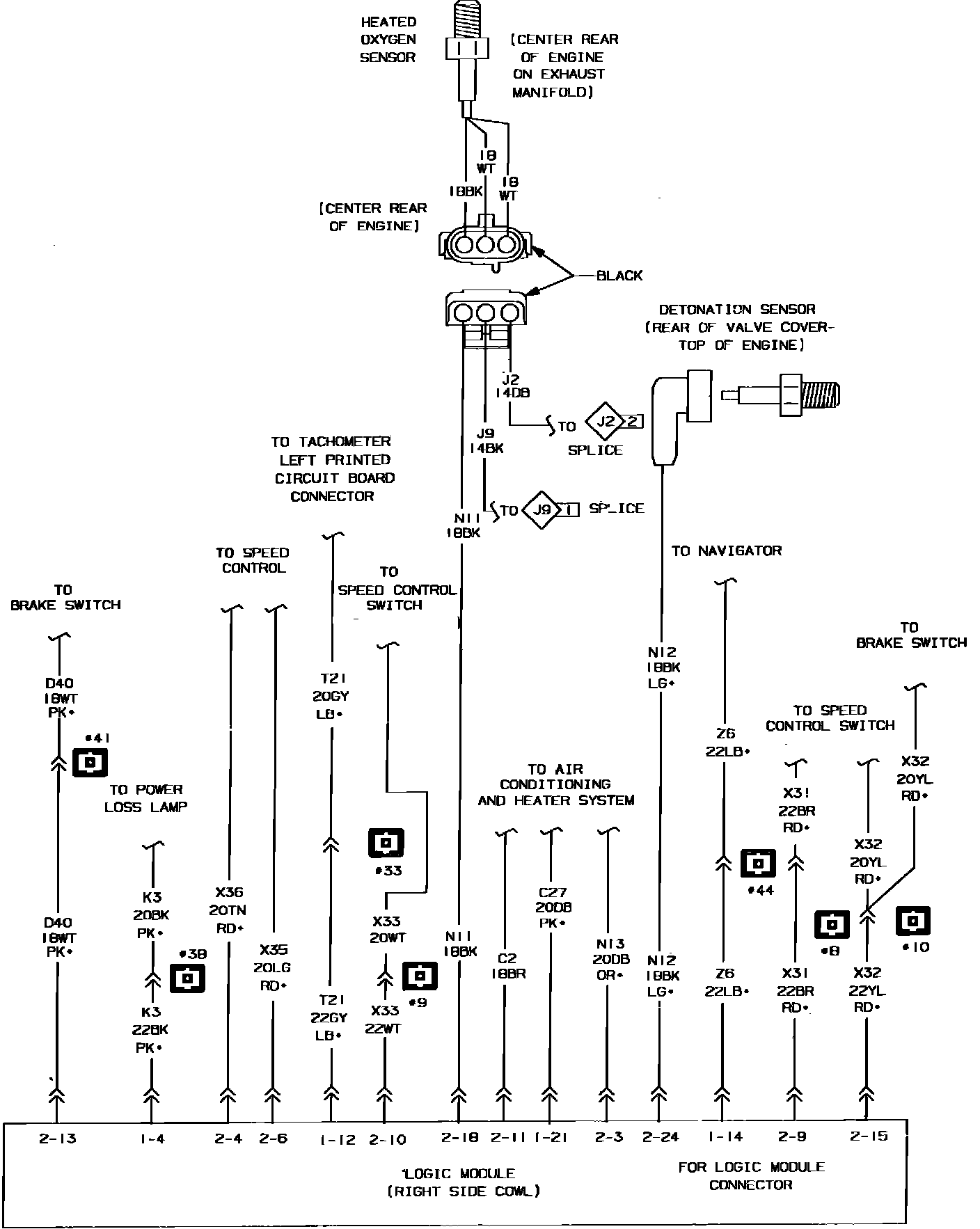

Fig. 40 Ignition System Wiring Circuit (Part 1 of 5). With Turbo:
