Accessory Delay Module
>>
Seat Belt
Seat Belt

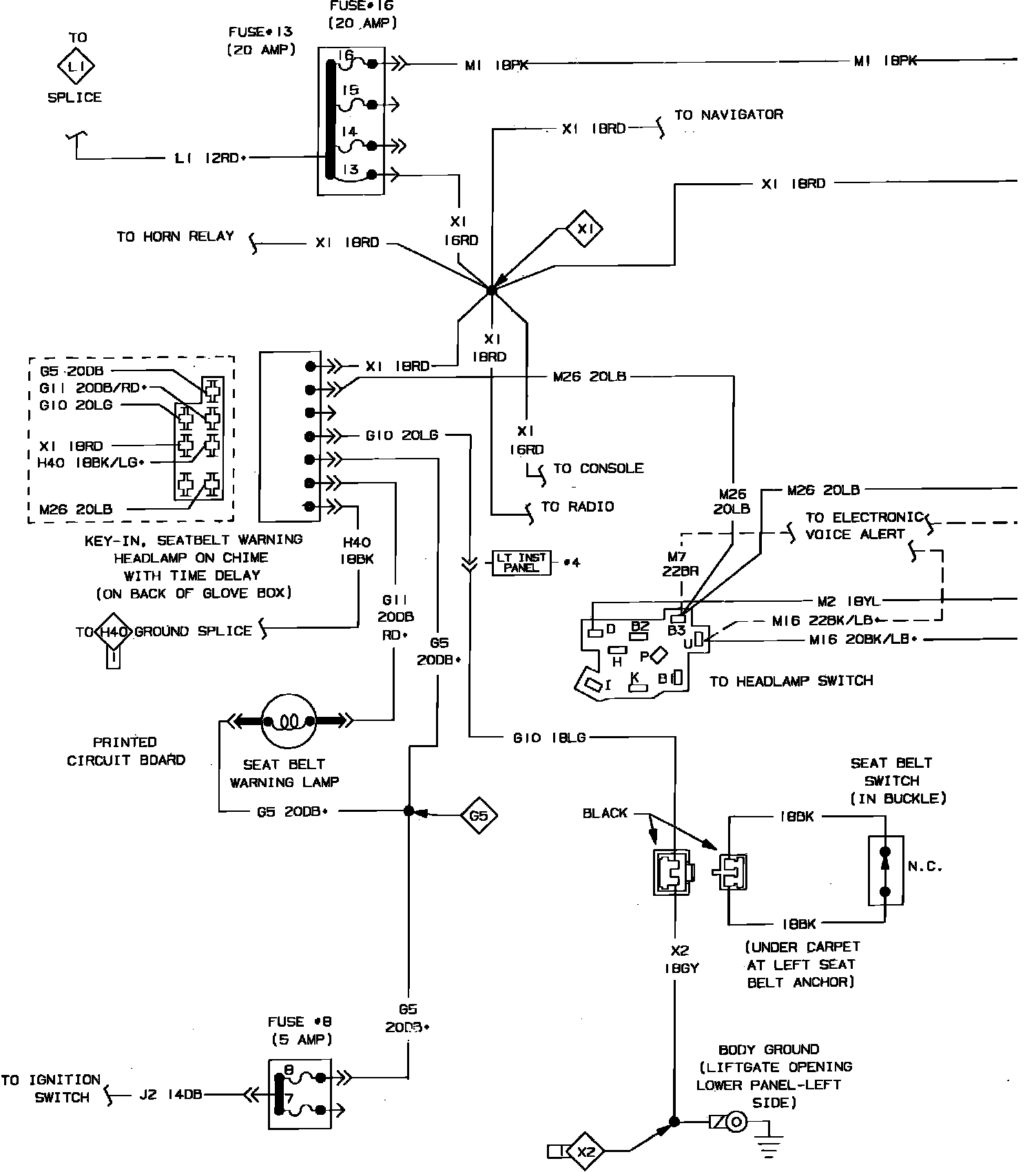

Fig. 25 Courtesy, Dome Lamp & Seat Belt Warning Wiring Circuit Seat Belt:
