7A Resistance of Distributor Pickup Coil
7A Resistance of Distributor Pickup Coil

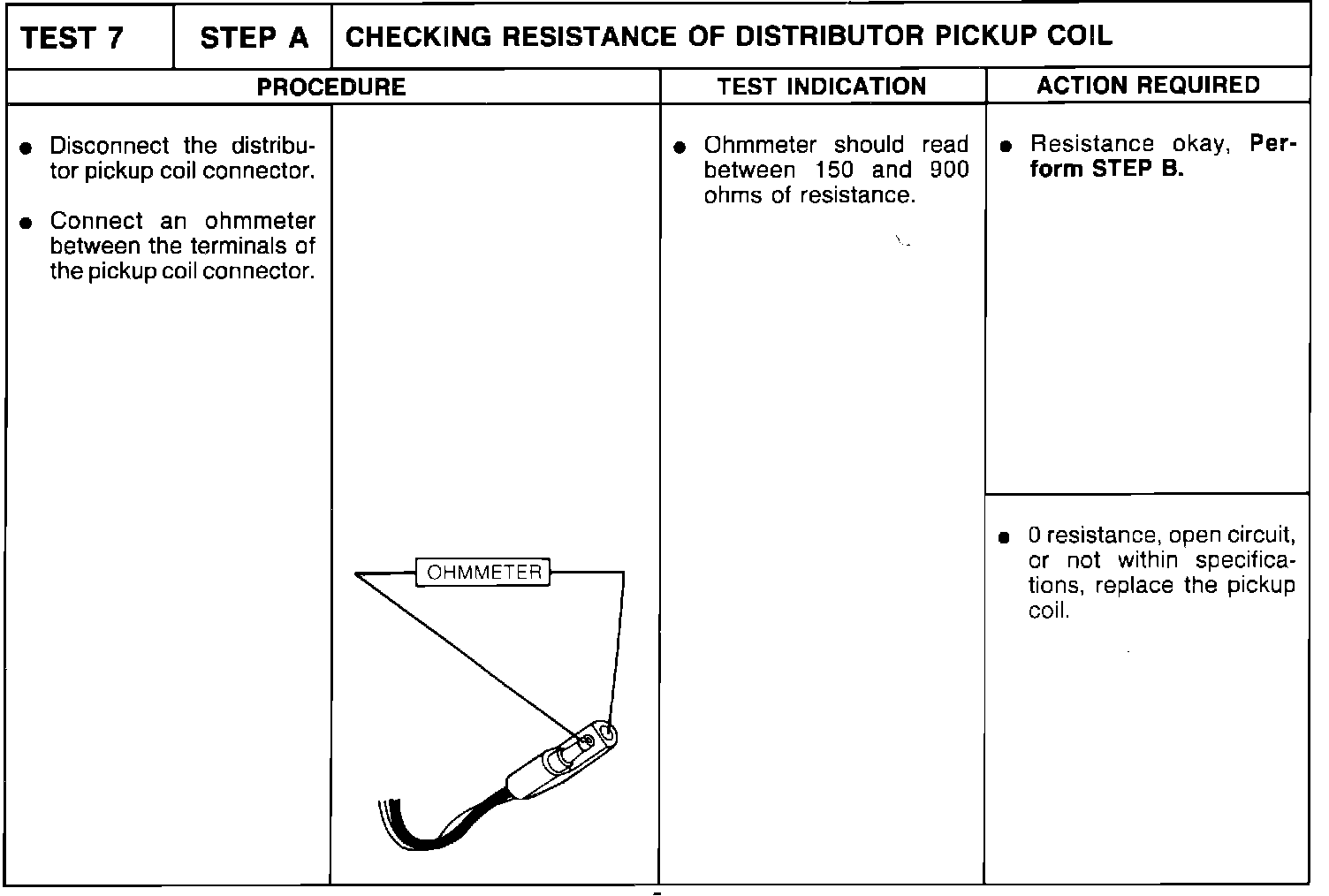

Test 7-Step A, Resistance Of Distributor Pickup Coil:
