5B Checking Ignition Coil Wire
5B Checking Ignition Coil Wire

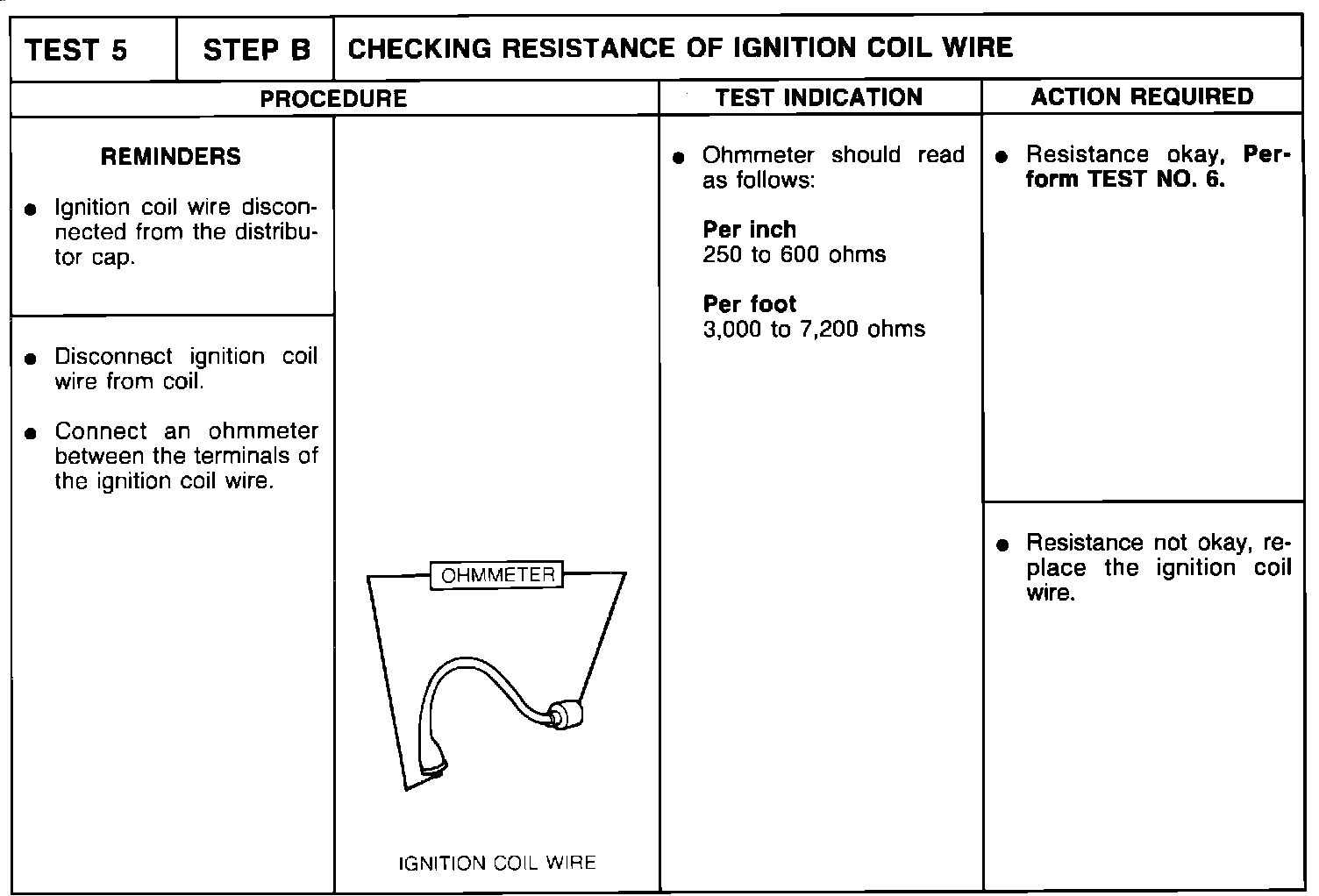

Test 5-Step B, Resistance Of Ignition Coil Wire:
