Heated Rear Window Wiring Circuit

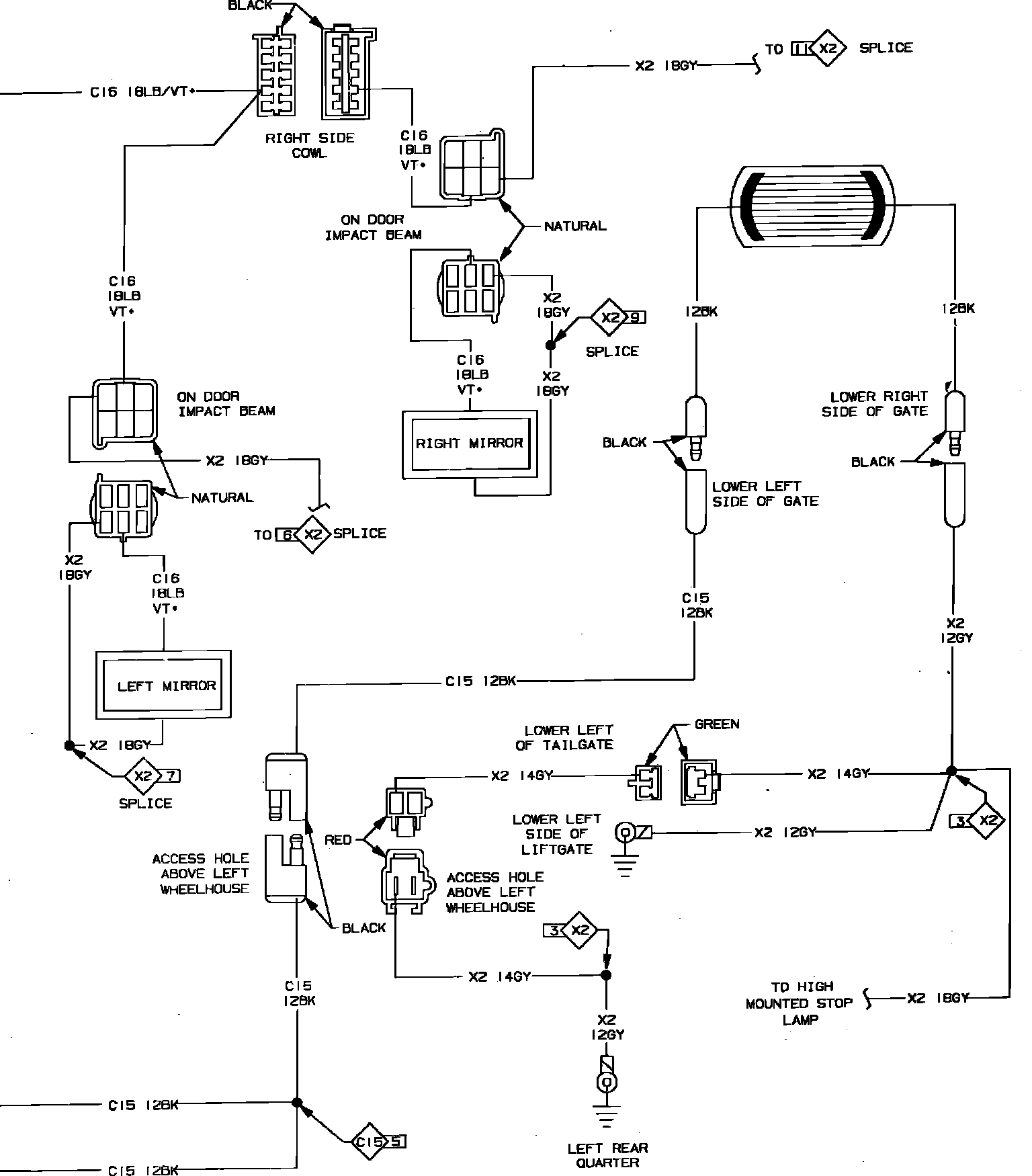

Fig. 30 Heated Mirrors & Rear Window Wiring Circuit (Part 1 of 2):

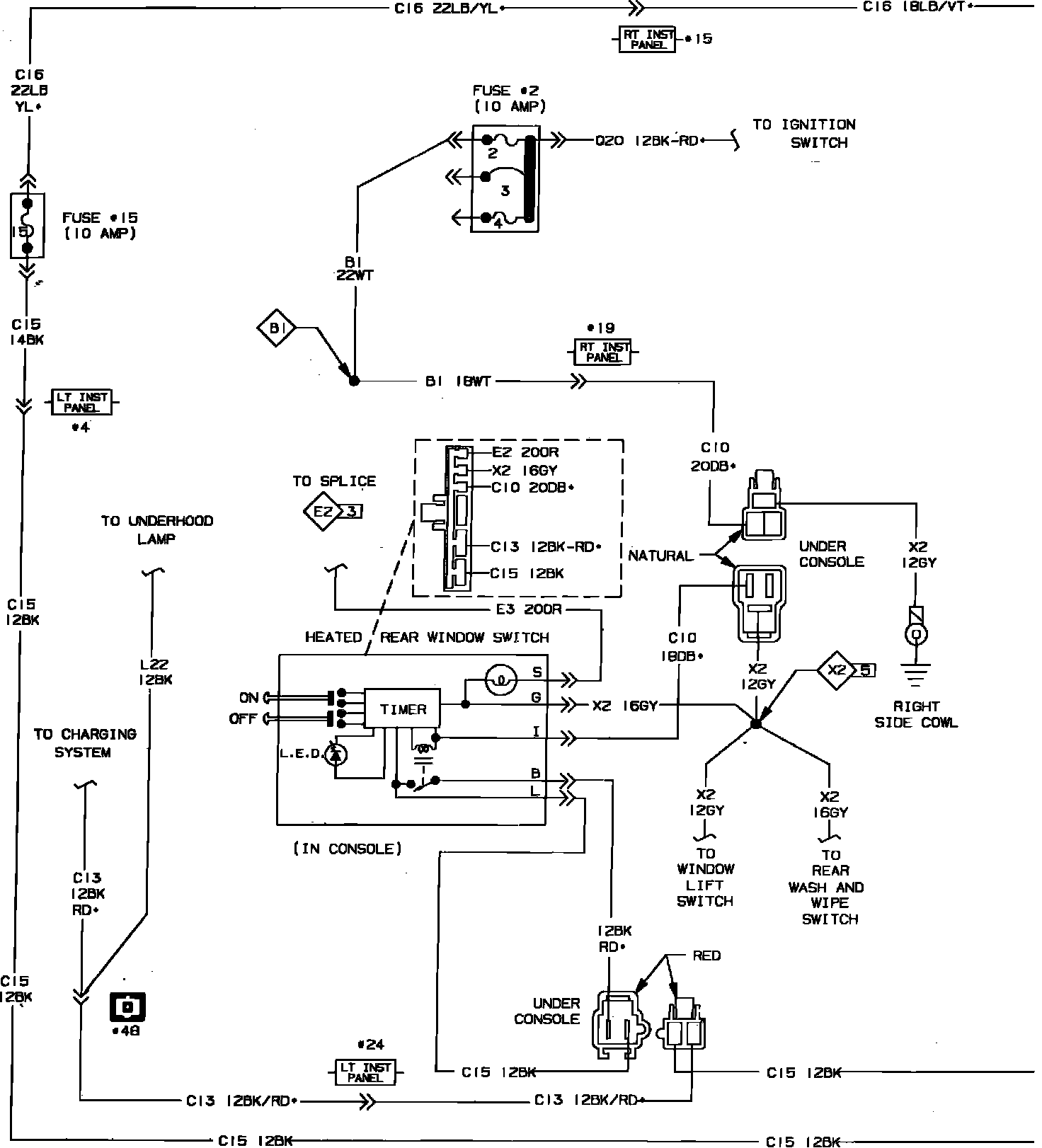

Fig. 30 Heated Mirrors & Rear Window Wiring Circuit (Part 2 of 2):
