Home
>>
Dodge
>>
1987
>>
Daytona L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Brake Switch (Cruise Control)
Brake Switch (Cruise Control)

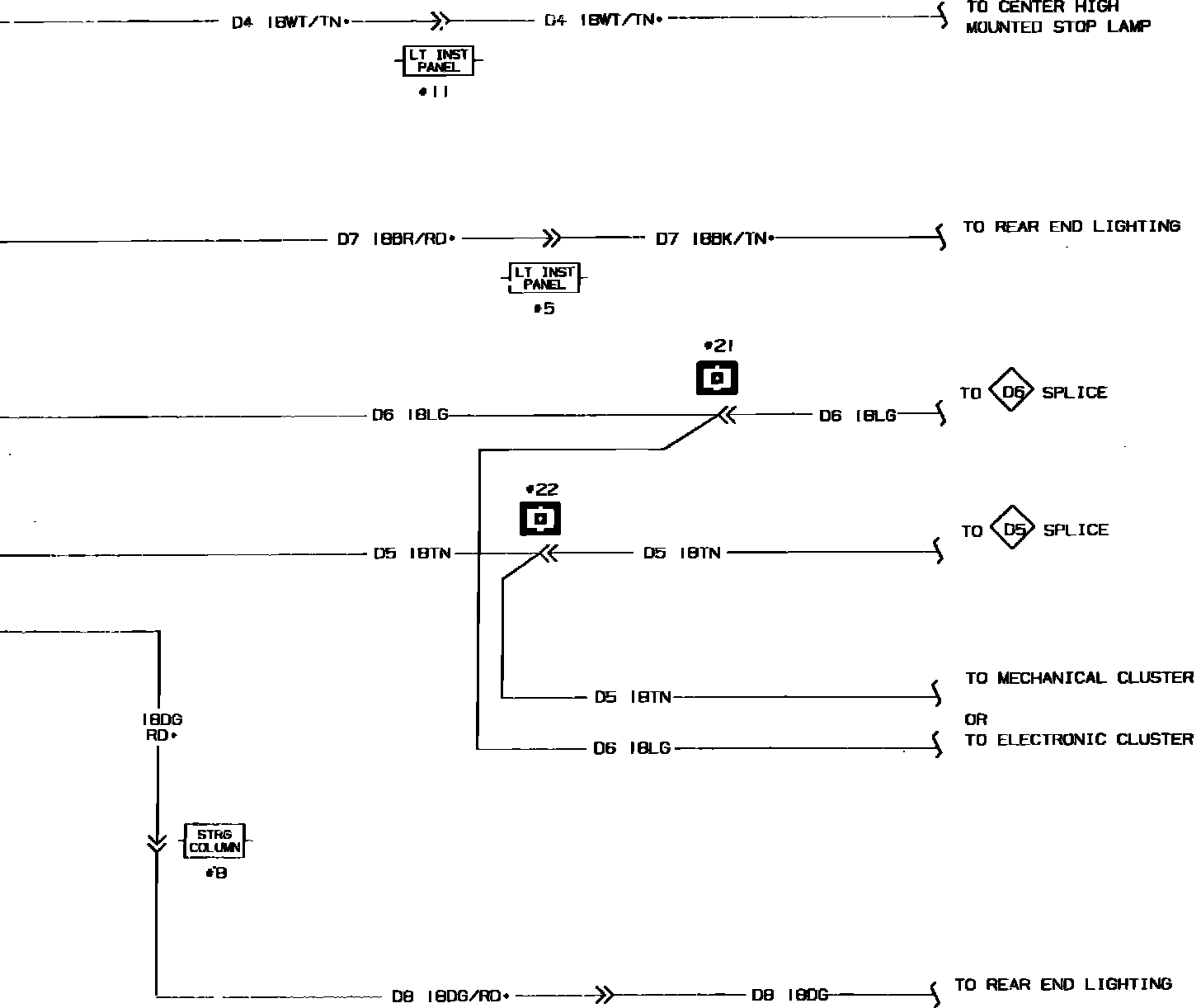

Fig. 28 Hazard & Turn Flasher Systems Wiring Circuit (Part 1 of 2):
Fig. 28 Hazard & Turn Flasher Systems Wiring Circuit (Part 2 of 2):
