Dodge
>>
1987
>>
Daytona L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

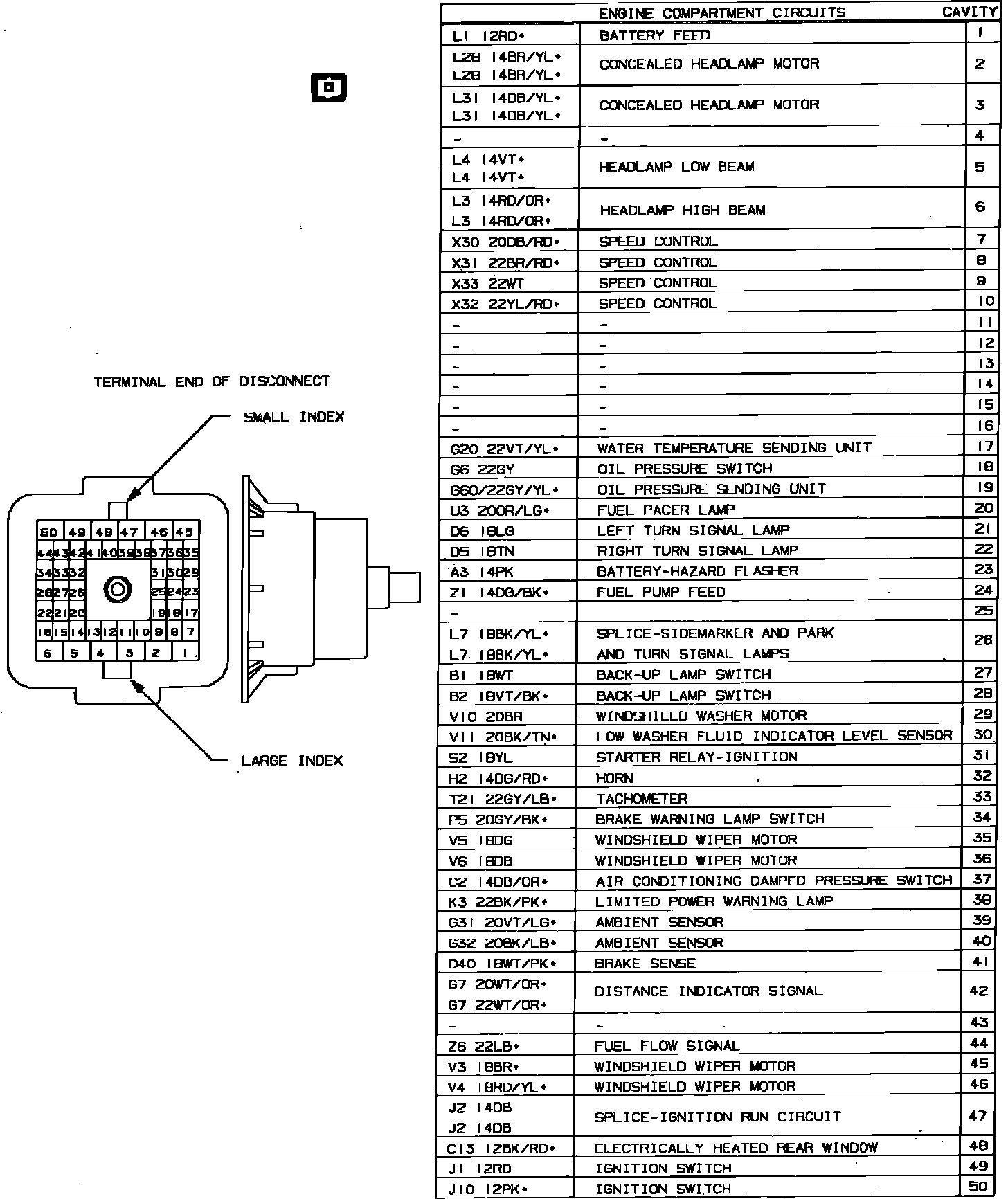

Fig. 7 Bulkhead Connector (Part 1 of 2):
