Home >> Dodge >> 1987 >> Daytona L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram >> Right Side >> Part 2 of 2

Part 2 of 2

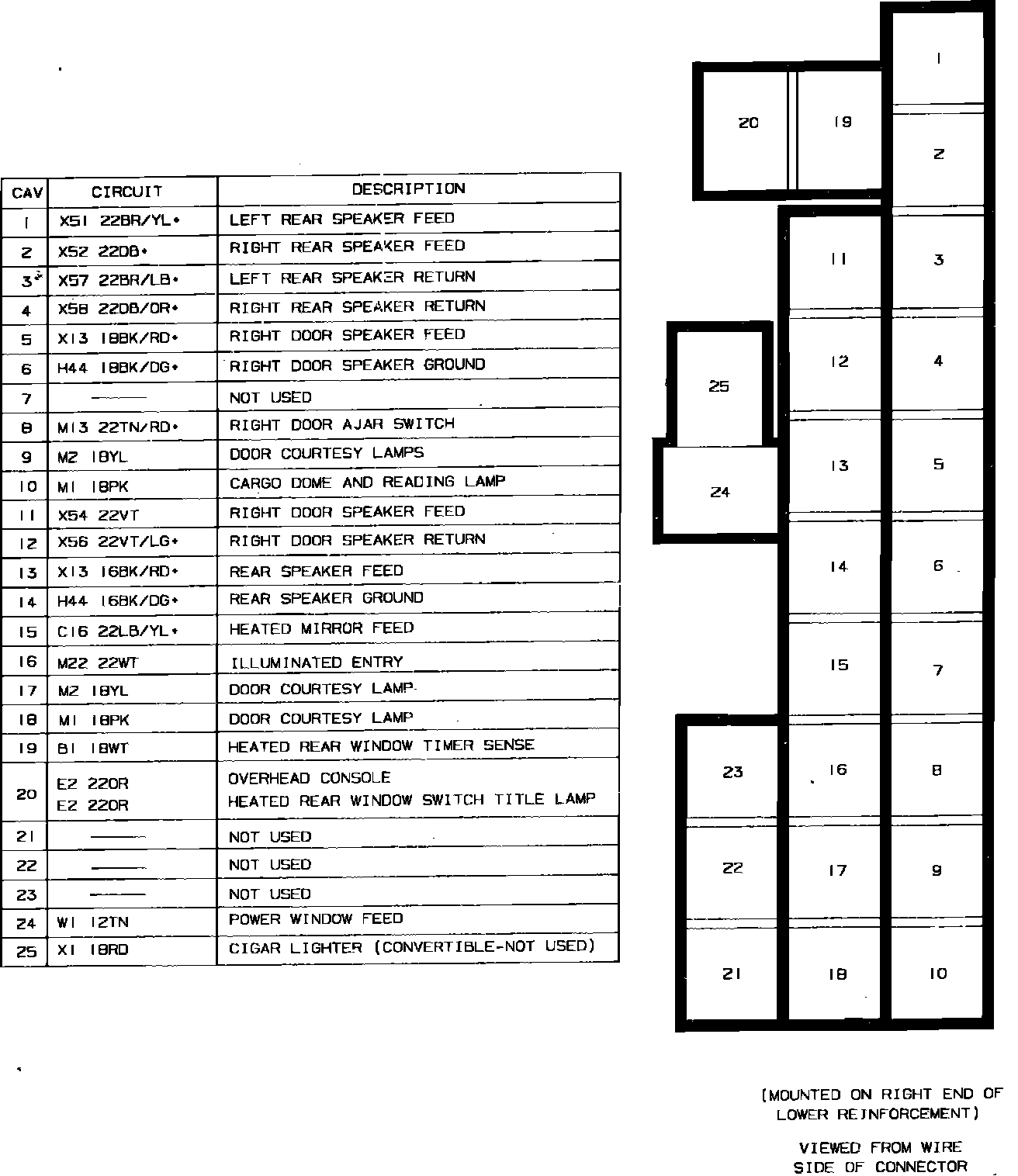

Fig. 6 Body To Instrument Panel Connectors Right Side (Part 2 of 2):
