Home >> Dodge >> 1987 >> Daytona L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram >> Left Side >> Part 1 of 2

Part 1 of 2

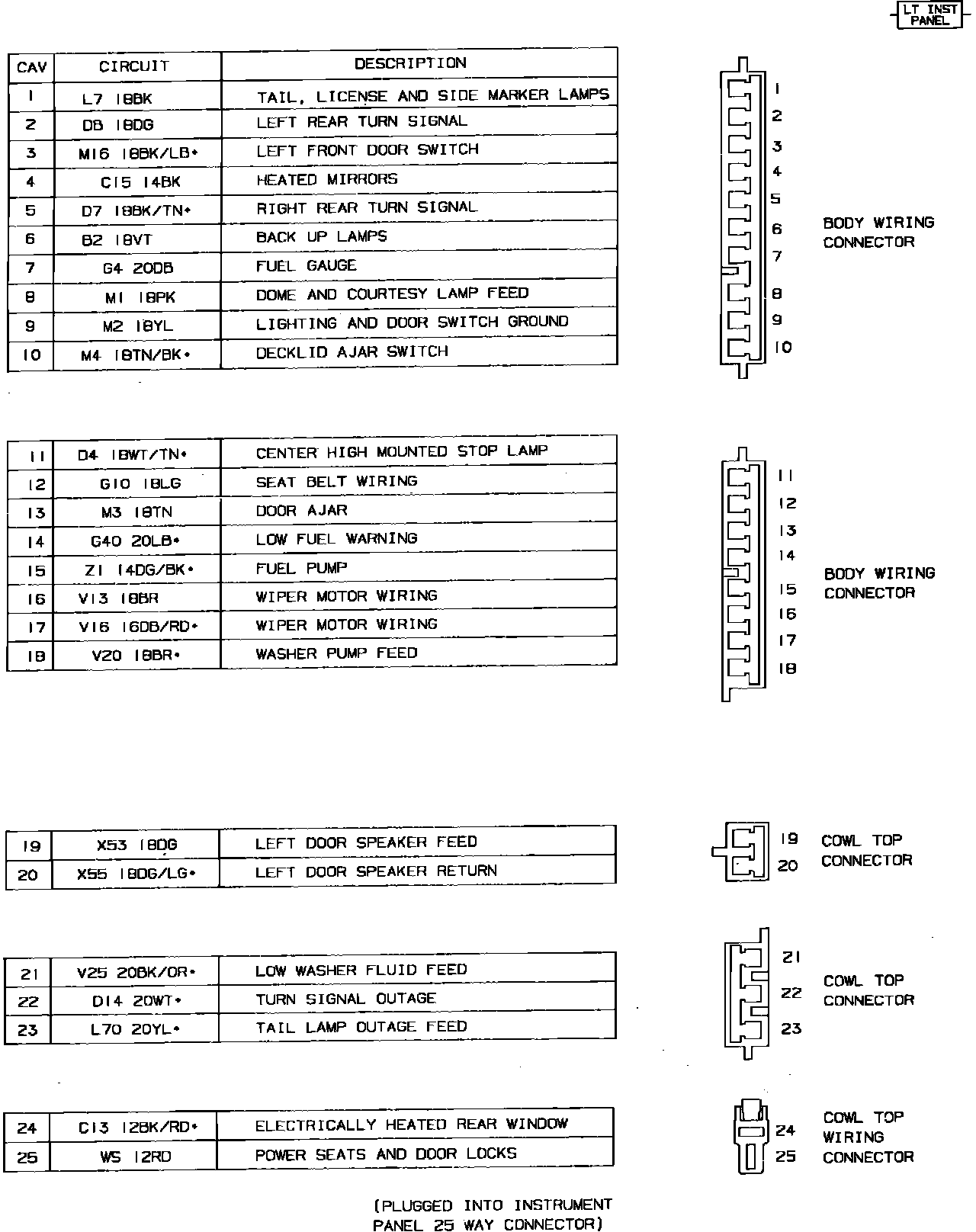

Fig. 5 body To Instrument Panel Connectors. Left Side (Part 1 of 2):
