Dodge
>>
1987
>>
Daytona L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
>>
Right Side
Right Side

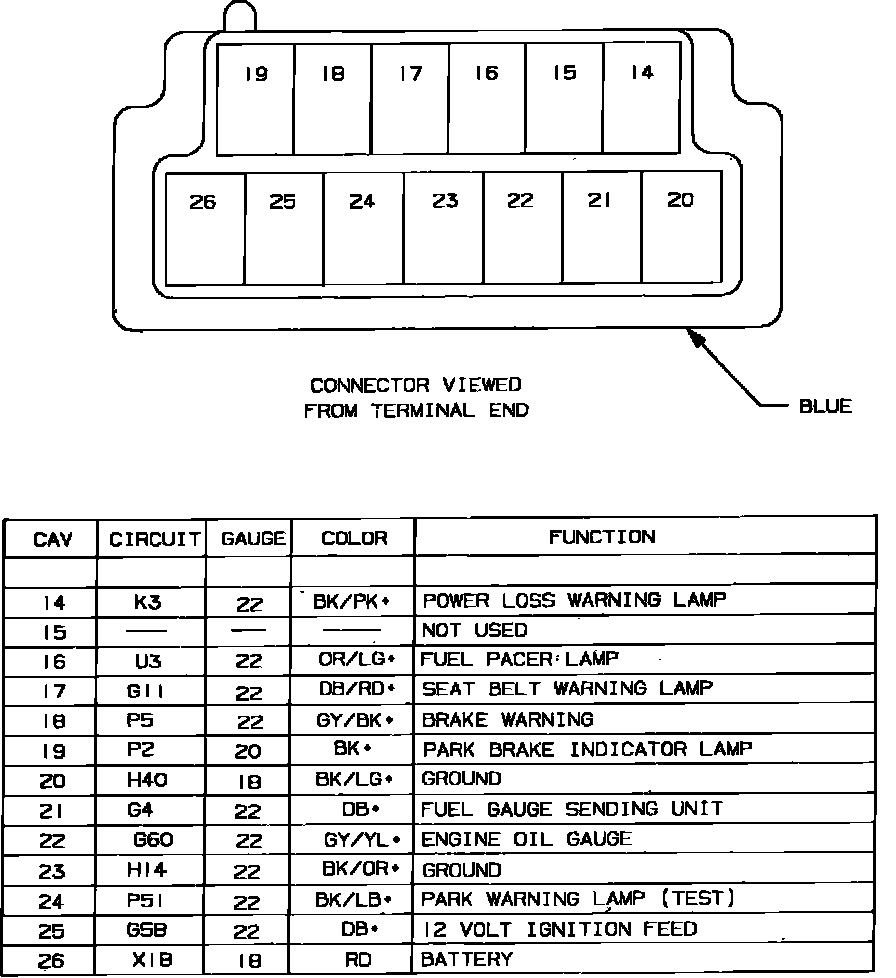

Fig. 14 Printed Circuit Board Connector (Electronic Cluster). Right Side:
