Fuel Pressure Solenoid - Specification Revision

87chrysler11

Models


1987 NF45Z (Colt Vista)


Subject


Fuel Pressure Solenoid Resistance Specification Correction - Service Manual Revision


Index


FUEL


Date

April 6, 1987

No.


14-03-87 (C4-14)

P-1159

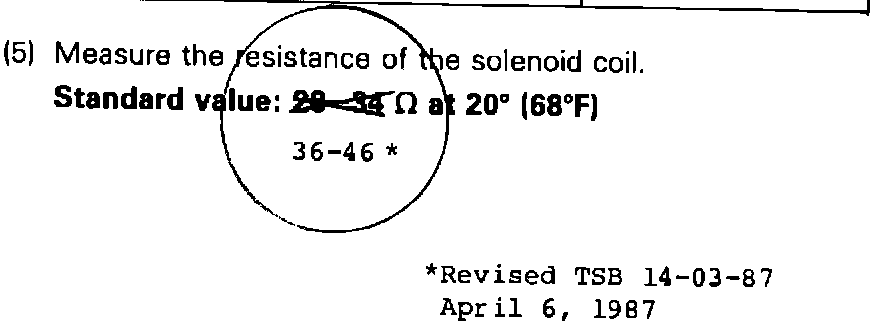

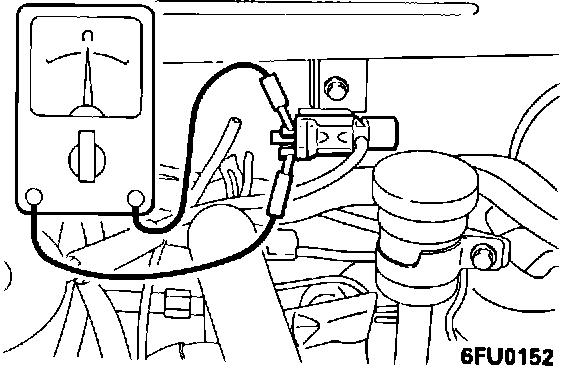

This bulletin is being issued to correct the resistance value of the fuel pressure solenoid valve. The old value was 28-34 ohms. This has been revised to 36-46 ohms.


Note this change (shown on reverse side) on page 14-60, Step

5 of your 1987 Colt Vista Service Manual, publication

#81-270-7012.


POLICY: Information only









(4) Apply negative pressure (vacuum) so as to check airtightness when voltage is applied from the battery directly to the solenoid valve terminal, and when the voltage is discontinued.

Battery voltage Other nipple of Normal reaction
solenoid valve

Open Negative pressure
When discontinued leaks

Covered by finger Negative pressure
is maintained

When applied Open Negative pressure
is maintained



CHECKING POWER TRANSISTOR N14RCGA

(1) Detach the power transistor connector.

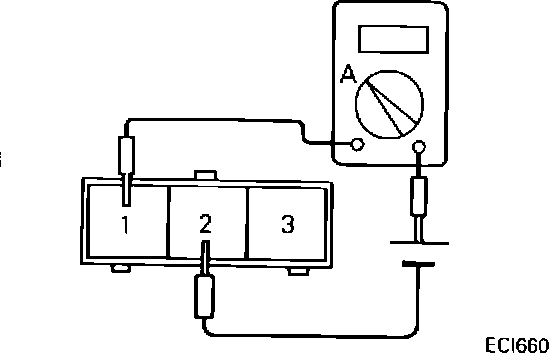

(2) Check to be sure that electricity flows when a voltage of 1.5 V is applied between power transistor terminals (1)-(2).

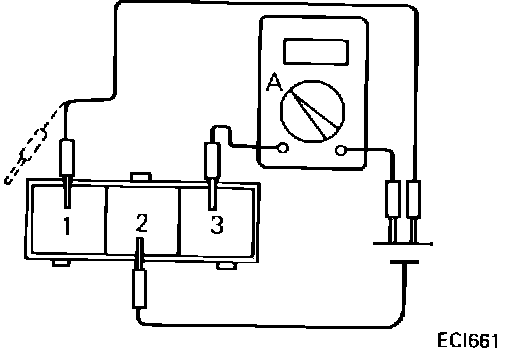

(3) Check whether or not electricity flows when a voltage of 1.5 V is applied between power transistor terminals (3)-(2).


Terminal (1) voltage Between terminals (3) - (2)

When applied (solid line) Electricity flows

When discontinued (broken line) No electricity flows
