Home
>>
Dodge
>>
1987
>>
Colt Vista 2WD L4-1997cc 2.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Technical Service Bulletins
>>
All Technical Service Bulletins
>>
Driveability - Troubleshooting, Manual Revisions
>>
20ECI-Multi-Electrical Wiring Diagram
20ECI-Multi-Electrical Wiring Diagram

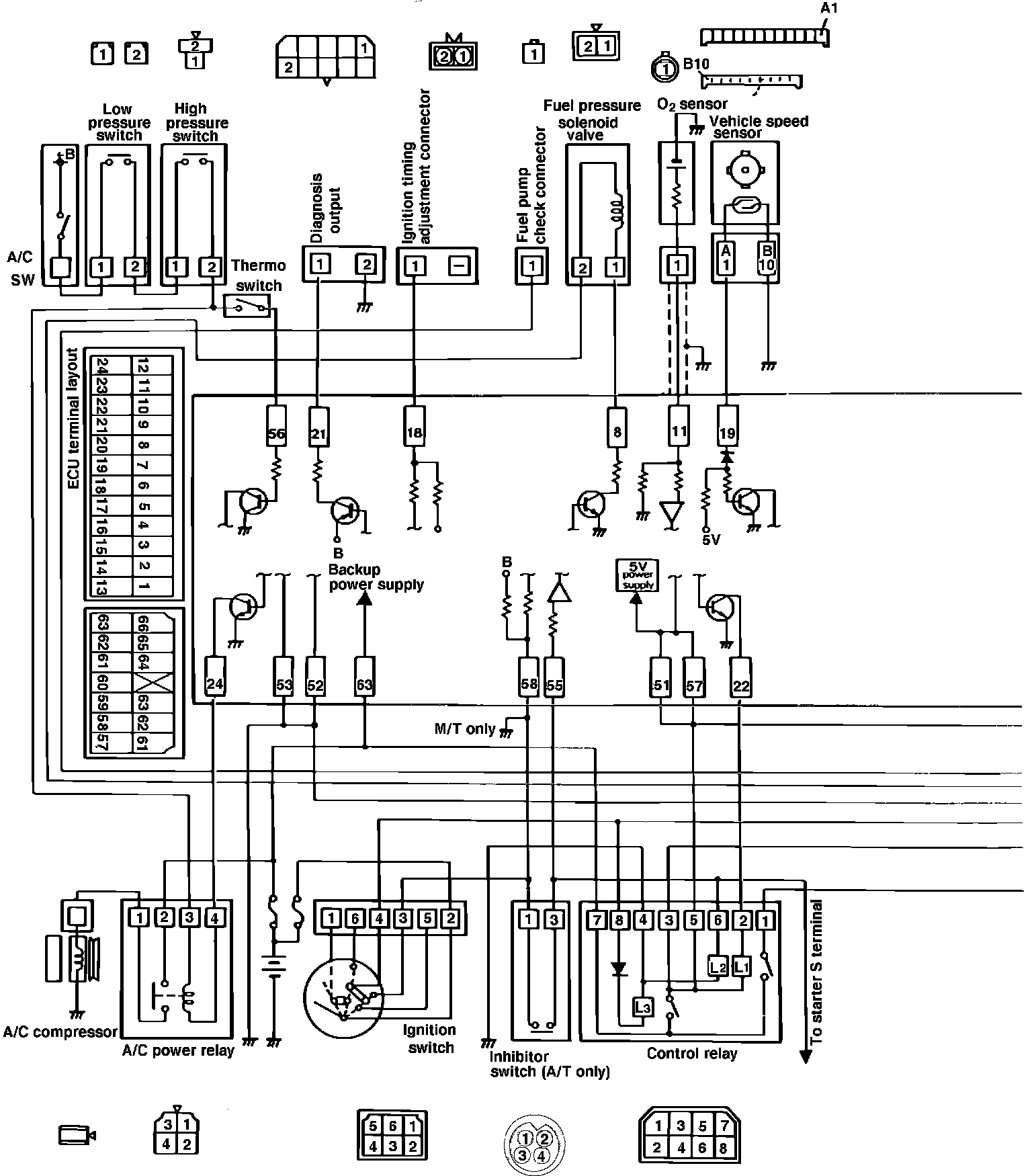

Electrical Wiring diagram
Publication #81-699-7033 Revised TSB 14-08-88
September 6, 1988
