Dodge
>>
1987
>>
Colt Vista 2WD L4-1997cc 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
With Fuel Injection
With Fuel Injection

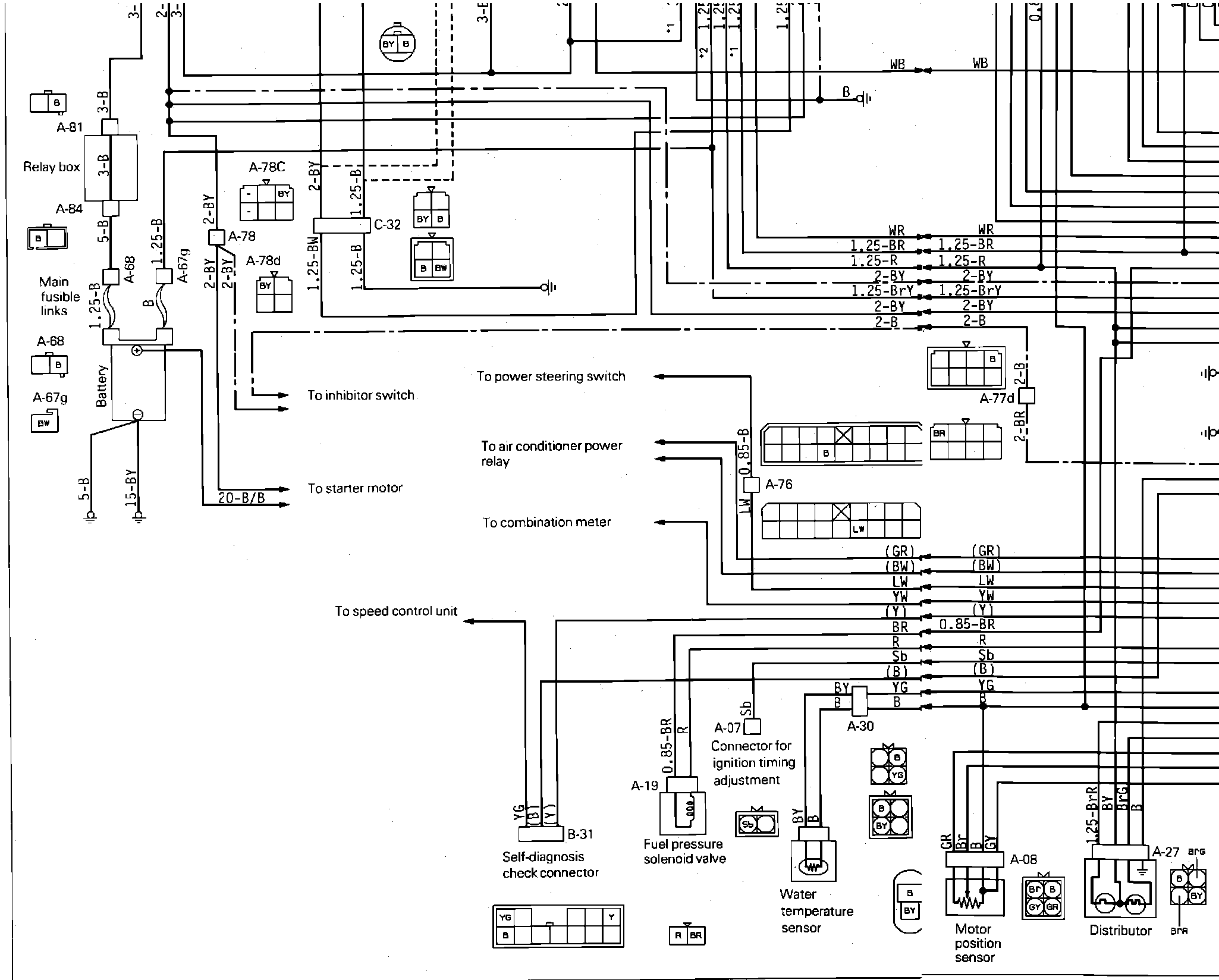

Z�Q3�R3�2R3Multi-Point Injection Wiring Circuit:
