Radio - Poor Reception/Static/Noise

87chrysler13

Models


1987 Colt


Subject


Poor Radio Reception


Index


ELECTRICAL


Date

January 26, 1987

No.


08-03-87 (C4-08)

P-0219
SYMPTOM/CONDITION

Poor radio reception, intermittent reception, static, or noise from radio..

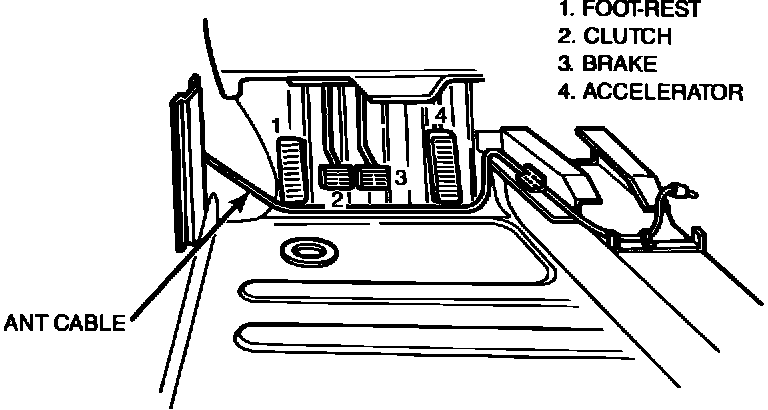

FIGURE 1:

DIAGNOSIS

1. Check for antenna cable routing. Improper routing, below pedals as shown in Figure 1, may cause internal damage to cable.
2. Plug a known good antenna into the radio and verify radio now works correctly.
PARTS REQUIRED

1 Antenna Assembly PN MB314205

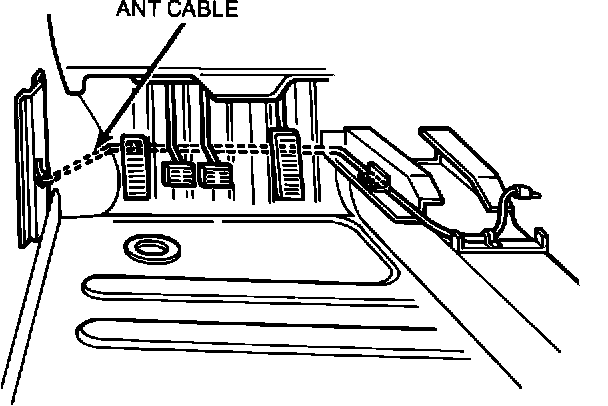

FIGURE 2:

REPAIR PROCEDURE

Replace the antenna assembly as outlined in the service manual. Figure 2 shows the proper routing for the antenna cable on the left side of the floor pan.
POLICY: Reimbursable within the provisions of the warranty


TIME ALLOWANCE: Refer to labor Operation Time Schedule for operation and time
