M/T - Gear Clashing While Shifting Gears

87chrysler5

Models


1987 "LA" (Colt) "NF45Z" (Colt Vista) Equipped With KM200 Transaxle


Subject


Double Gear Meshing (Gear Clashing) While Shifting Gears


Index


TRANSMISSION

Date


September 21, 1987

No.


21-12-87 (C15-21)

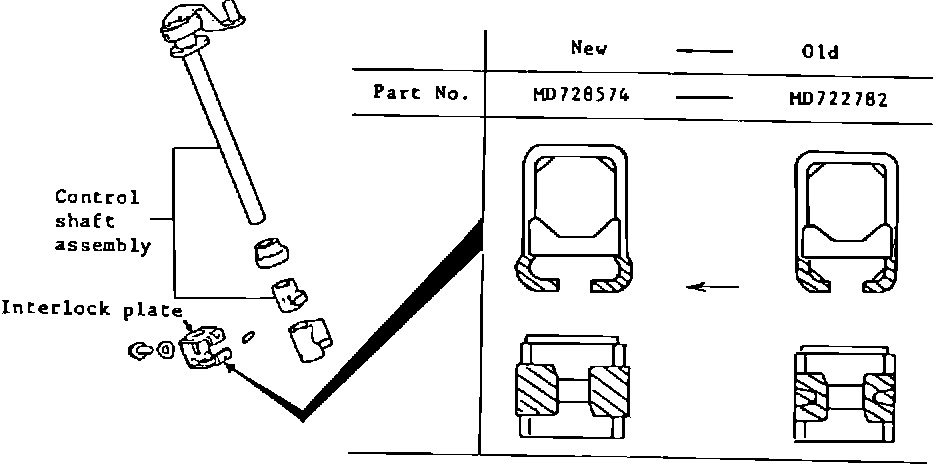

FIGURE 1:

SYMPTOM/CONDITION

Double gear meshing on subject model vehicles when shifting. A new revised interlock plate has been used in production since February 4, 1987, effective with transaxle No. DY3920, and is interchangeable in previously built transaxles (Figure 1).
PARTS REQUIRED

1 Interlock Plate PN MD728574

REPAIR PROCEDURE

This procedure requires the replacement of the interlock plate. Refer to appropriate service manual for proper replacement procedure.
POLICY: Reimbursable within the provisions of the warranty


TIME ALLOWANCE: Use existing Labor Operation Time Schedule for operation and time


FAILURE CODE: K8 - Shift Linkage Defect
