M/T Clutch Housing - Lock Pin, Manual Revision

87chrysler9

Models


1987 LA (Colt)


Subject


Lock Pin Removal & Installation - Service Manual Correction


Index


TRANSMISSION


Date

March 23, 1987

No..


21-05-87 (C6-21)

P-1000
Incorrect specifications in the 1987 Colt Service Manual, Volume 1 (publication #81-270-7011), require correction. The three pages involved are as follows:

Group 21 - Transmission - Page 21-71

Item 6 should read "Lock Pin" instead of "Spring Pin."

Group 21 - Transmission - Page 21-72

^ Service Points of Disassembly #6 should read:

6. REMOVAL OF LOCK PIN

Drive out the lock pin from the control finger using special tool or a pin punch.

Caution:

When removing the lock pin, turn the control lever to a position where the lock pin will not contact the clutch housing.

^ Service Points of Reassembly #7.6. should read:

7.6. INSTALLATION OF SPRING PIN AND LOCK PIN

(1) Install new spring pin and lock pin using the special tool.

Caution:

Do not reuse the spring pin.
Group 21 - Transmission - Page 21-73

(2) Install the spring pin with its slit at right angle to the control shaft center.

^ Modify illustration 201087 as shown.

NOTE: PLEASE PASTE, STAPLE, OR TAPE NEW PAGES IN PROPER PLACE.


POLICY: Information only
Revised TSB 21-05-87

March 23, 1987
MANUAL TRANSAXLE - Clutch Housing Assembly

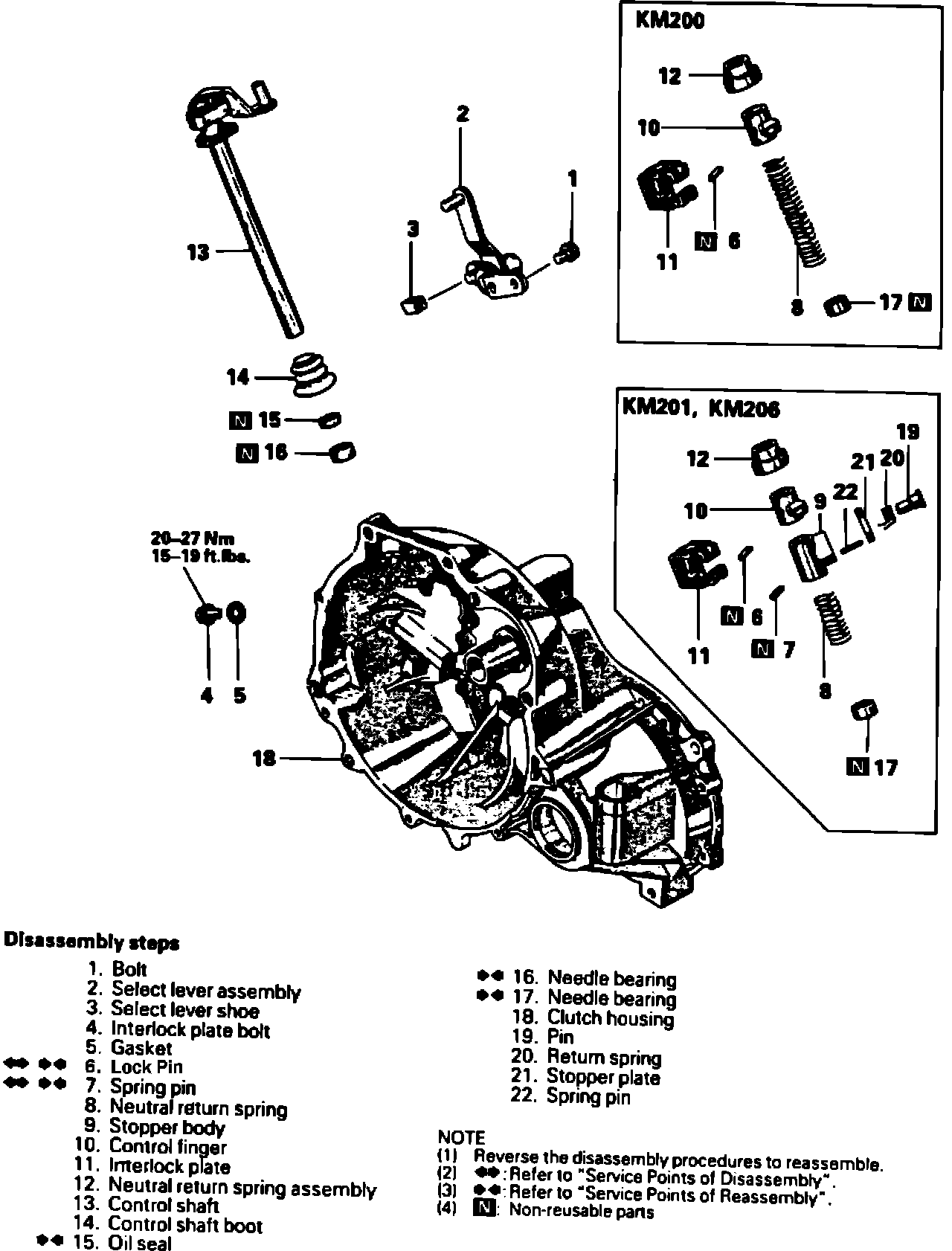

CLUTCH HOUSING ASSEMBLY

DISASSEMBLY AND REASSEMBLY
Revised TSB 21-05-87

March 23, 1987
21-72 MANUAL TRANSAXLE - Clutch Housing Assembly



SERVICE POINTS OF DISASSEMBLY

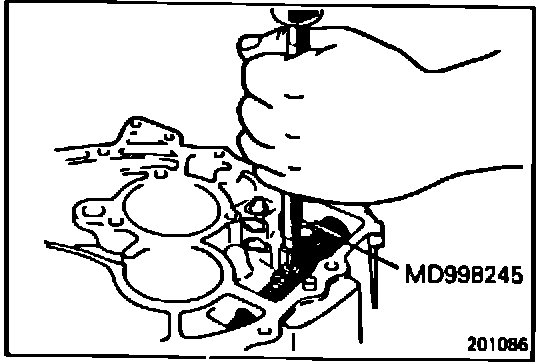

6. REMOVAL OF LOCK PIN

Drive out the lock pin from the control finger using the special tool or a pin punch.

Caution When removing the lock pin, turn the control lever to such position that the lock pin will not contact the clutch housing.

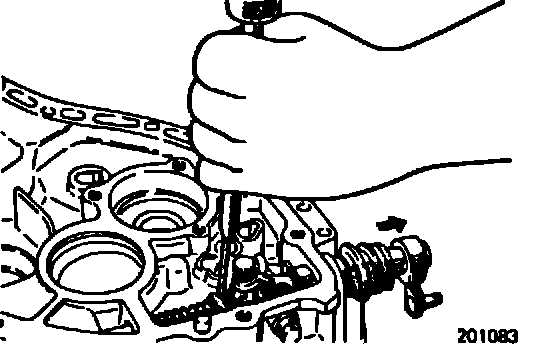

7. REMOVAL OF SPRING PIN - KM201, KM206

Drive out the spring pin from the stopper body using the special tool or a pin punch.

Caution When removing the spring pin, pull the control shaft in the direction lllustrated so that the spring pin will not contact the clutch housing.



SERVICE POINTS OF REASSEMBLY

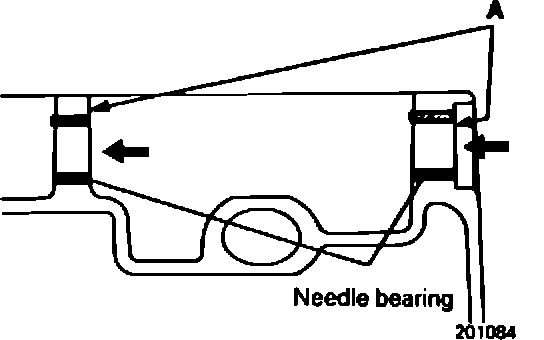

17. 16. INSTALLATION OF NEEDLE BEARINGS

Install the needle bearing flush with the surface A of the clutch housing.

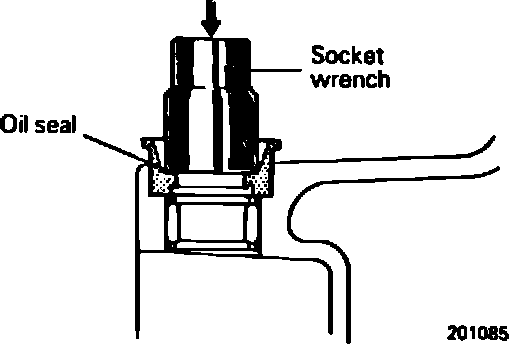

15. INSTALLATION OF OIL SEAL

Install the control shaft oil seal using a socket wrench.



7.6. INSTALLATION OF SPRING PIN AND LOCK PIN

(1) Install new spring pin and lock pin using the special tool.

Caution Do not reuse the spring pins.
Revised TSB 21-05-87

March 23, 1987
MANUAL TRANSAXLE - Clutch Housing Assembly

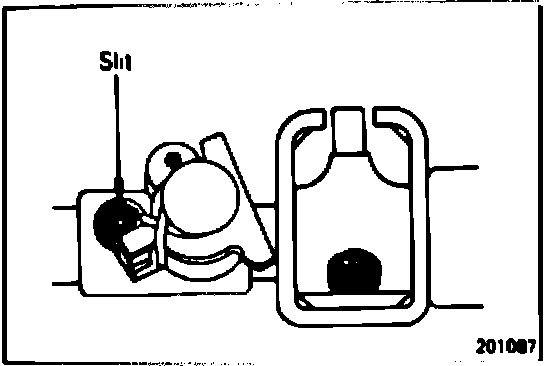

(2) Install the spring pins with their slit at right angle to the control shaft center.
