Dodge
>>
1987
>>
Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Canadian Models
Canadian Models

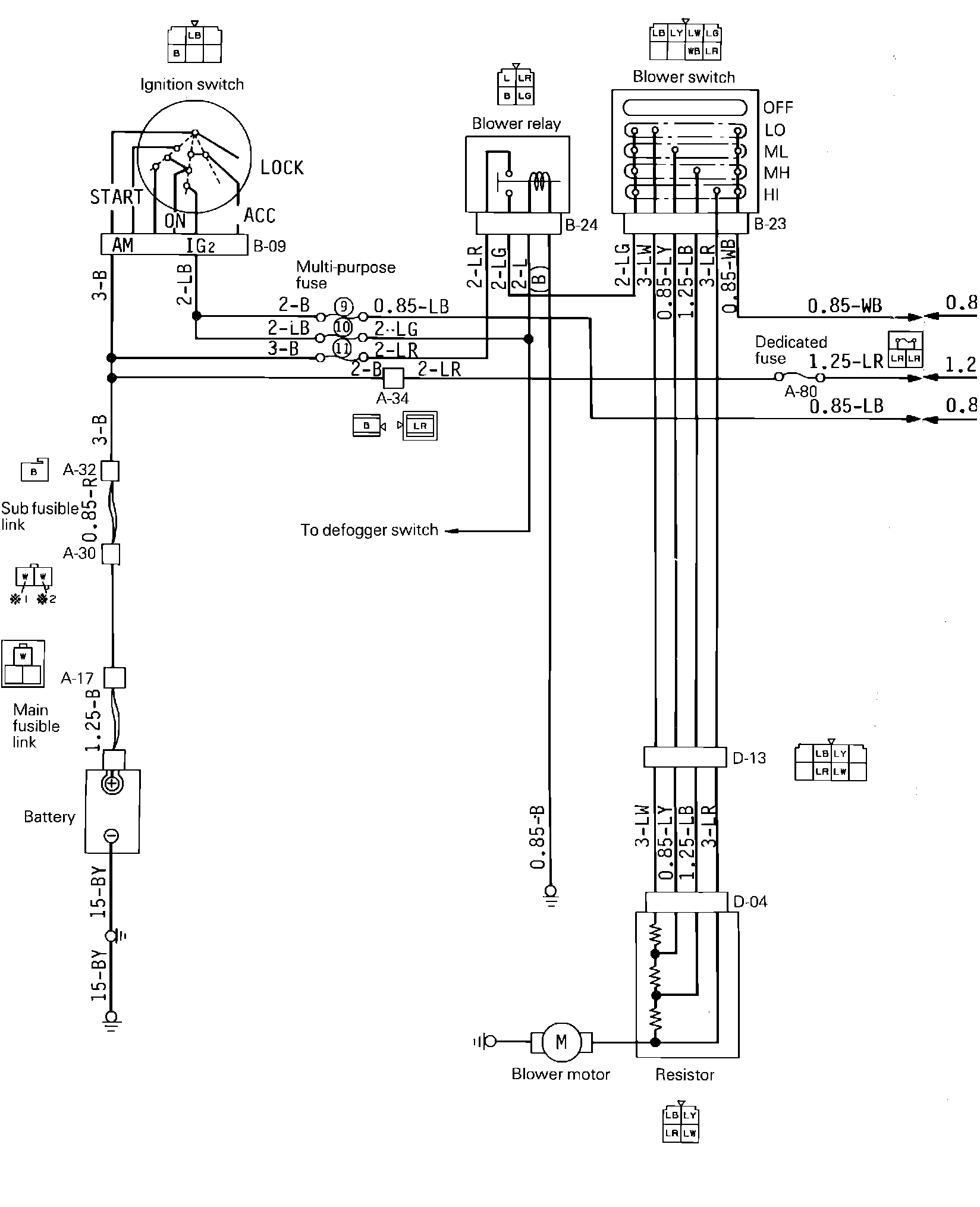

���AAir Conditioning System Wiring Circuit Canadian Models:
