Rocker Arm, Cam Bearing Cap, Cylinder Head - Changes

87chrysler5

Models


1987 "LA" (Colt) With 1.6L Engine


Subject


Rocker Arm, Cam Bearing Cap & Cylinder Head Assembly Changes


Index


ENGINE


Date

September 14, 1987

No.


09-07-87 (C7-09)

P-3379
A change in the cylinder head camshaft bearing cap, and the rocker arms on subject model vehicles equipped with 1.6L engines, will also change the positioning of the wave washer during assembly of the rocker arms to the cylinder head.

These modifications were effective in production on May 12, 1987, with engine #FK9798. The new cylinder head and rocker arms are not interchangeable with engines built prior to that date, unless the cylinder head and rocker arms are replaced as an assembly.

PARTS REQUIRED (Engines after FK9798)

1 Cylinder Head PN MD125062
1 Rocker Arms (Intake) PN MD125217
1 Rocker Arms (Exhaust) PN MD125218

SERVICE PROCEDURE

This procedure illustrates the correct positioning of the wave washer on the new cylinder head and rocker arm assembly.

1. Refer to appropriate service manual for proper procedure to remove rocker arms.

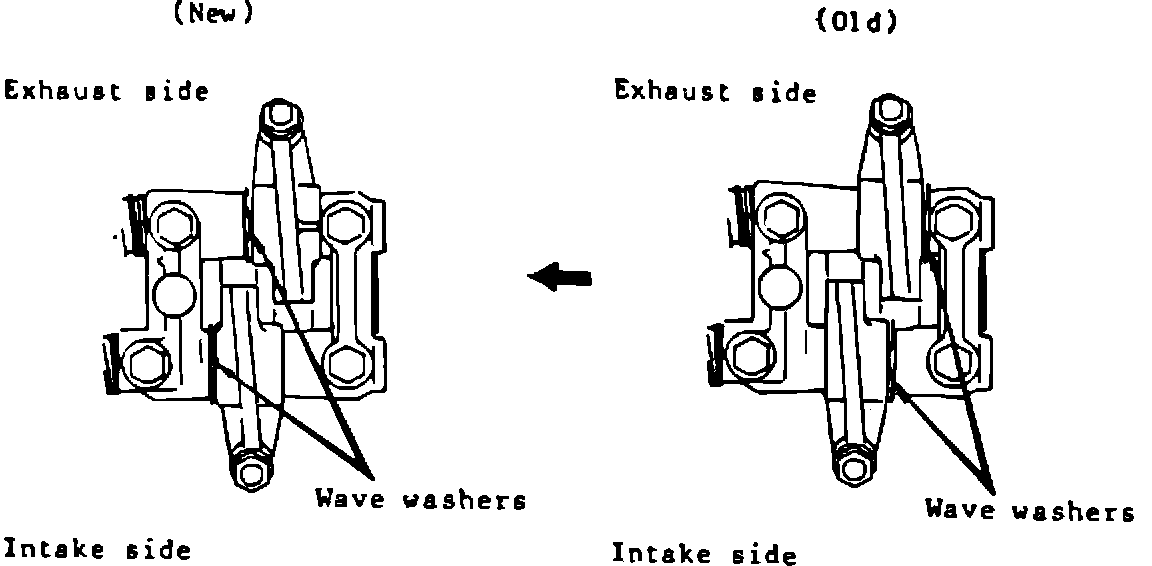

FIGURE 1:

2. Install new rocker arms with wave washer in position as indicated in Figure 1.
POLICY: Information only
