Dodge
>>
1987
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
With Intermittent Wiper
With Intermittent Wiper

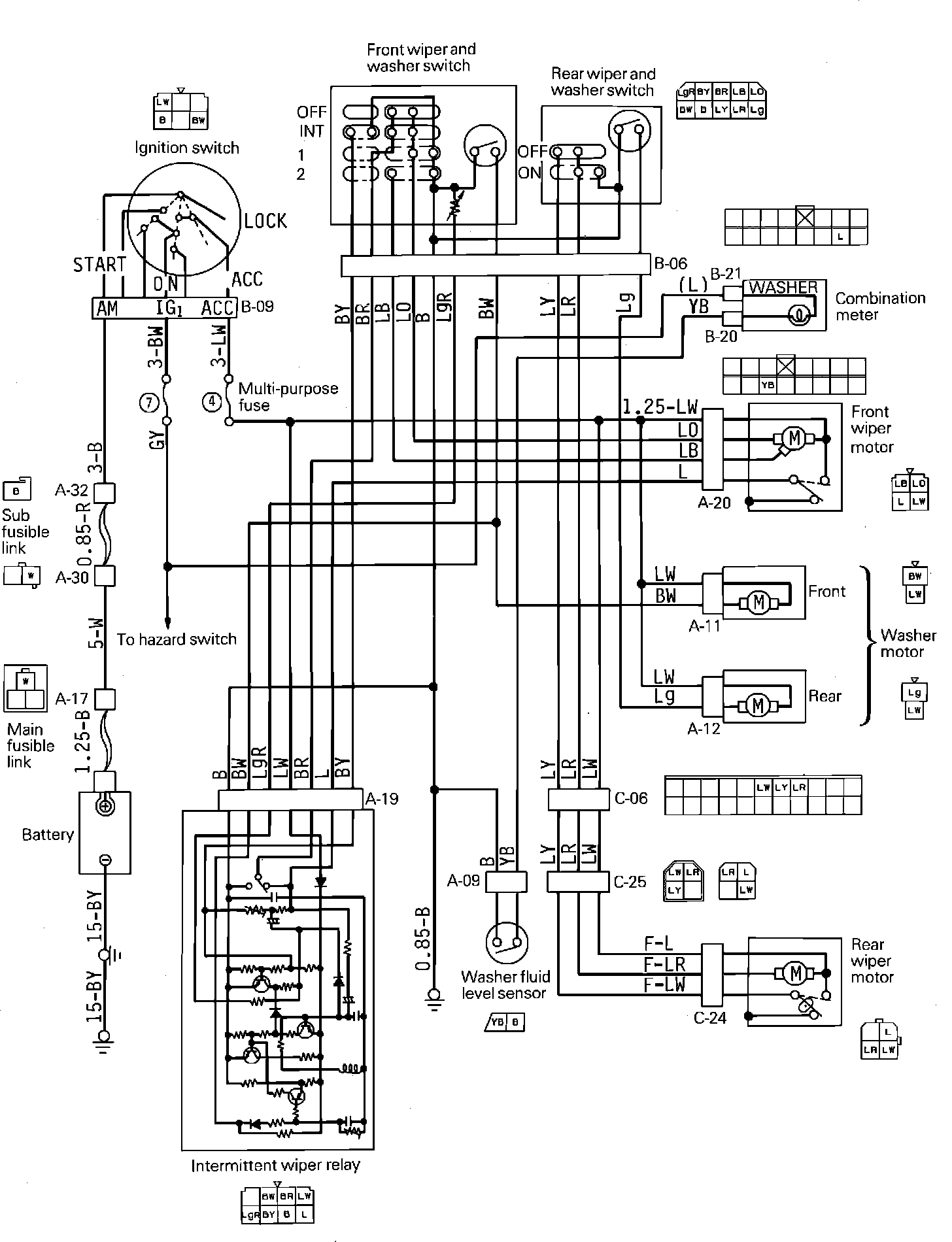

Windshield Washer & Wiper Wiring Circuit:
