B.Install New Hose Routing Label

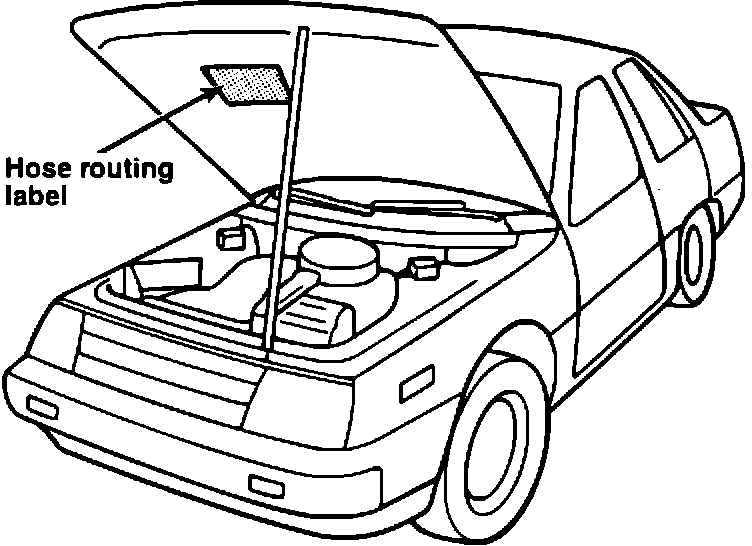

Figure 14:

1. Locate the hose routing label on underside of the hood as shown in Figure 14.
2. Remove all dirt from the old label and install the new hose routing label from the service package overthe old label.
