Dodge
>>
1987
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

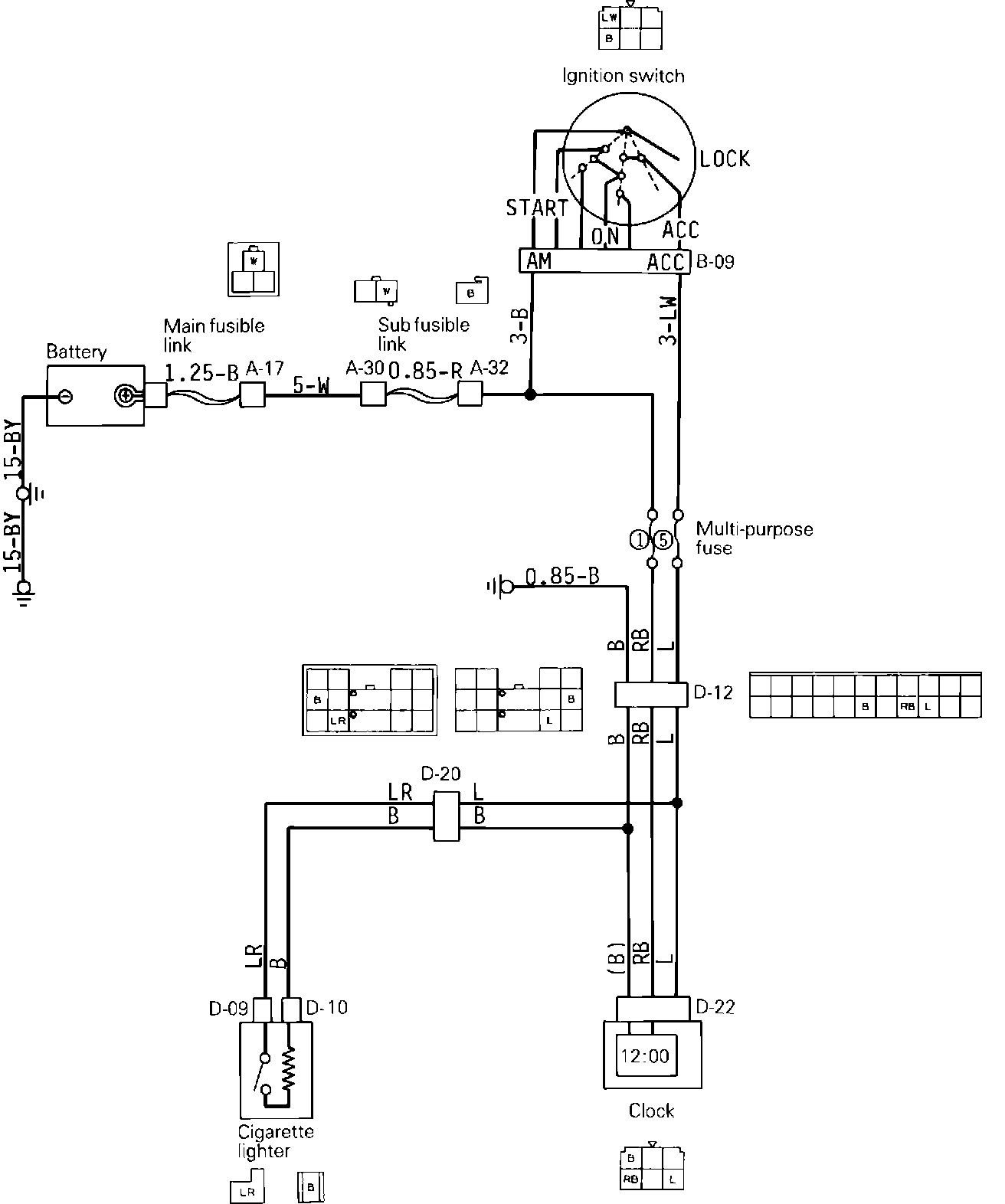

Cigarette Lighter & Clock Wiring Circuit:
