Home
>>
Dodge
>>
1987
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Canada
Canada

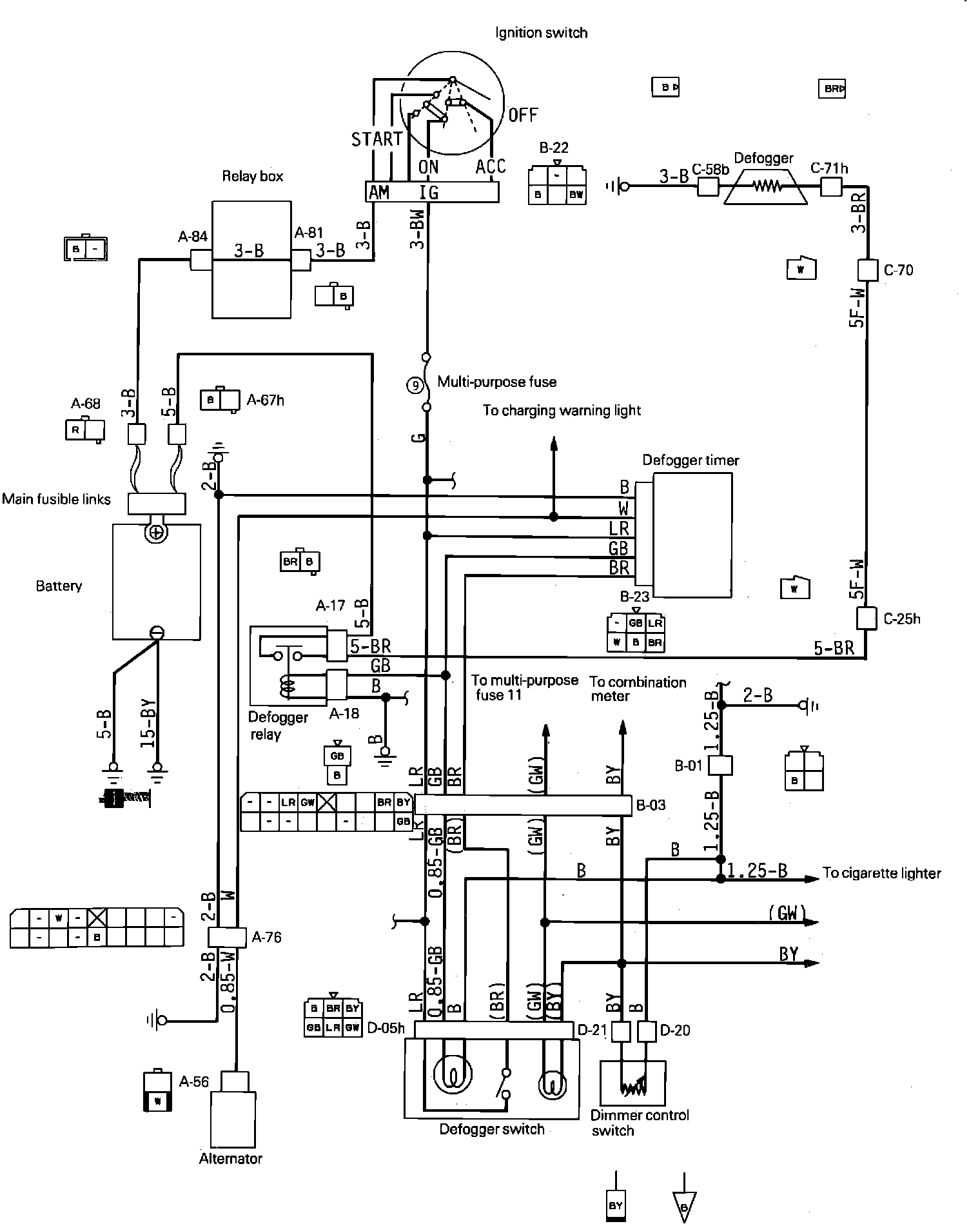

Rear Window Defogger Wiring Circuit:

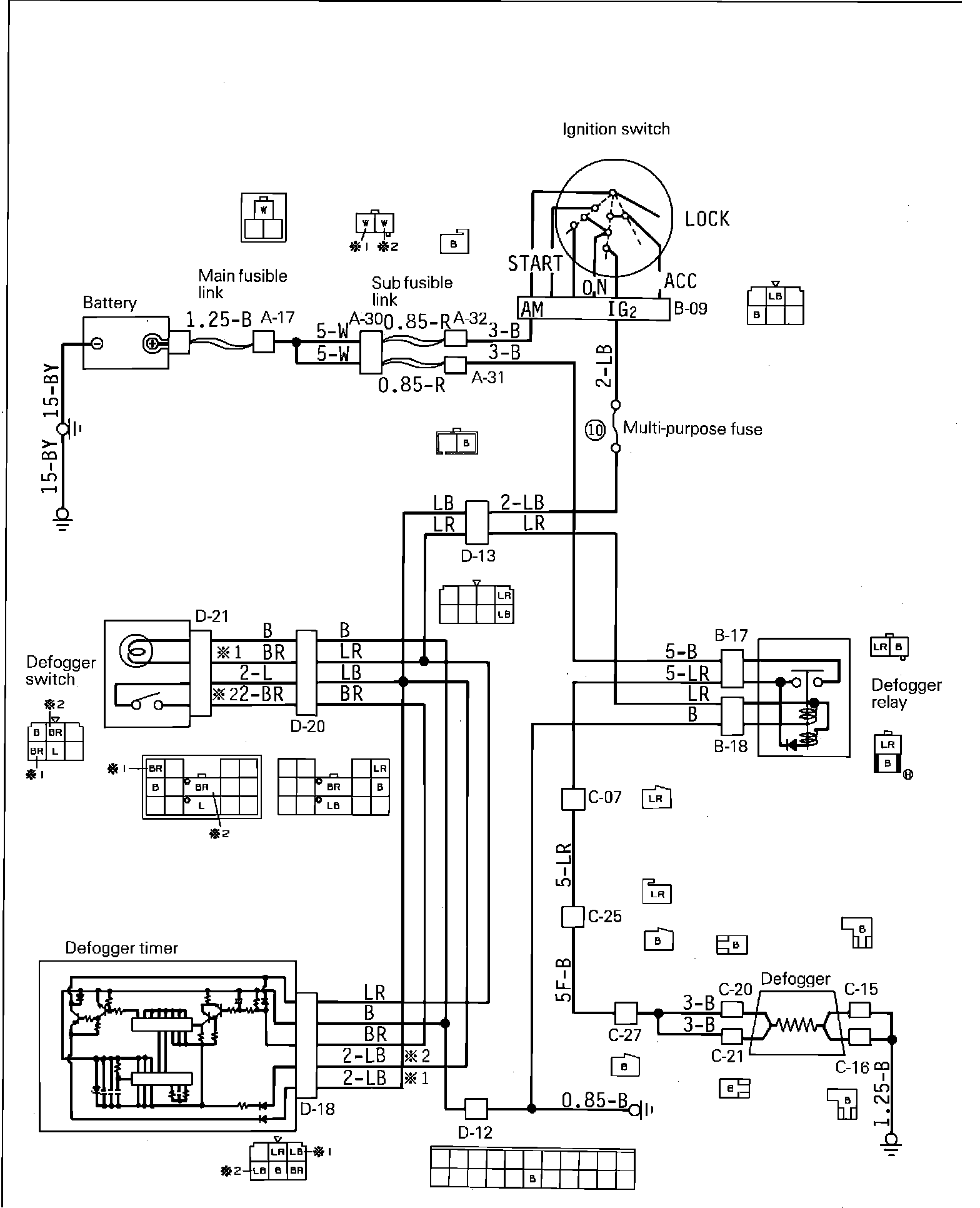

Rear Window Defogger Wiring Circuit:
