Home >> Dodge >> 1987 >> Charger L4-135 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition Switch/System >> Part 2 of 2

Part 2 of 2

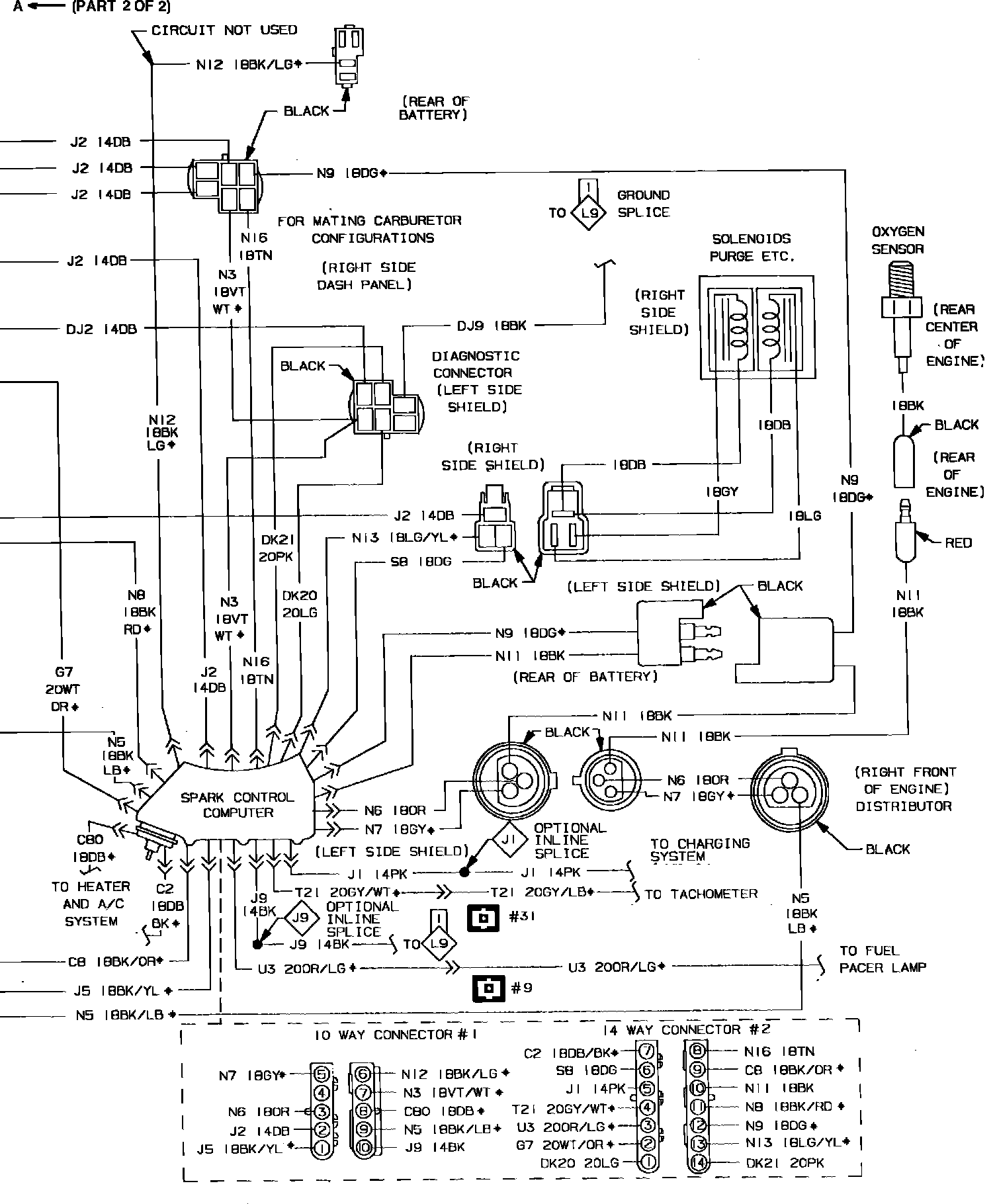

Ignition System Wiring Circuit. Less Turbocharger:
