Fuel Gauge: Testing and Inspection

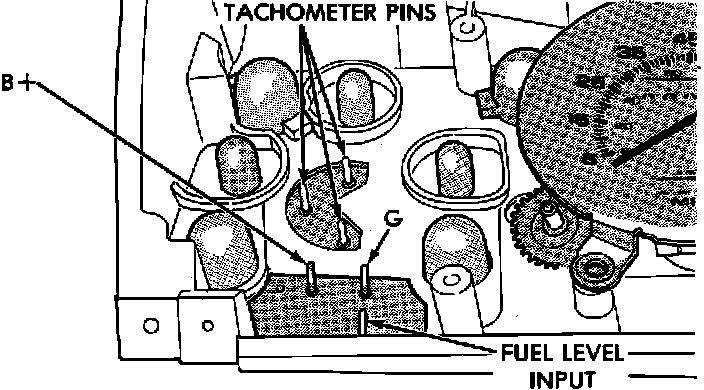

Fuel Gauge Pins Standard Cluster:

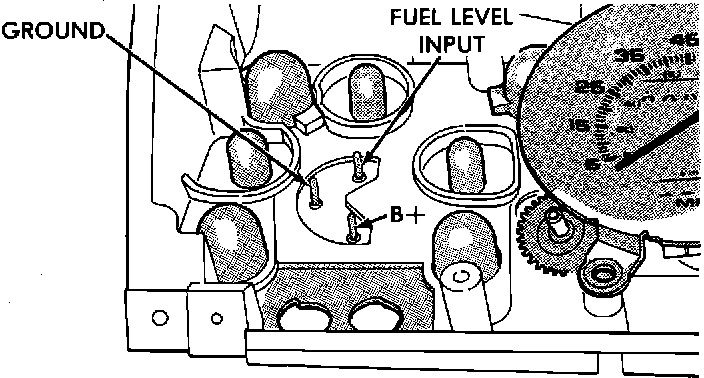

Fuel Gauge Pins Rallye Cluster:

1. Remove fuel gauge from the cluster.
2. Check for continuity in wire between fuel tank sending unit and gauge (fuel level input pin).
3. With ignition switch in On position, check for battery voltage across B+ pin and ground pin.
