Turn Signal Switch

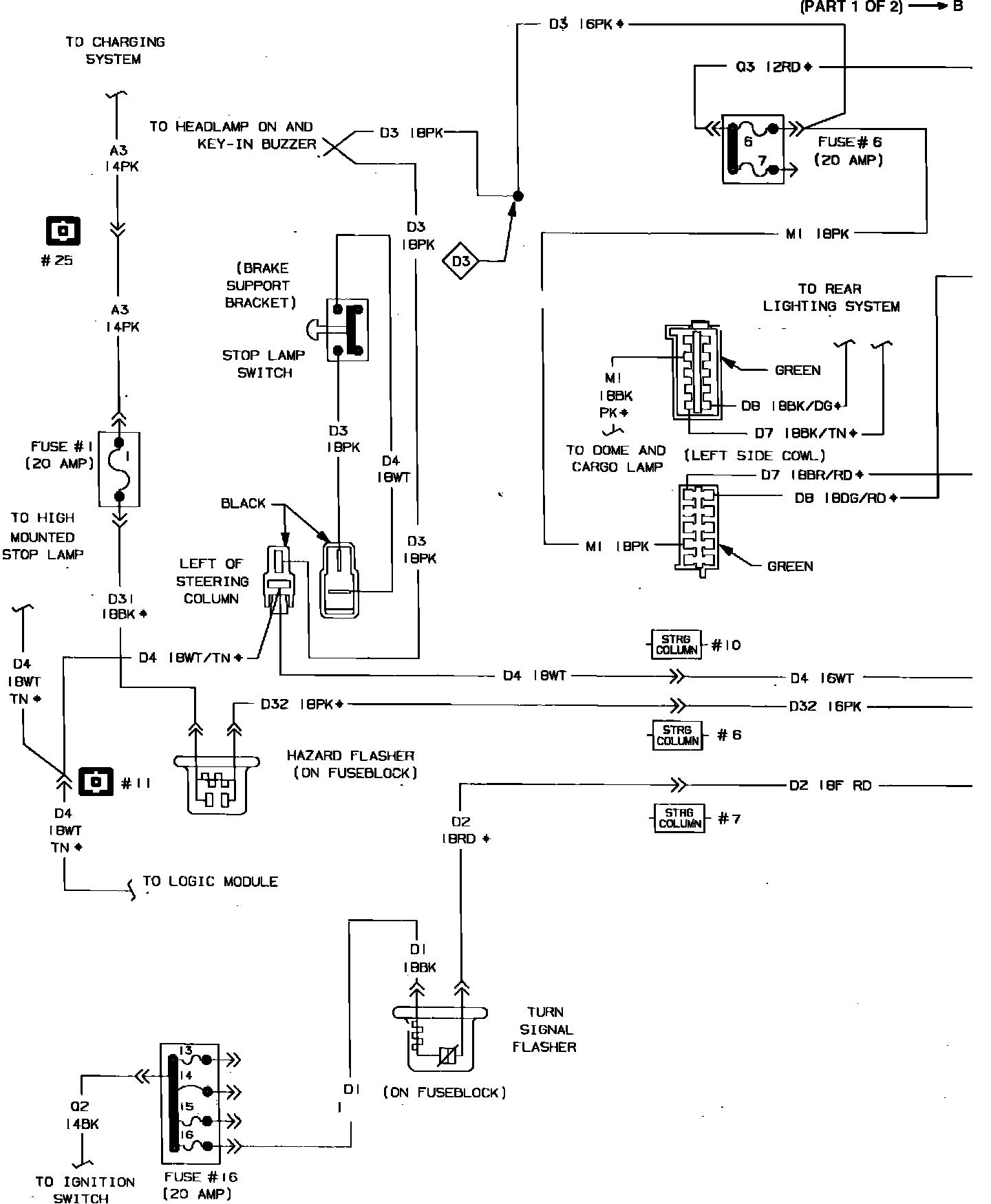

Fig. 42 Turn Signal Switch Wiring Circuit -- Part 1:

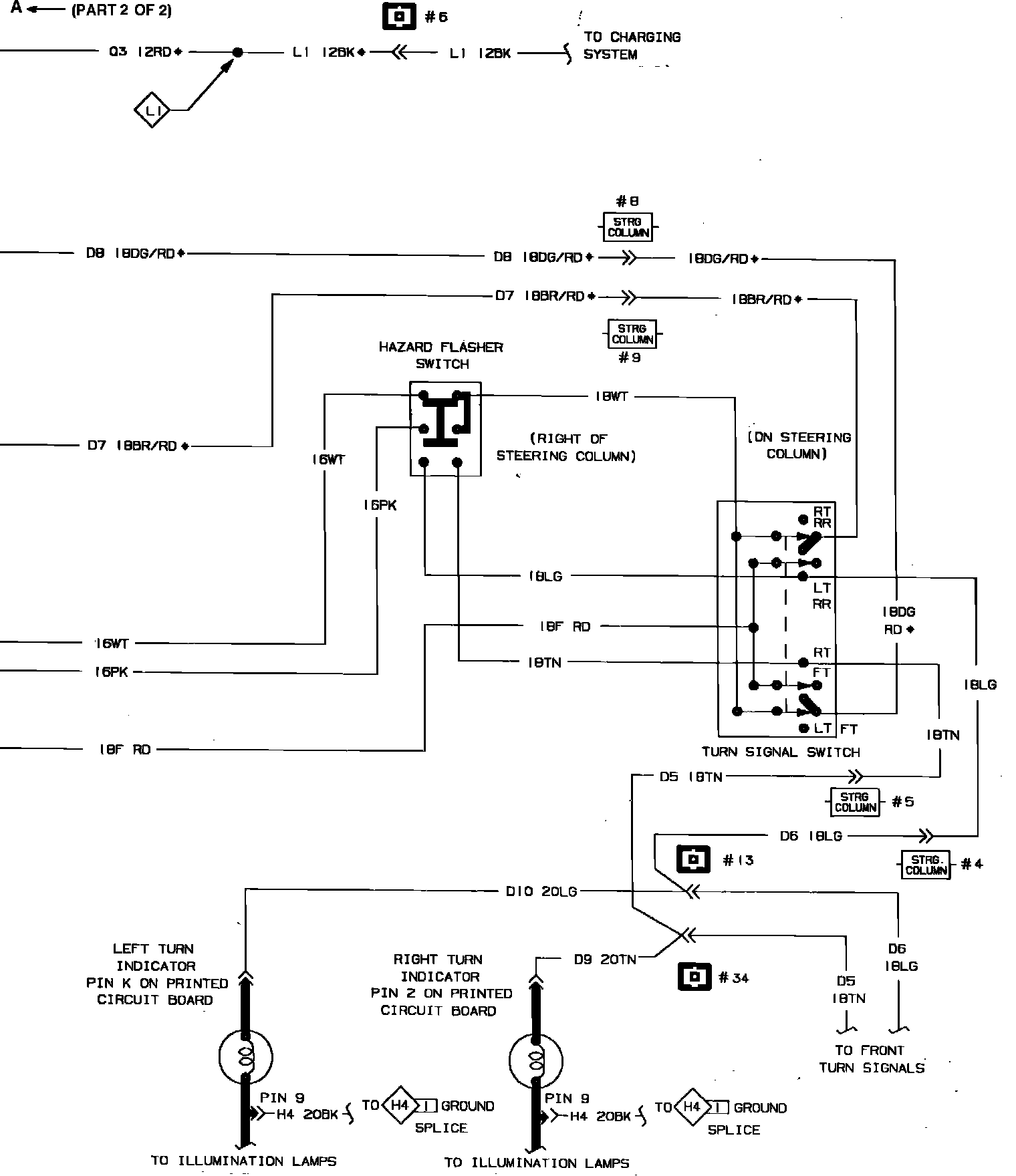

Fig. 42 Turn Signal Switch Wiring Circuit -- Part 2:
