Rear Lighting

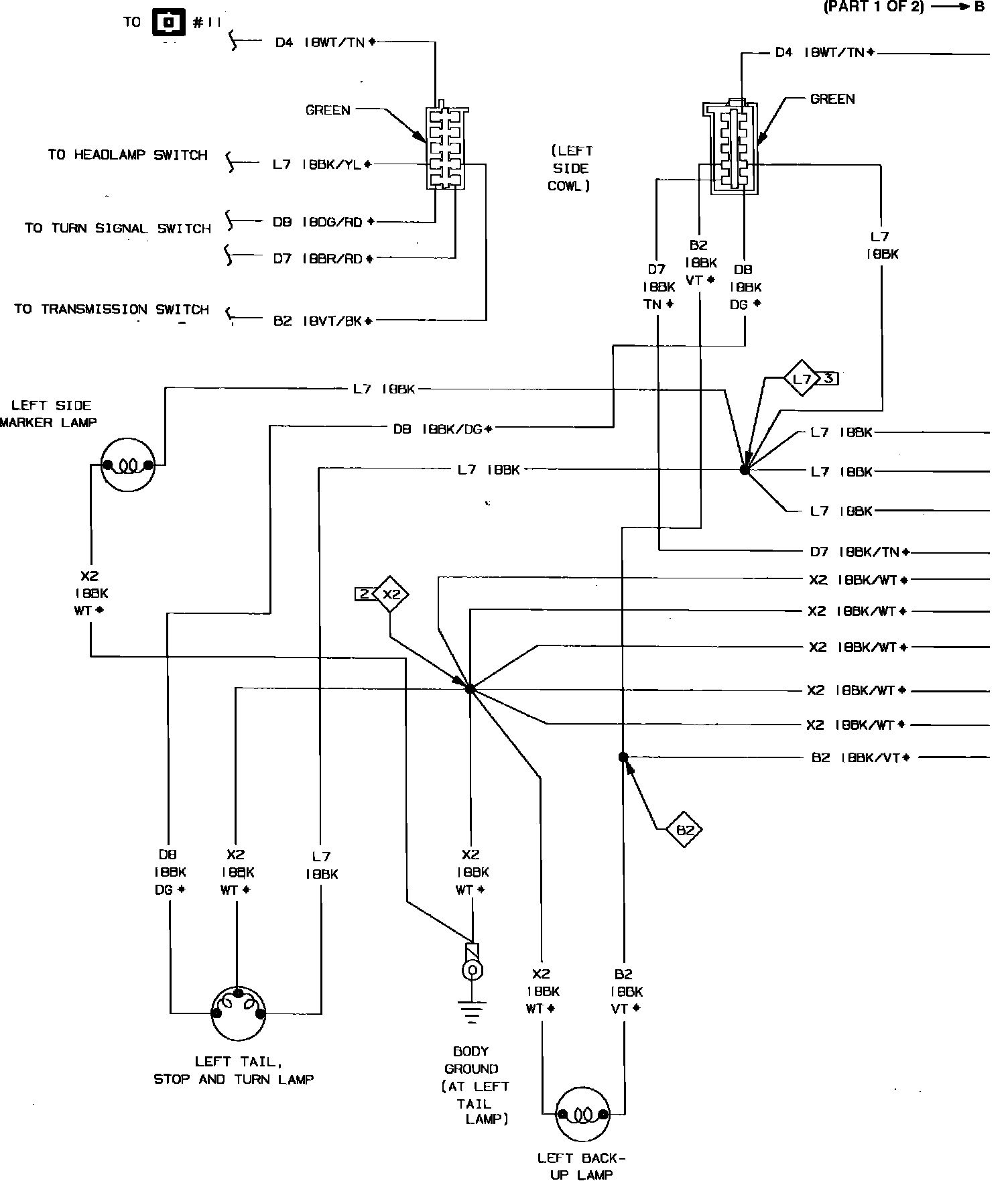

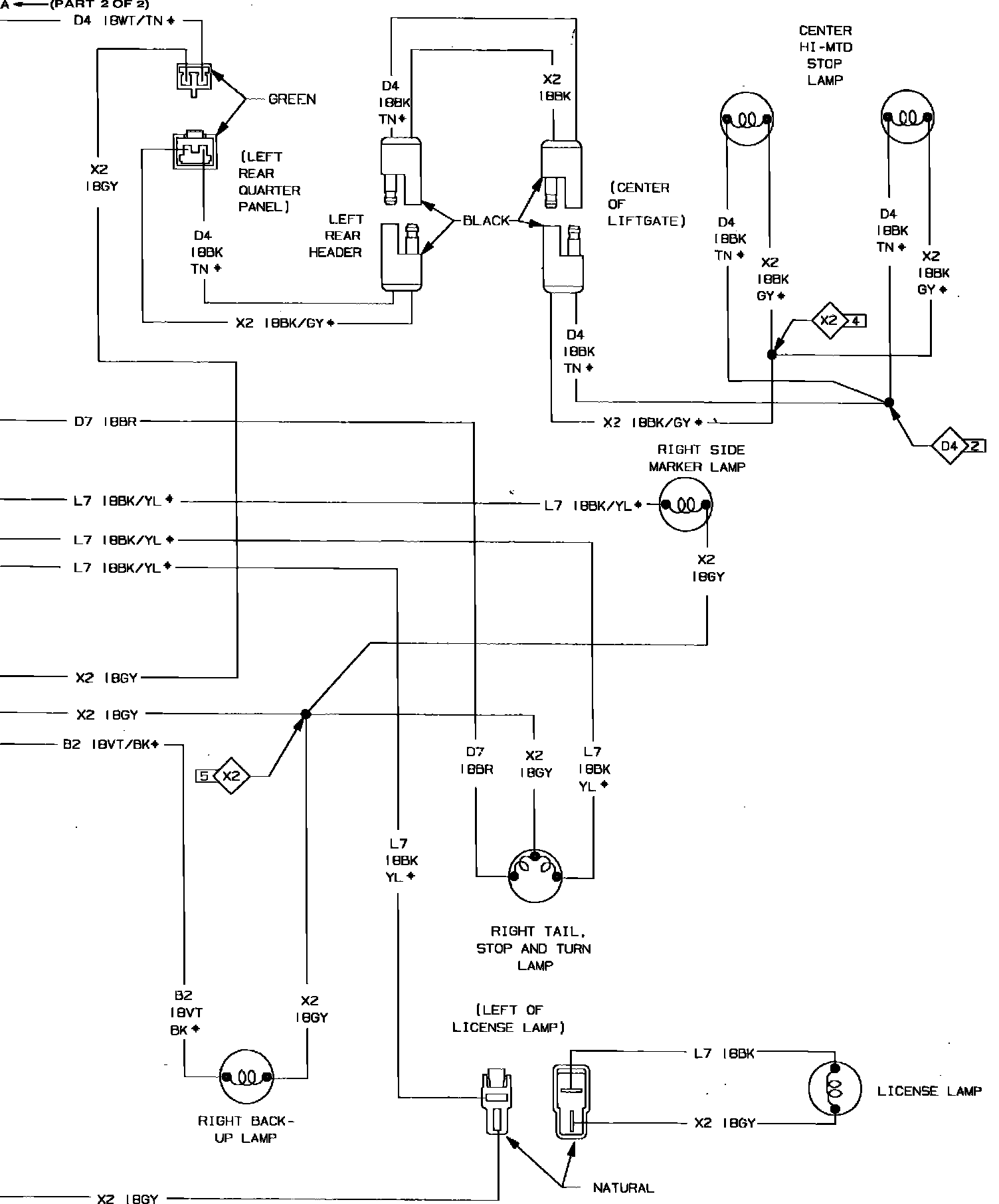

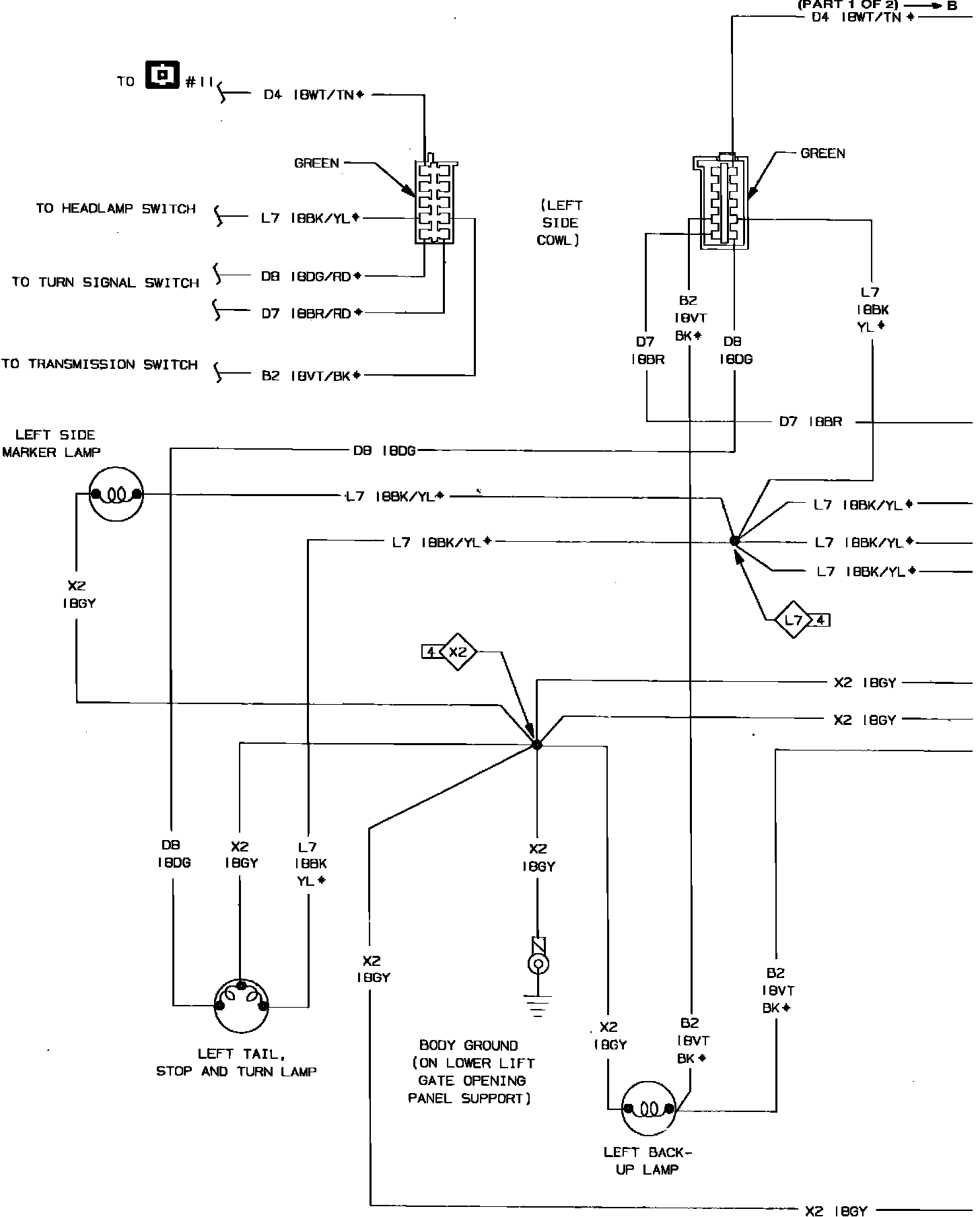

Fig. 37 Rear Lighting Wiring Circuit. Charger & Turismo:

Fig. 37 Rear Lighting Wiring Circuit. Charger & Turismo:

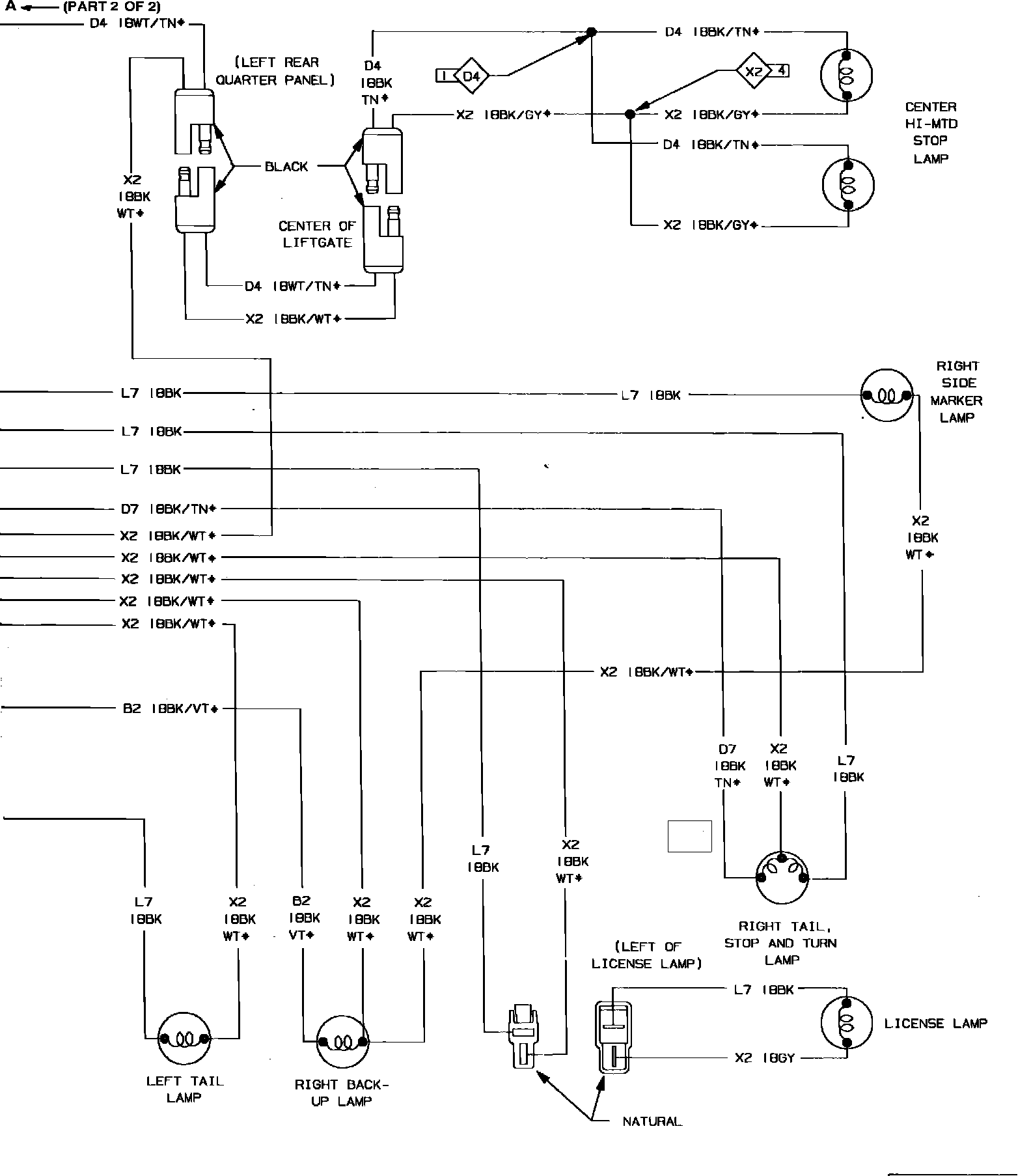

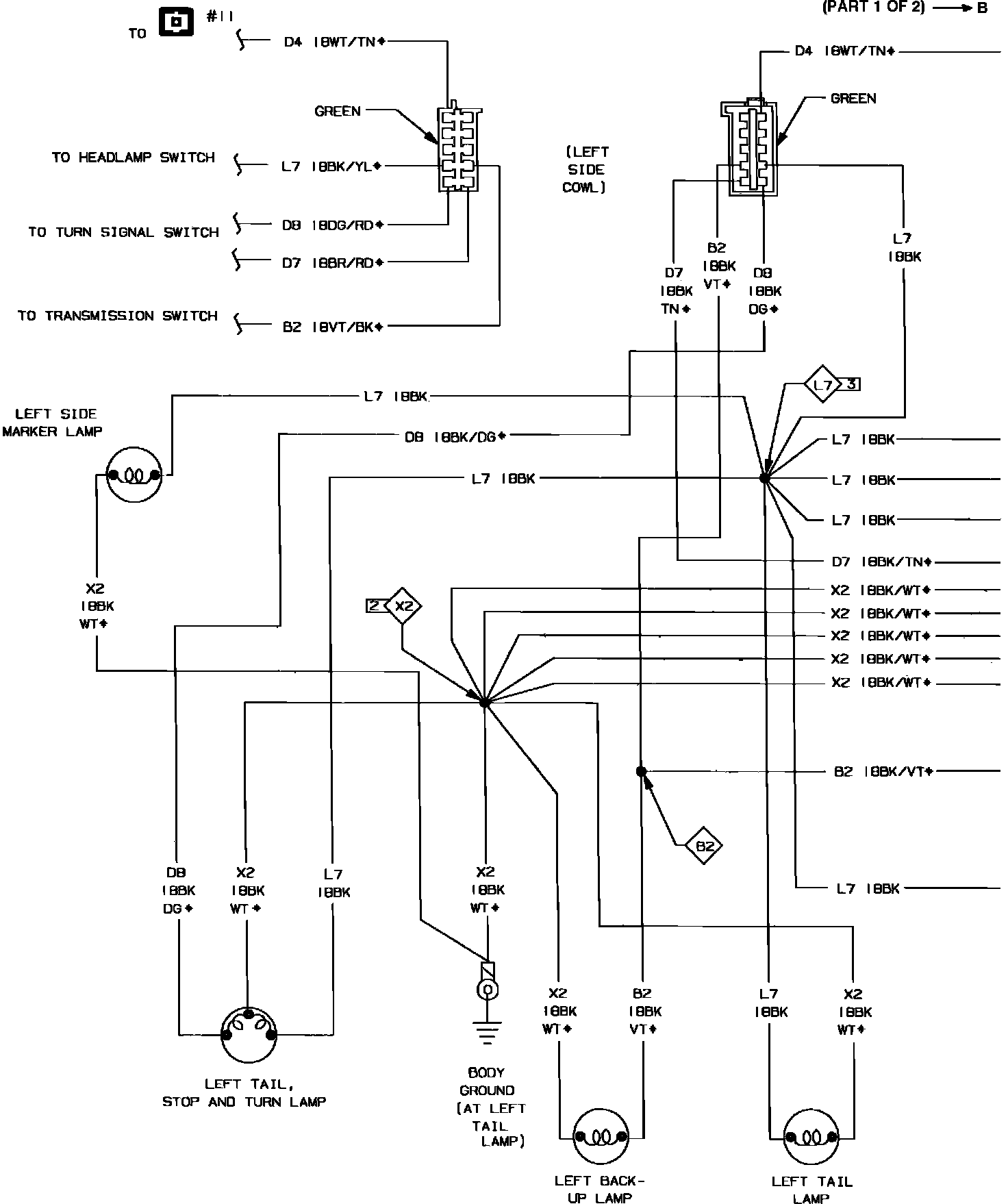

Fig. 39 Rear Lighting - 4 Door Omni Less Liftgate Wiper/Washer:

Fig. 39 Rear Lighting 4 - Door Omni Less Liftgate Wiper/Washer:

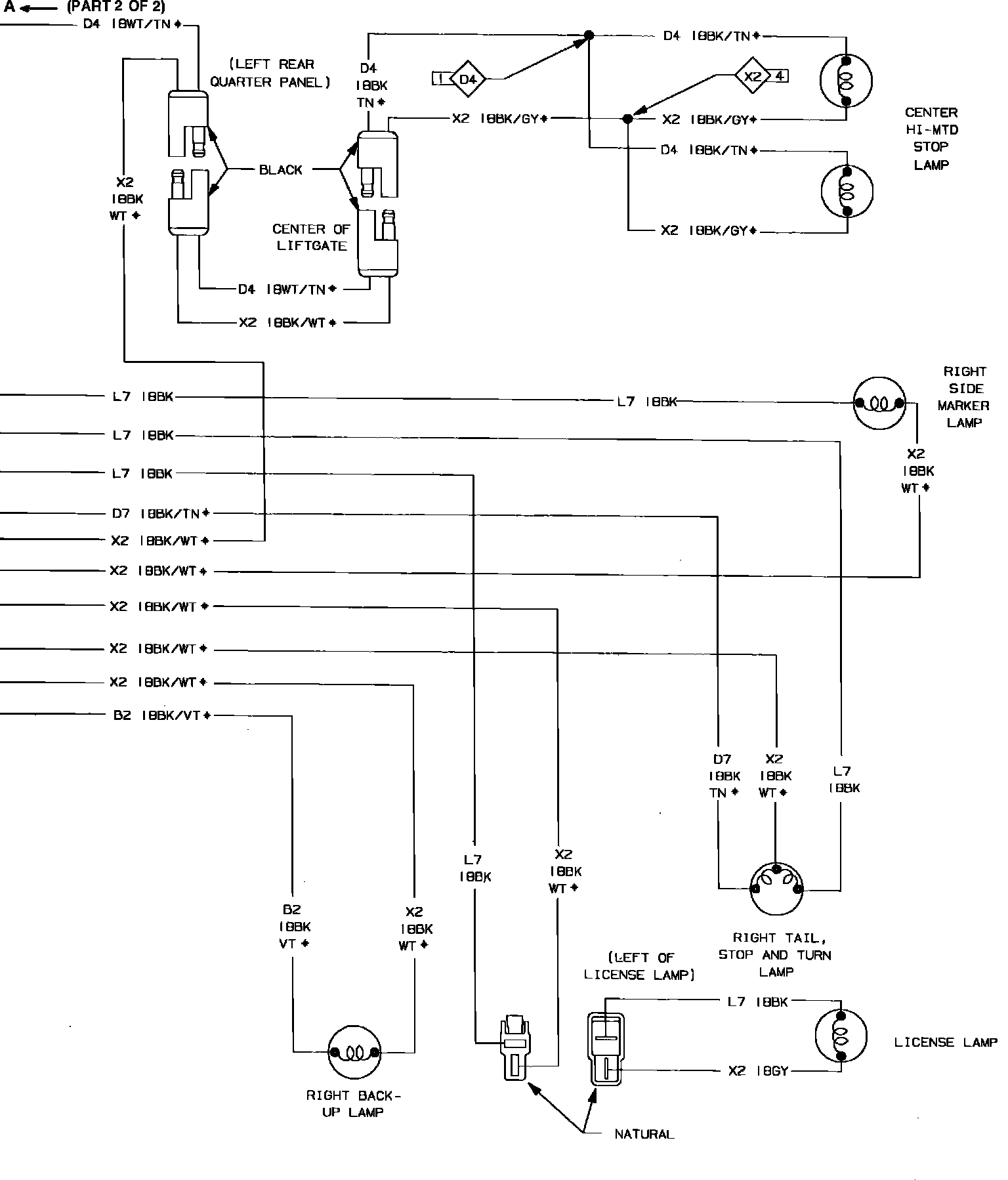

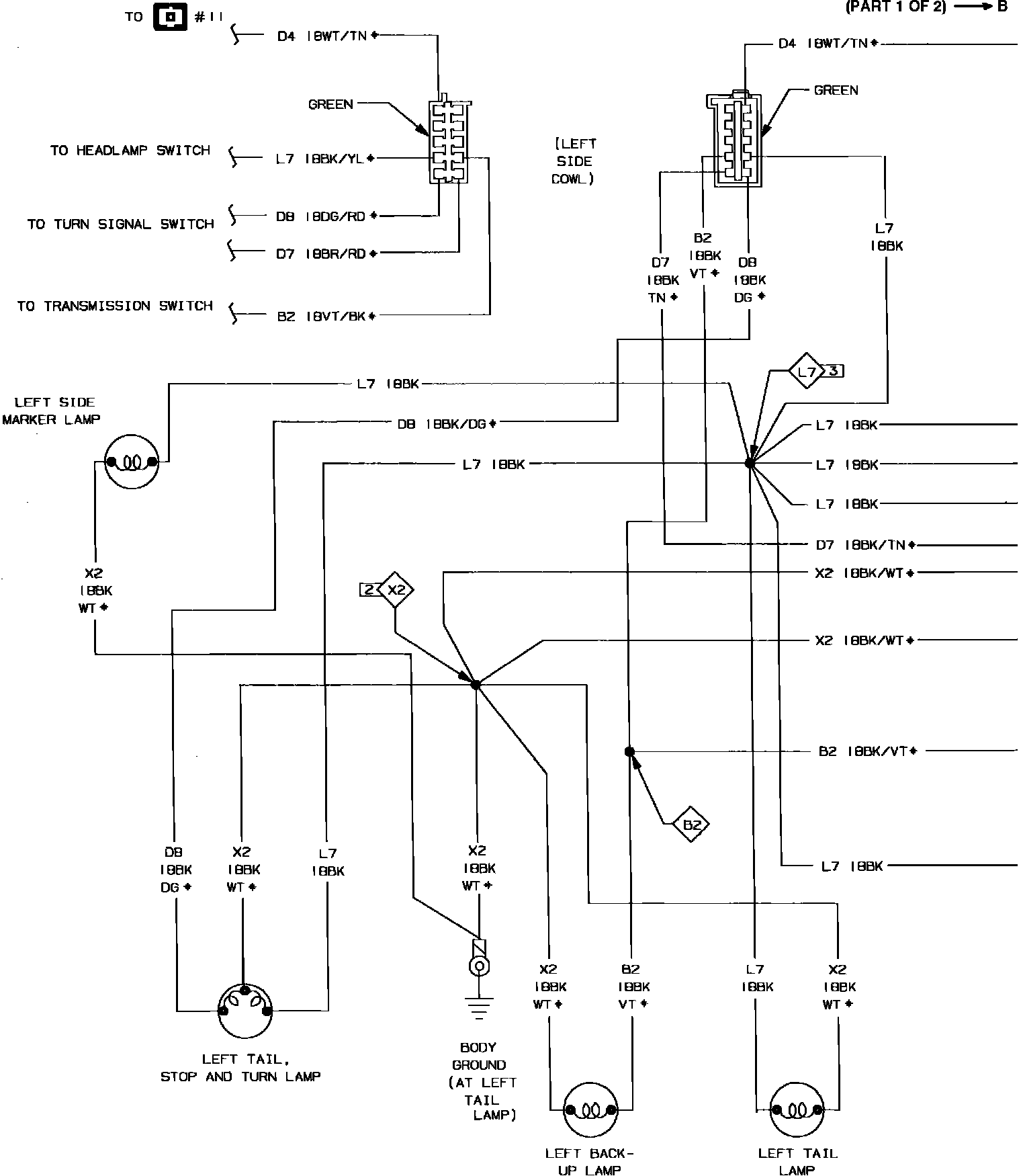

Fig. 40 Rear Lighting - 4 Door Omni W/Liftgate Wiper, Less Washer:

Fig. 40 Rear Lighting - 4 Door Omni W/Liftgate Wiper, Less Washer:

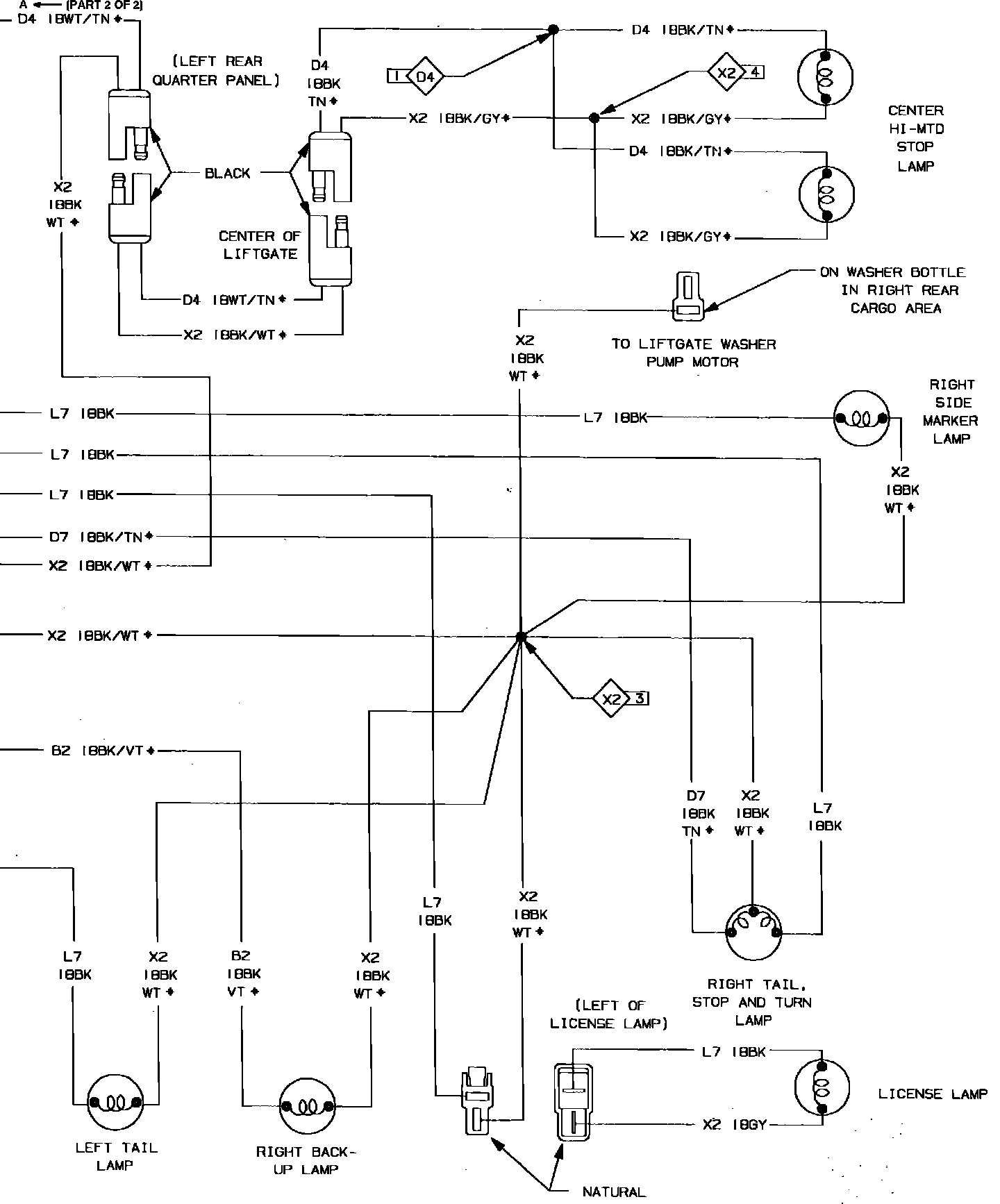

Fig. 41 Rear Lighting - 4 Door Omni W/Liftgate Wiper Washer:

Fig. 41 Rear Lighting - 4 Door Omni W/Liftgate Wiper Washer:
