Headlamp Switch Controlled Interior Lighting

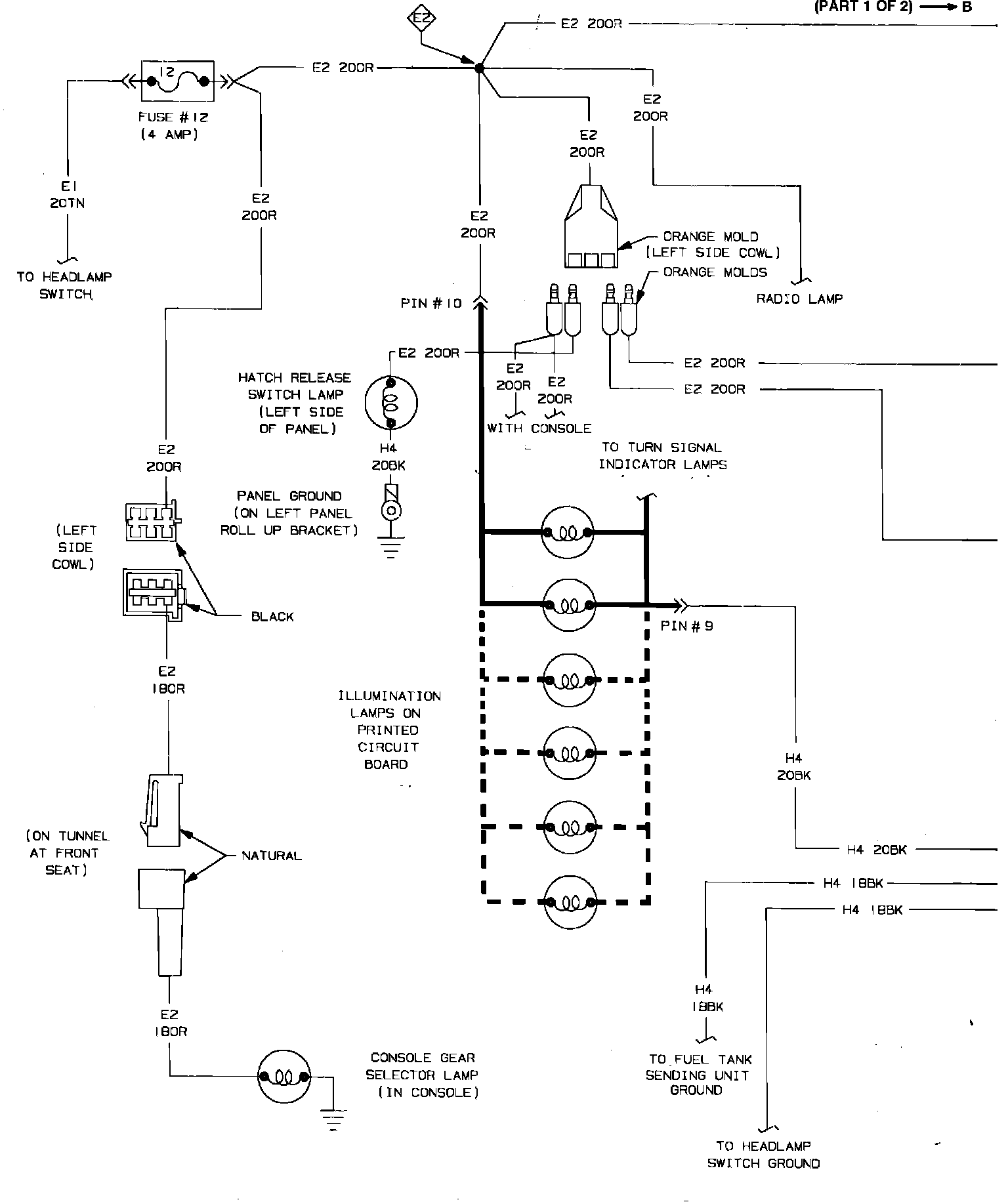

Fig. 24 Headlamp Switch Controlled Interior Lighting Wiring Circuit -- Part 1:



Fig. 24 Headlamp Switch Controlled Interior Lighting Wiring Circuit -- Part 2:
