Charging System (CH) Tests
>>

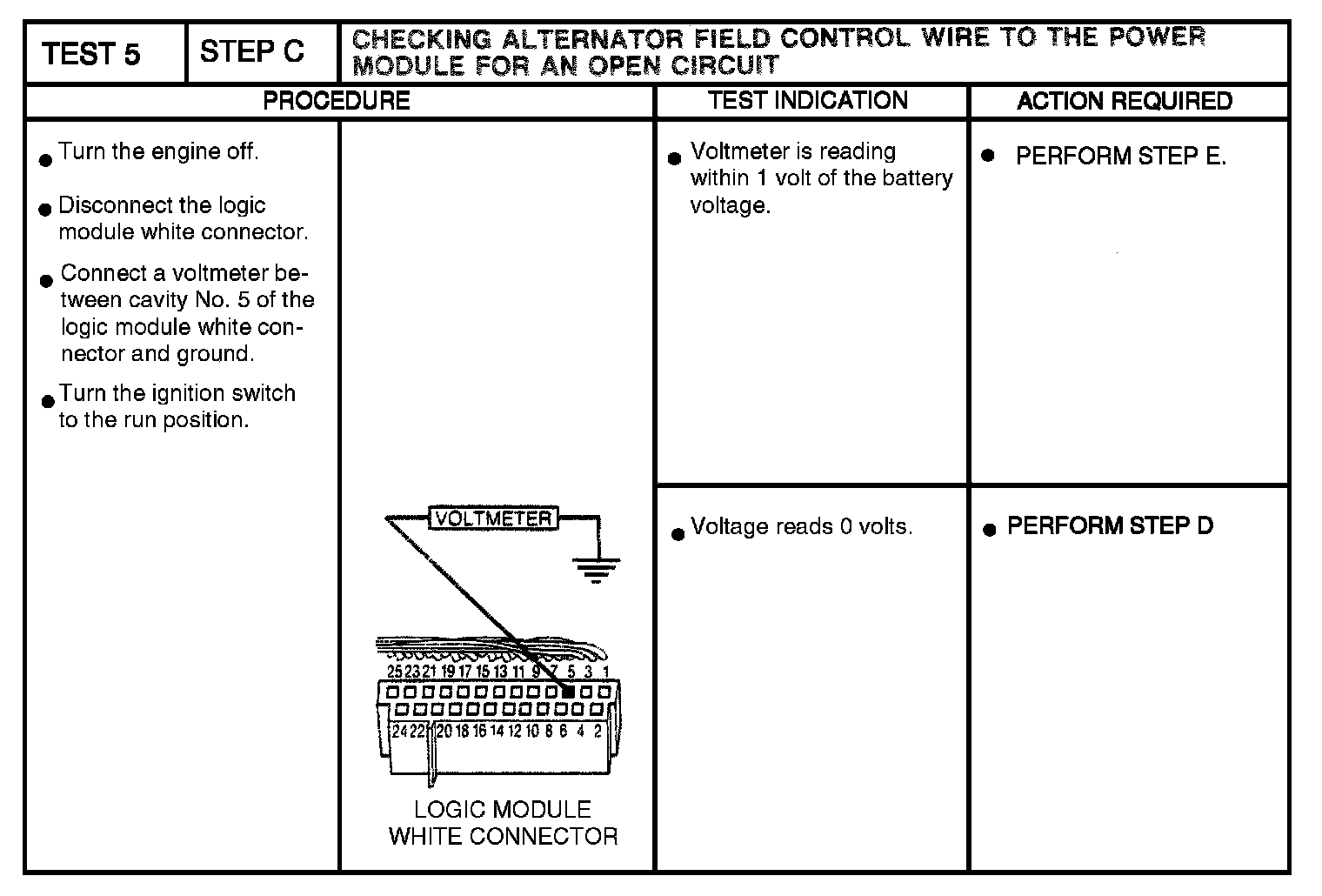

CH-5C Field Control Wire to the Power Module
CH-5C Field Control Wire to the Power Module
Test 5, Step C:
