Trunk / Liftgate Relay: Locations

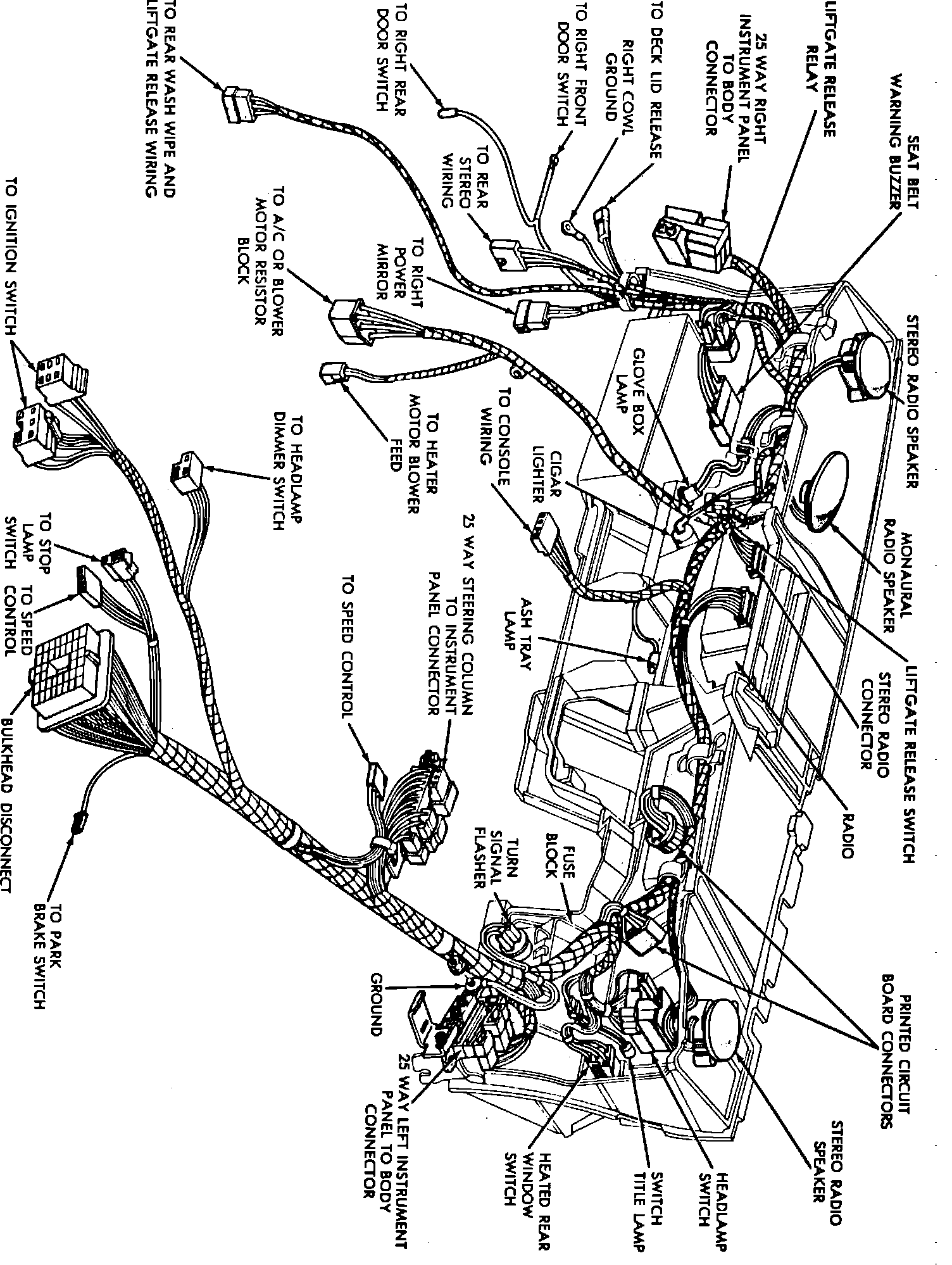

Instrument panel electrical components.:




Under RH Side Of I/P

Applicable to: 1986-87 Aries & Reliant
