Home >> Dodge >> 1987 >> Aries L4-135 2.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Body, Cowl & Steering Column Splices >> Front Door

Front Door

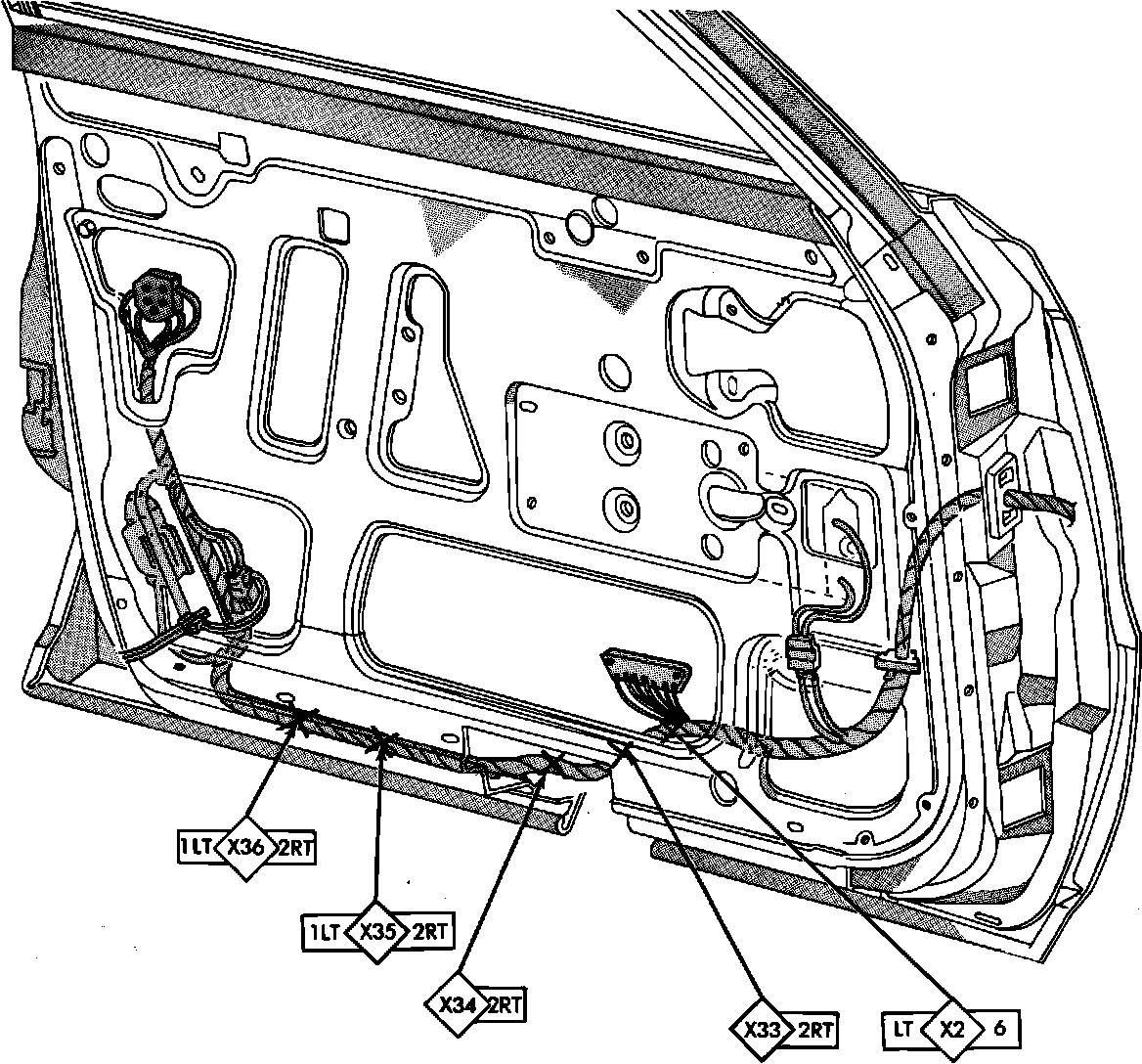

Fig. 55 Splice Location. Front Door, 4 Door:

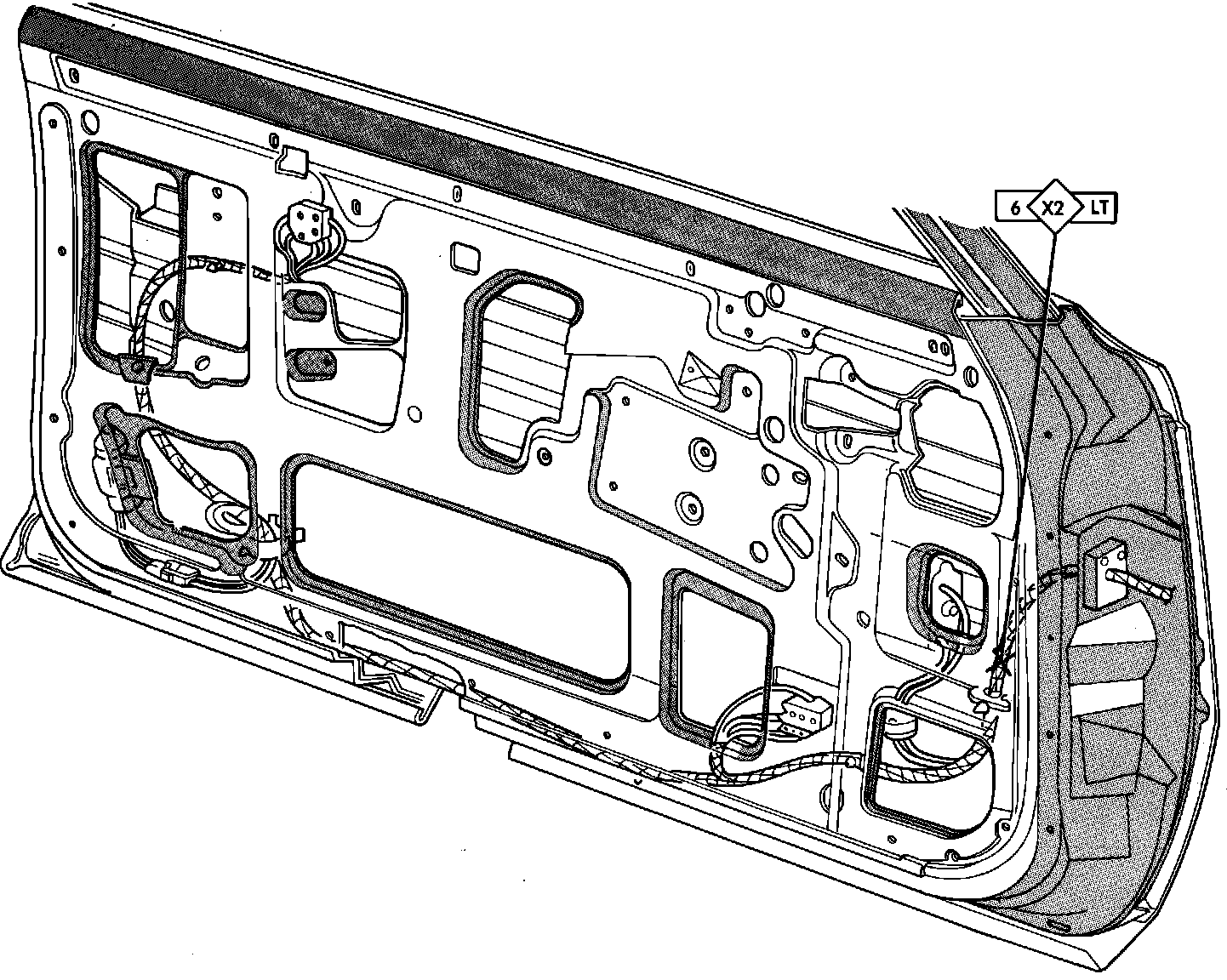

Fig. 56 Splice Location. Front Door, 2 Door:
