ATC Self Diagnostic Mode (How to Extract Fault Codes)
ATC Self Diagnostic Mode (How to Extract Fault Codes)

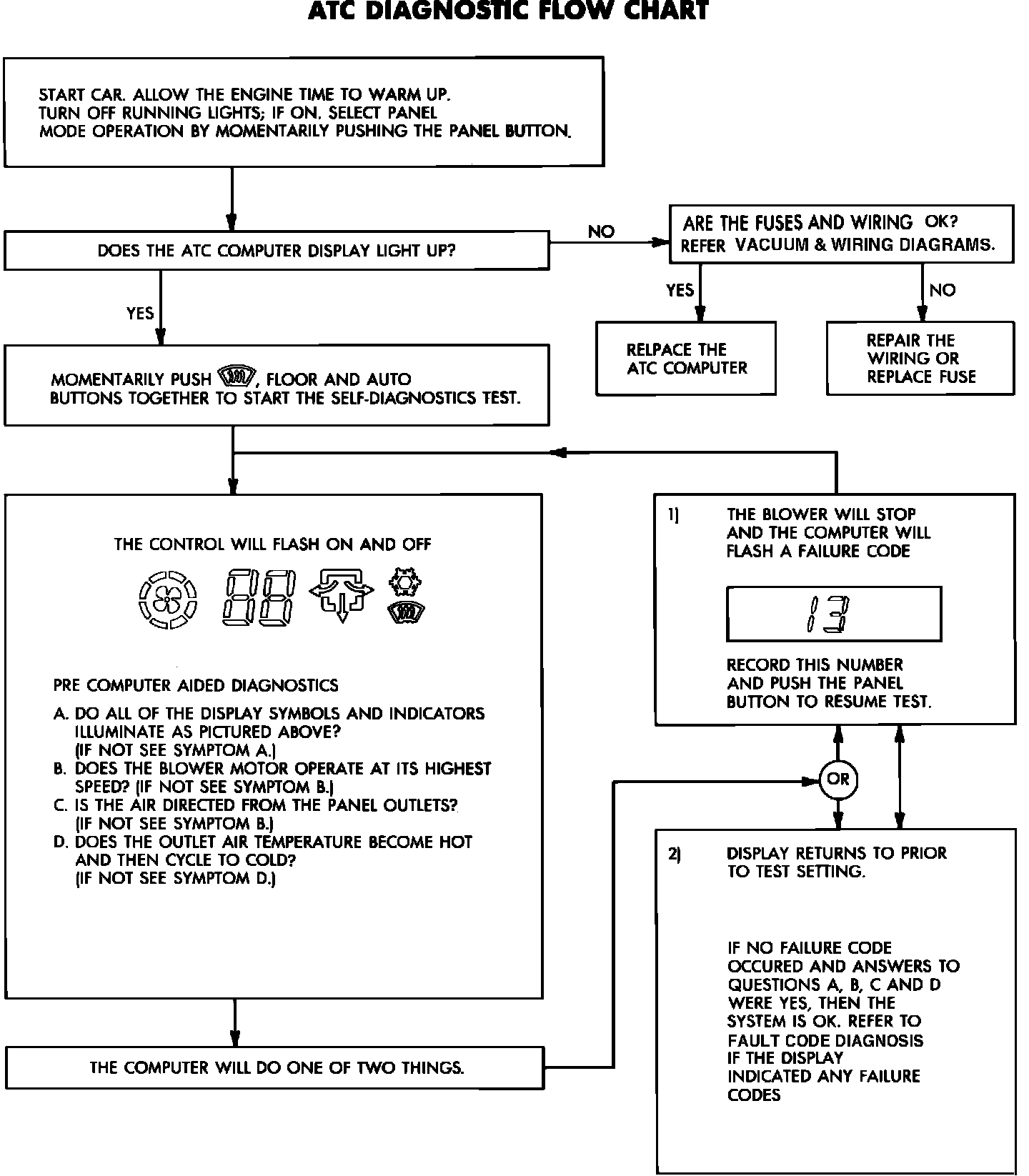

ATC Diagnostic Flow Chart:
