Dodge
>>
1987
>>
Aries L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Bulkhead Connector
>>
Instrument Panel Side
Instrument Panel Side

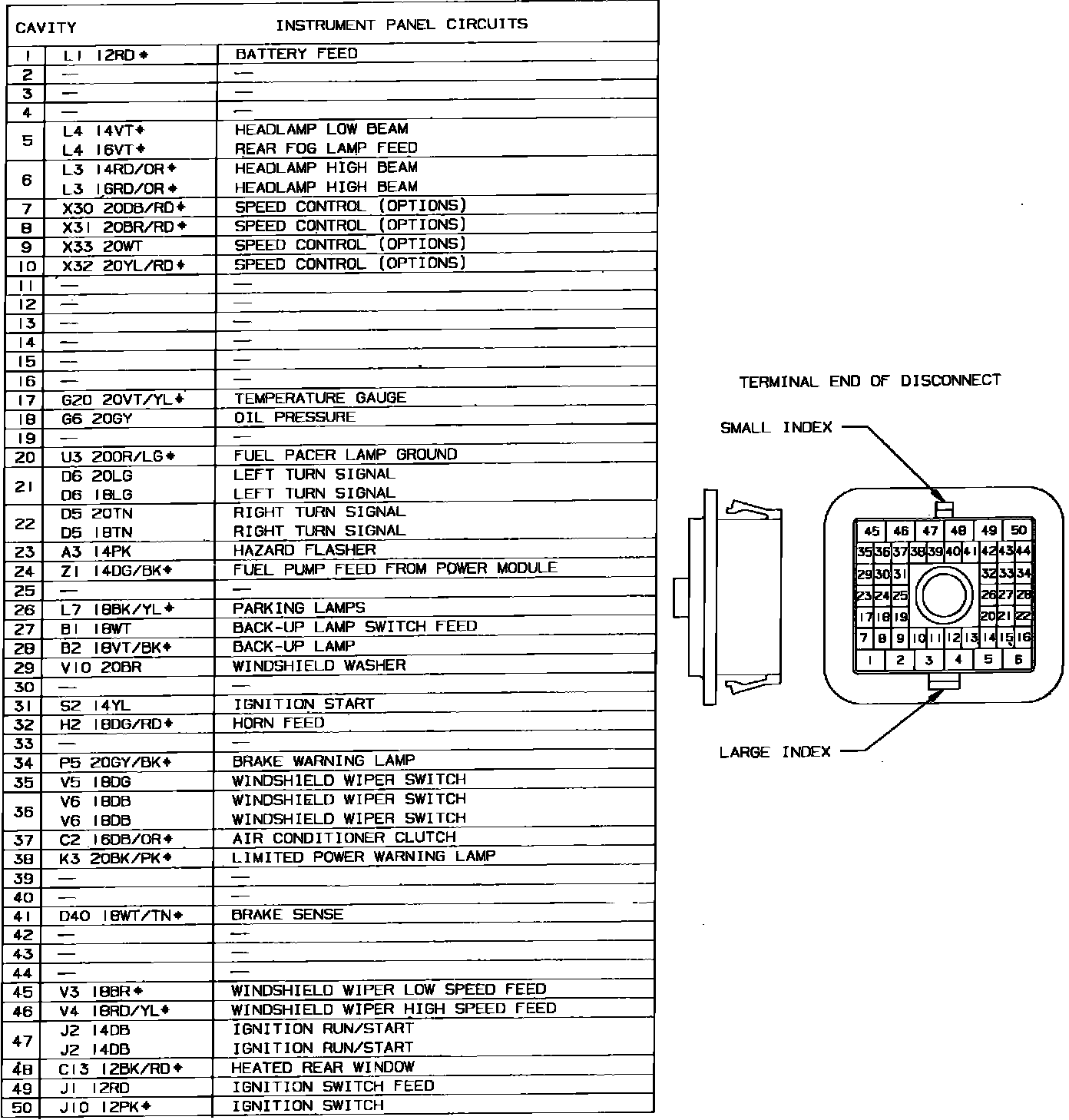

Fig. 6 Bulkhead Connector. Instrument Panel:
