Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
>>
Right Side
Right Side

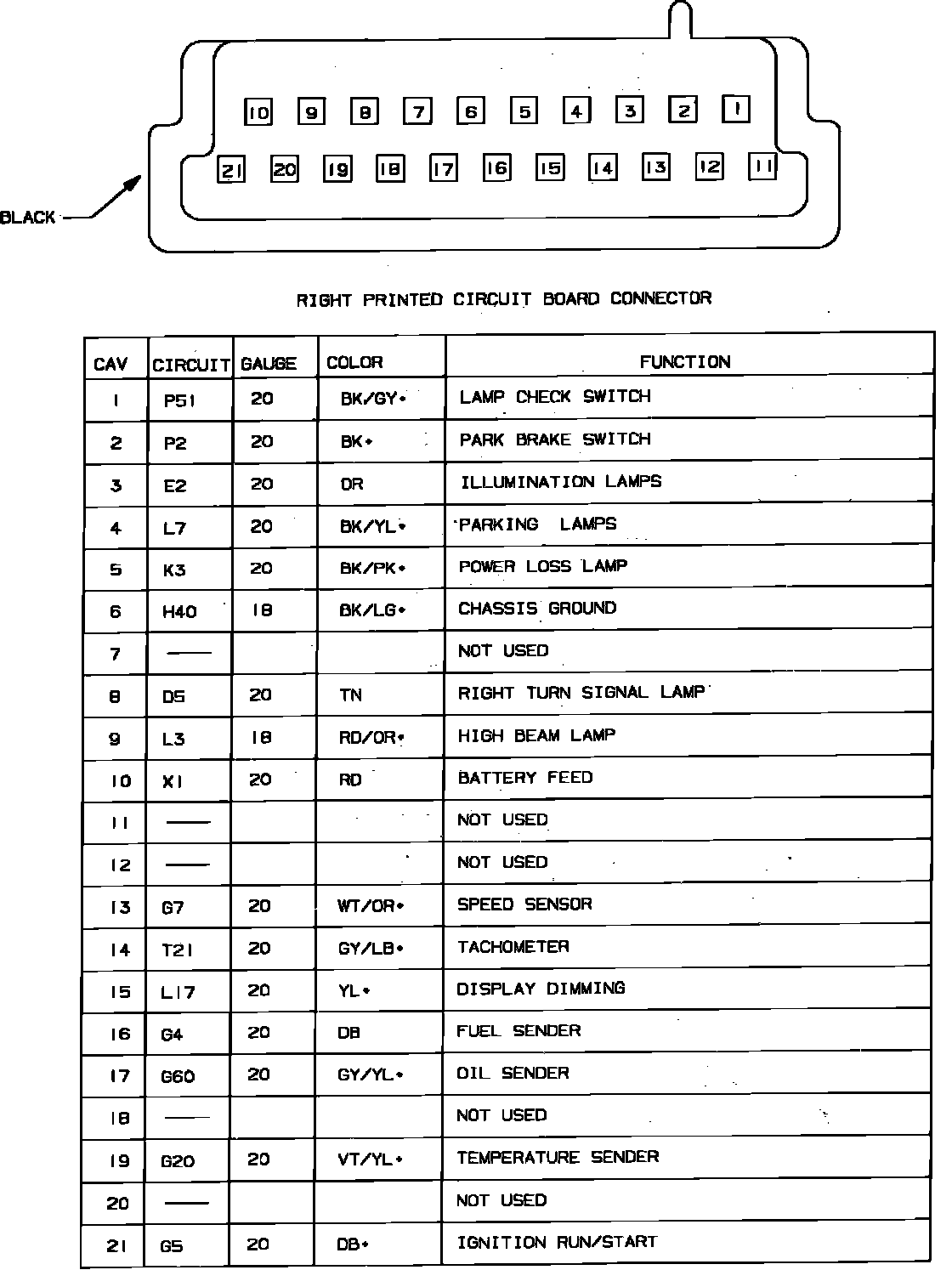

Fig. 3 Printed Circuit Board Connectors. Electronic Instrument Cluster:
