With Mech Cluster

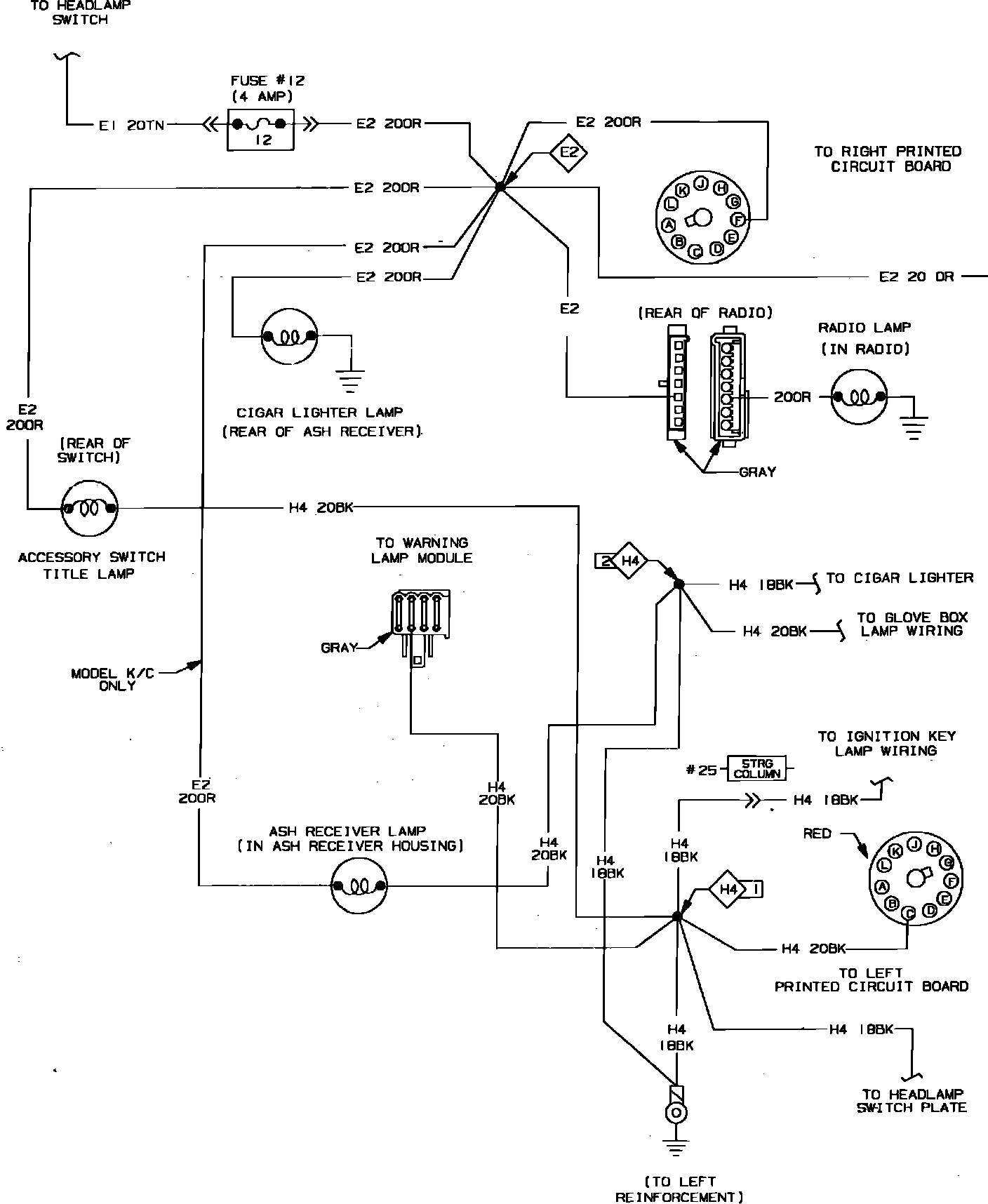

Fig. 36 Headlamp Switch Controlled Interior Lighting System Wiring Circuit. Mechanical Cluster (Part 1 Of 2):

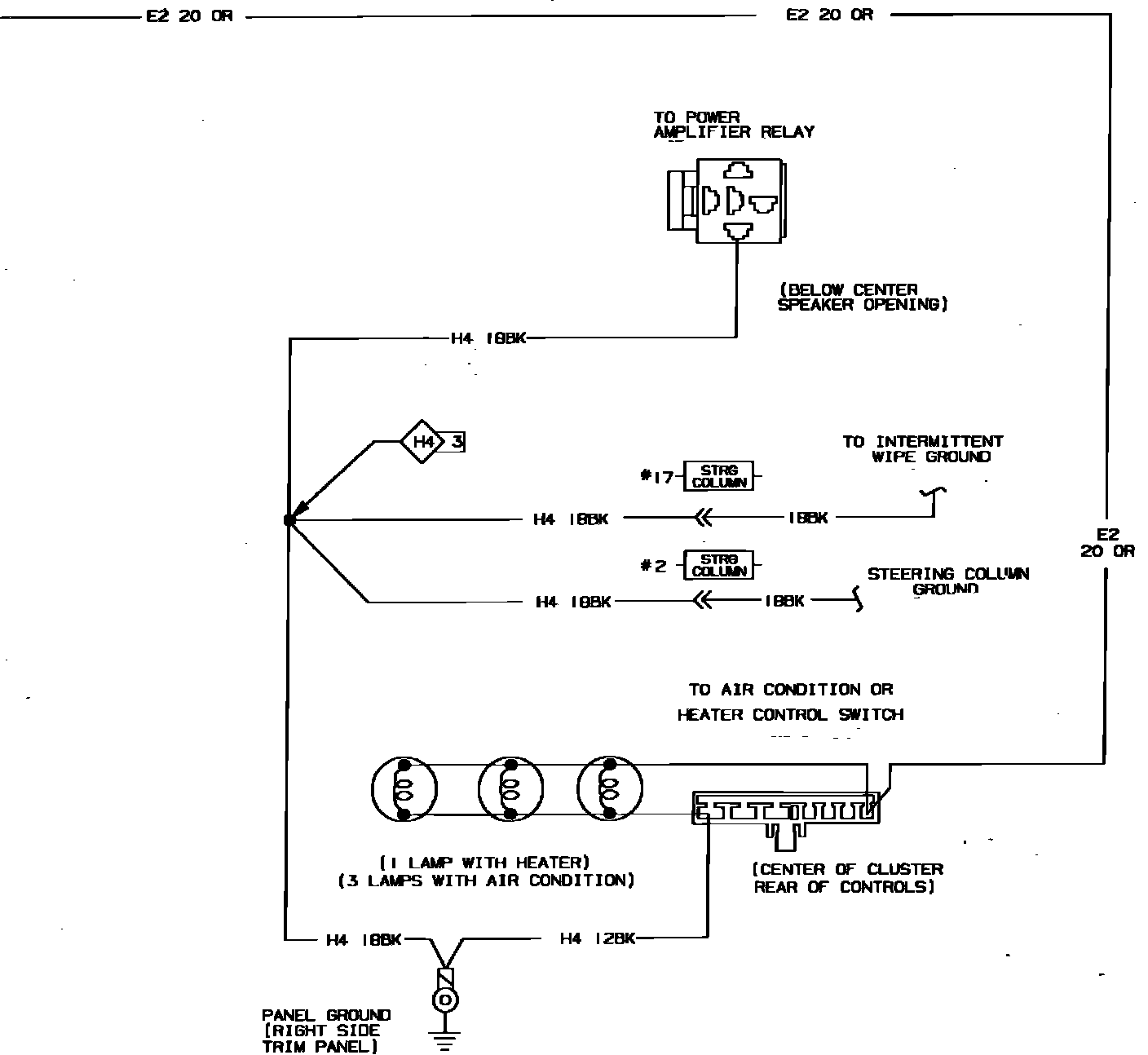

Fig. 36 Headlamp Switch Controlled Interior Lighting System Wiring Circuit. Mechanical Cluster (Part 2 Of 2):
