Suspension Control ( Automatic - Electronic )
>>
Air Load Leveling System
Air Load Leveling System

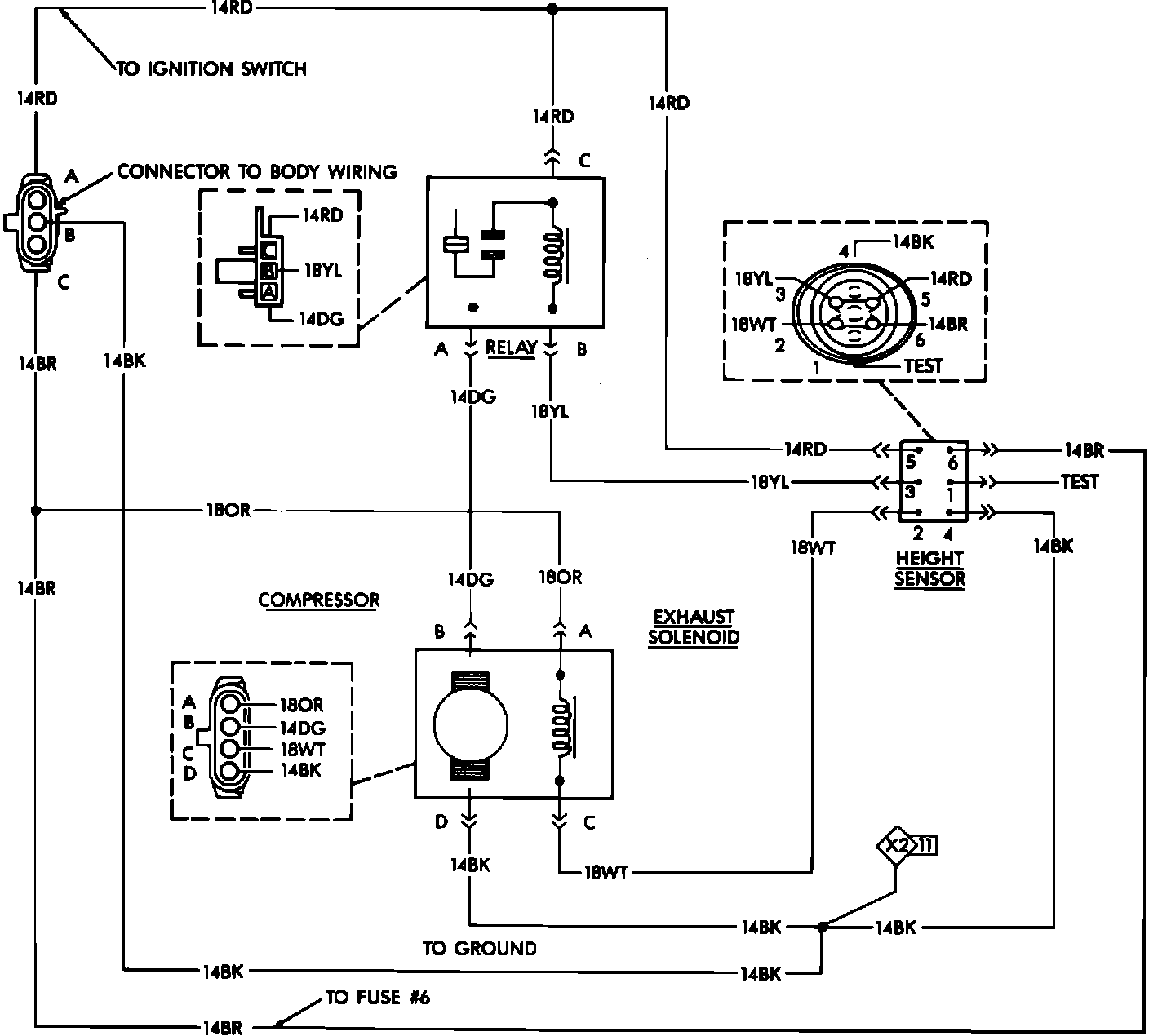

Load Leveling Wiring Schematic:
