Dodge
>>
1987
>>
600 L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
AM Radio
AM Radio

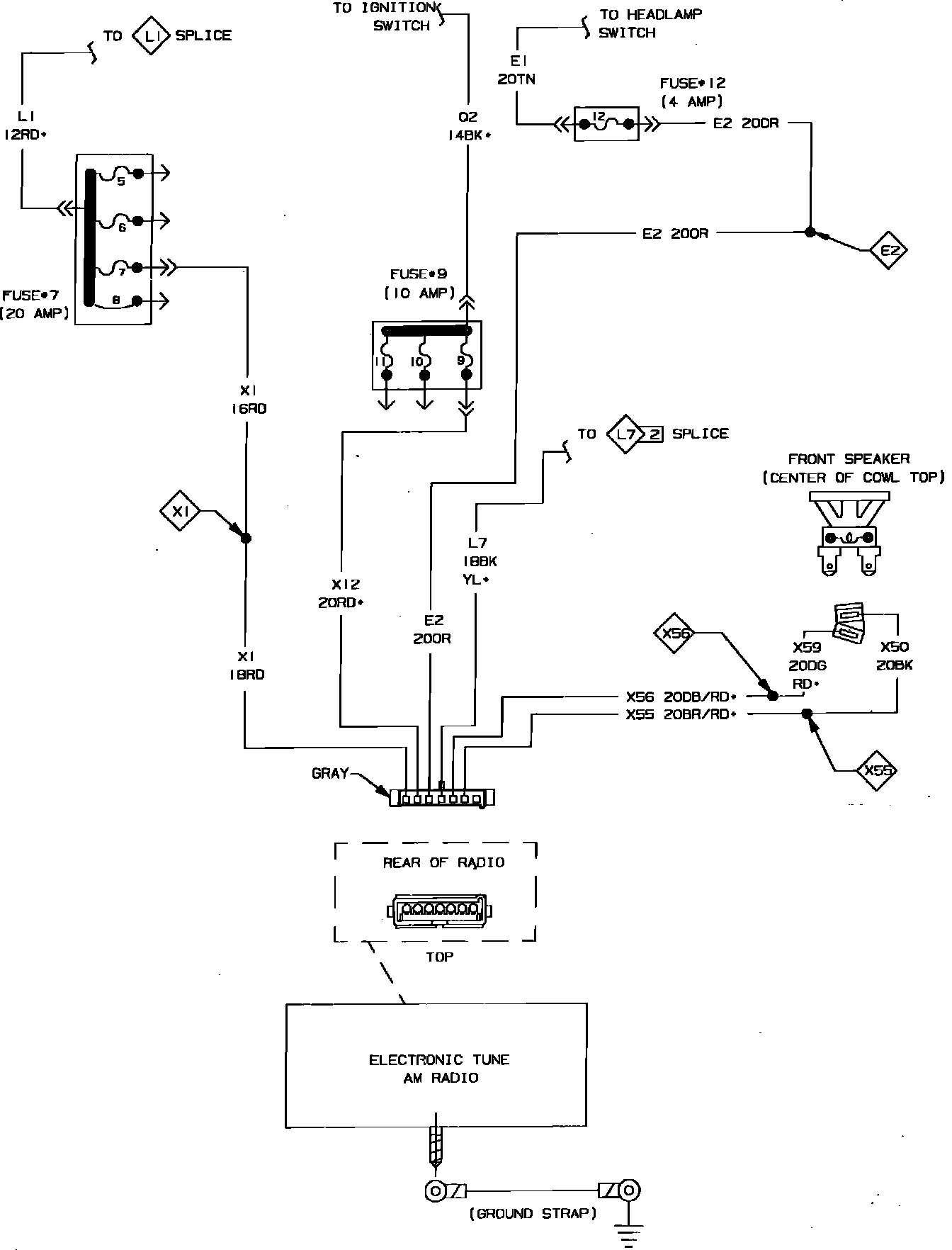

Fig. 57 Radio System Wiring Circuit. Mono Radio:
