Amplifier, Sound System
Amplifier, Sound System

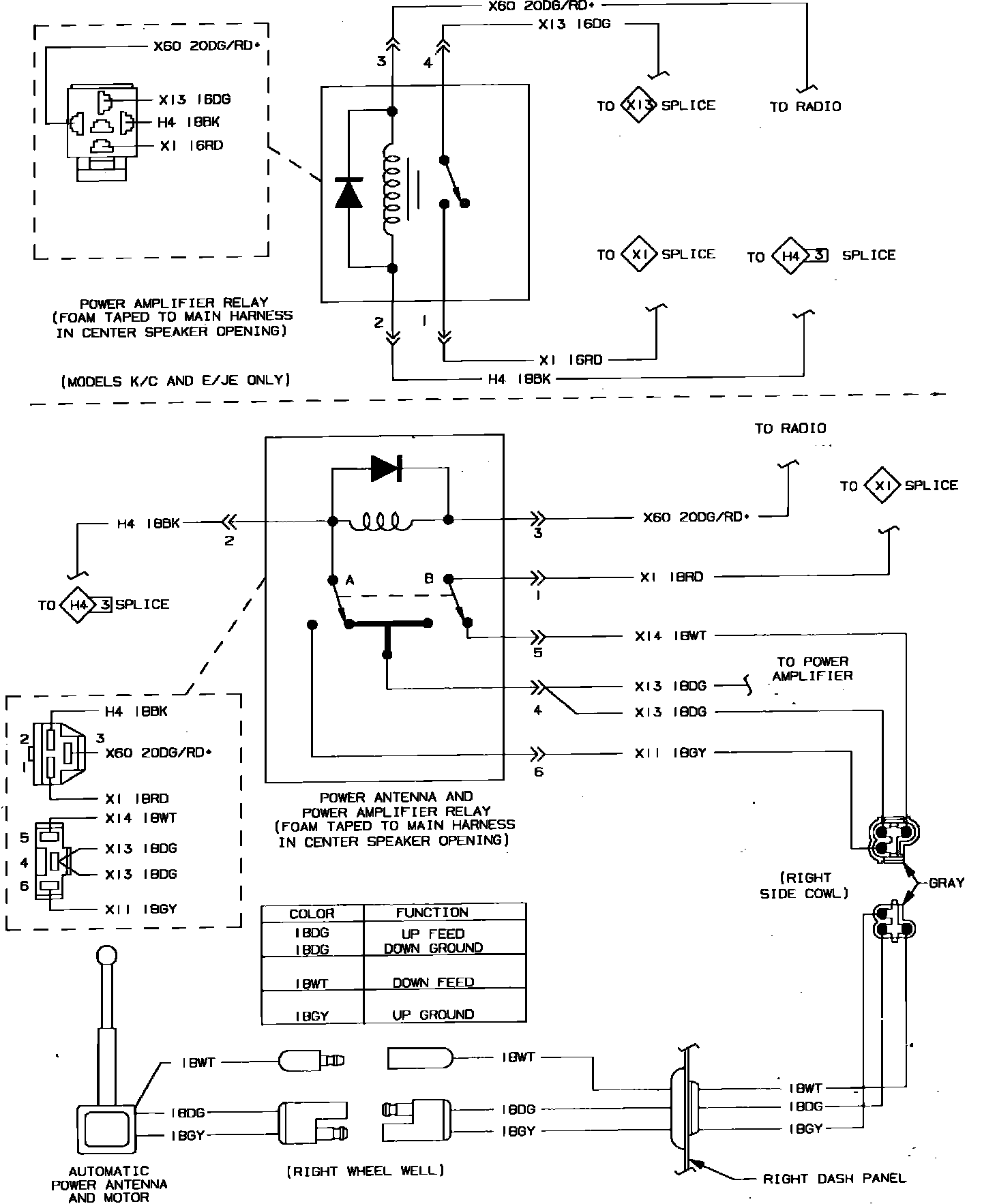

Fig. 50 Power Antenna & Radio Amplifier Wiring Circuit:
