Cruise Control
>>
4B Speed Control Power Circuit
4B Speed Control Power Circuit

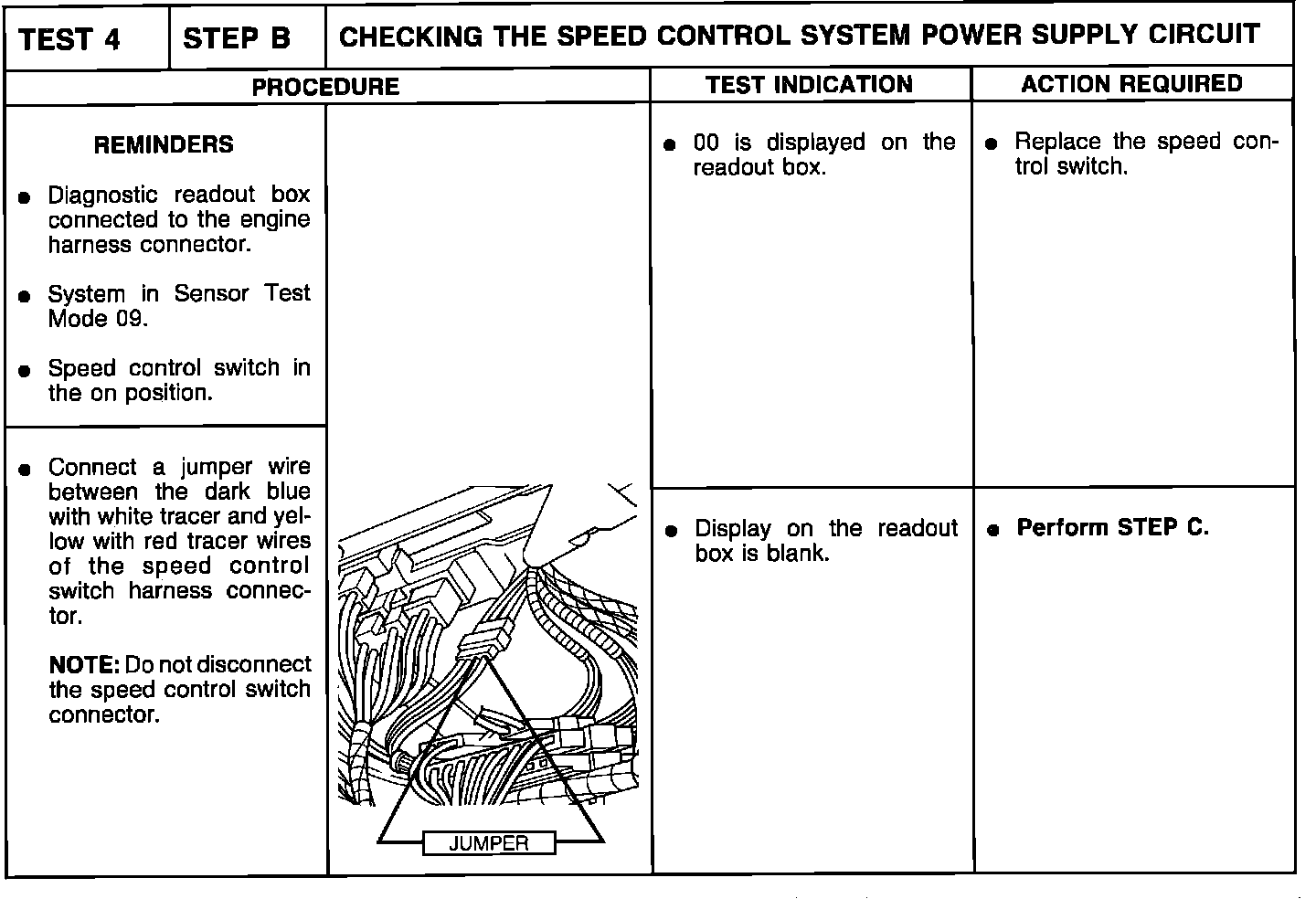

Test 4-Step B, S/C System Power Supply Circuit:
