Home
>>
Dodge
>>
1986
>>
Lancer L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

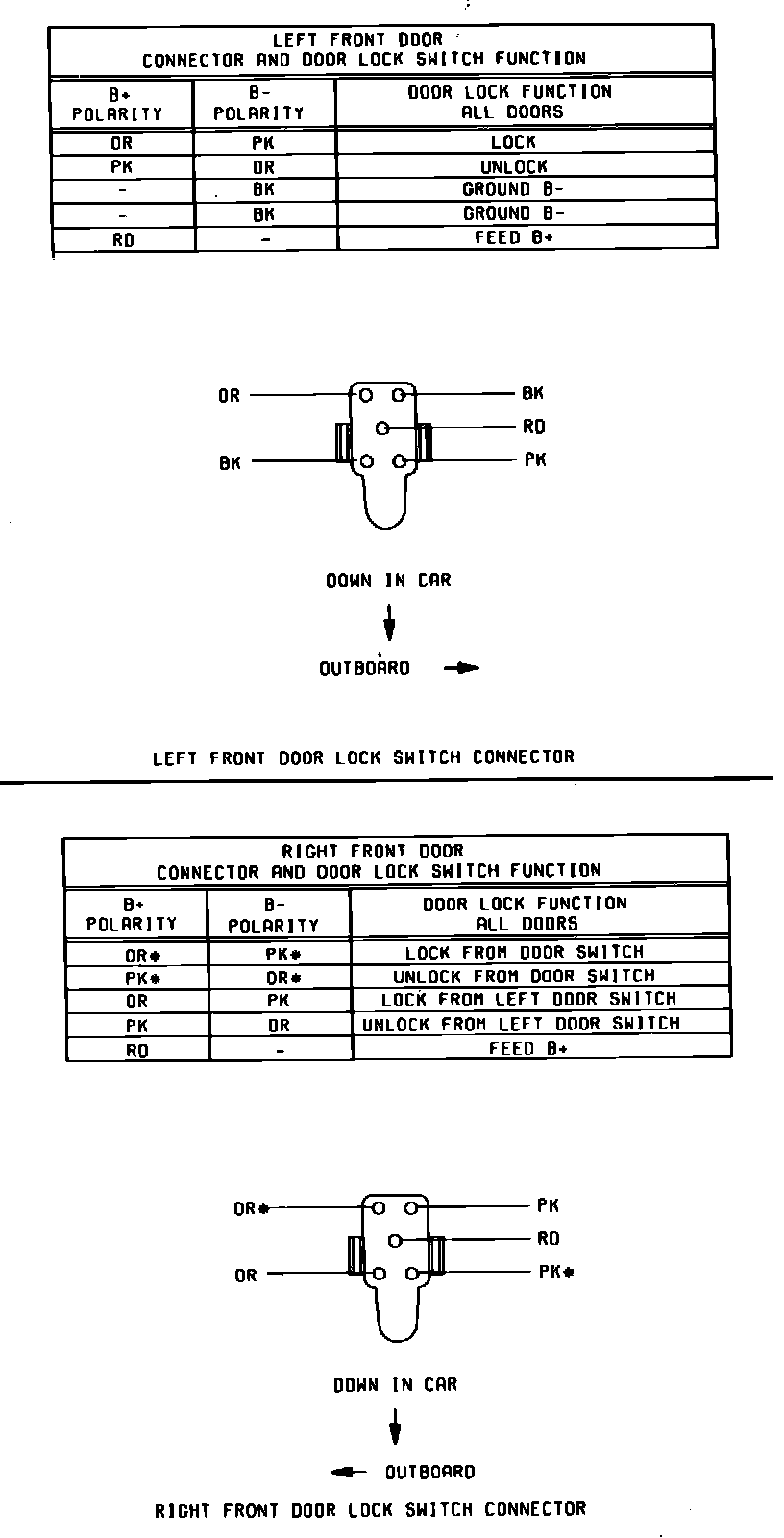

Fig. 14 Power Door Lock & Function Switch Connector:
