Power Steering Pump: Service and Repair

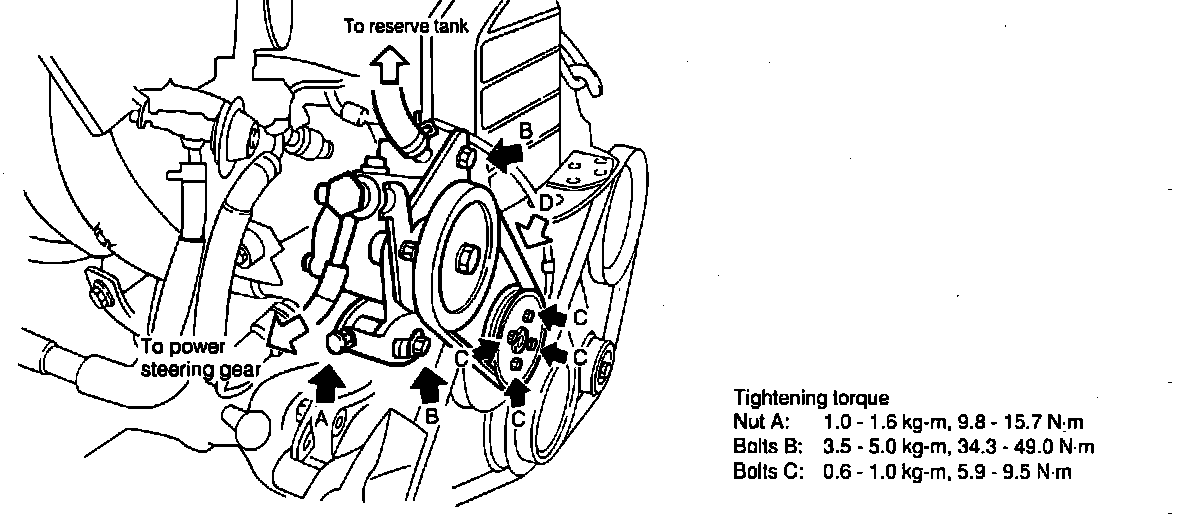

Fig. 19 Steering Pump Removal.:

1. Remove air cleaner assembly.
2. Drain power steering fluid from pump.
3. Remove hoses from pump.
4. Remove drive belt by loosening bolt marked A in Fig. 19.
5. Remove bolts marked B and remove pump.
6. Reverse procedure to install.
7. Bleed system.
