Daihatsu
>>
1990
>>
Charade L4-1295cc 1.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Automatic Transmission
Automatic Transmission

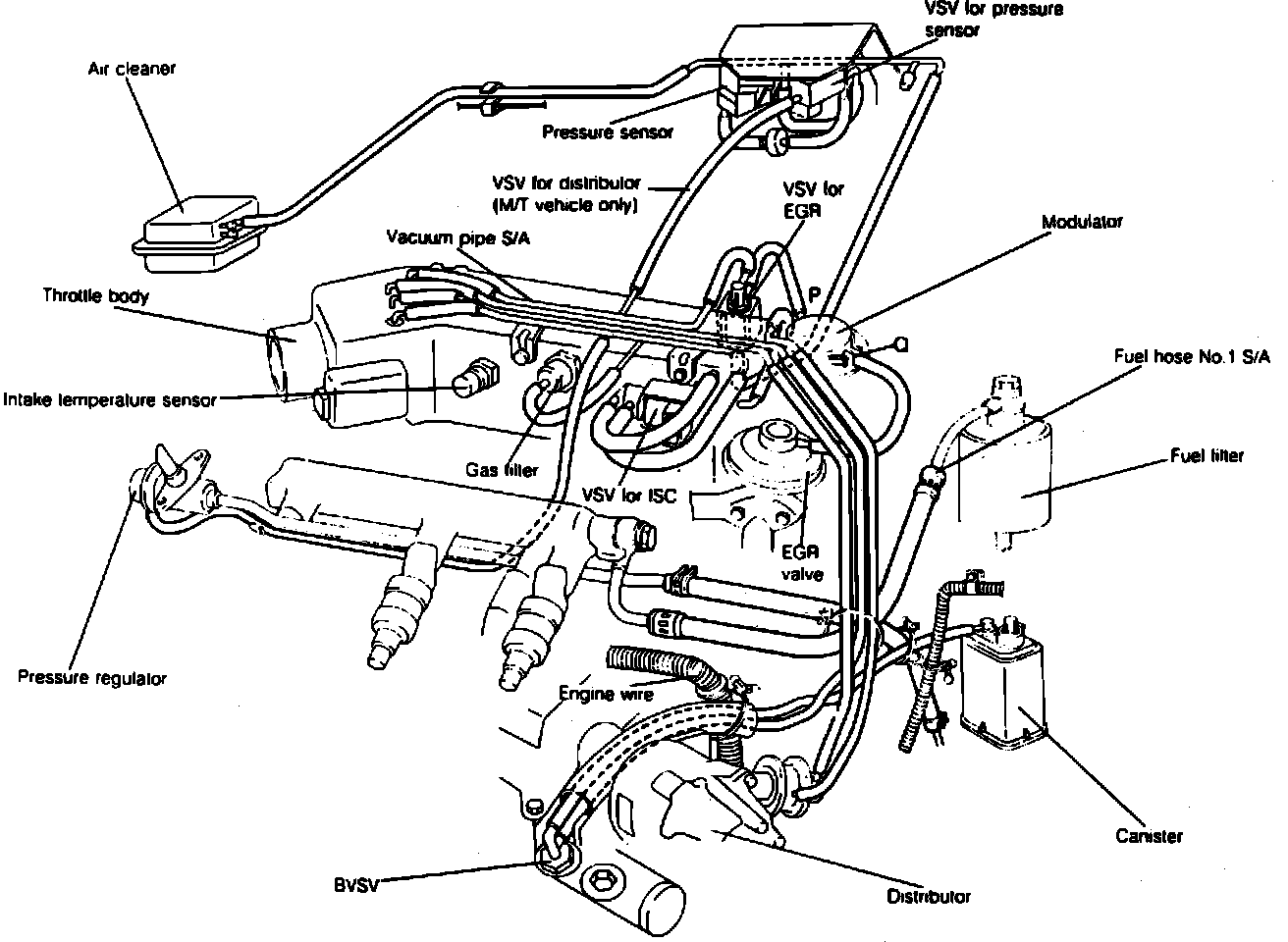

Fig. 2 Vacuum Hose Routing, Automatic Transmissions:
