Transaxle Molding Fixture Assembly

TRANSAXLE HOLDING FIXTURE ASSEMBLY

- Tools Required
- J 41230 Transmission Support Fixture
- J 3289-20 Support Fixture

Caution: To reduce the possibility of personal injury or transmission damage make sure, when doing the next step, that all of the bolts for the support fixture are installed as shown, and that the bolts are tightened to 98 inch lbs. (11 Nm).

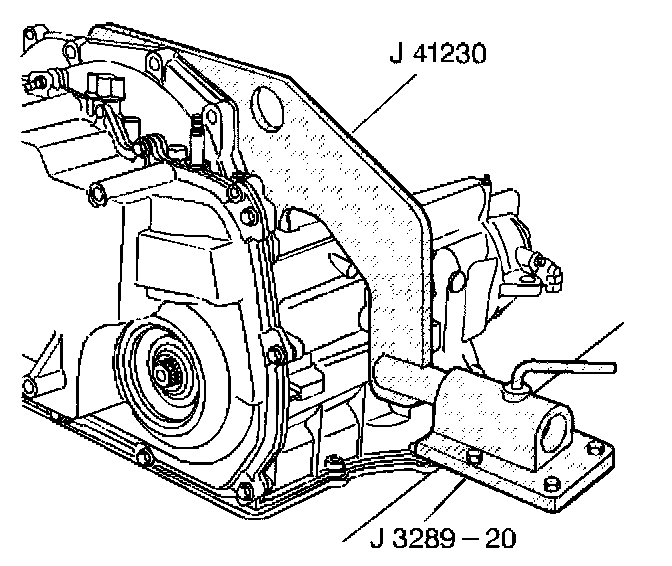

1. Install the J 41230 transmission support fixture onto the transmission.
2. Torque the support fixture bolts to 8 ft. lbs. (11 Nm)
3. Install the transmission and the support fixture onto the J 3289-20 fixture base.
4. Position the transmission with the side cover facing down.
5. Insert the pin into the J 3289-20 fixture base in order to lock the unit into place.
