Transmission Solenoid, Pressure Switch Assembly Circuit
Transmission Solenoid, Pressure Switch Assembly Circuit

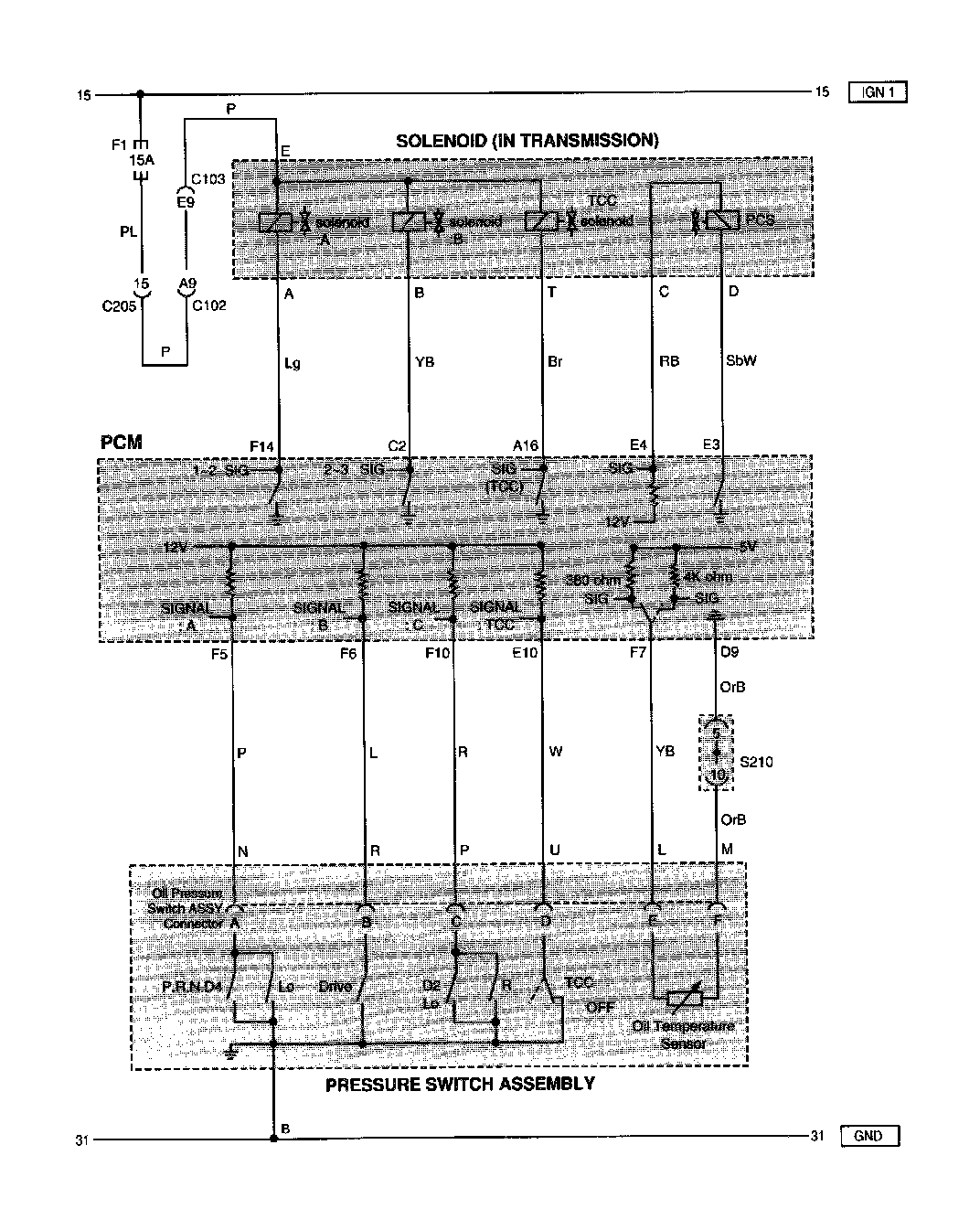

Electrical Wiring Diagram:
