Air Bag Systems
Air Bag Systems

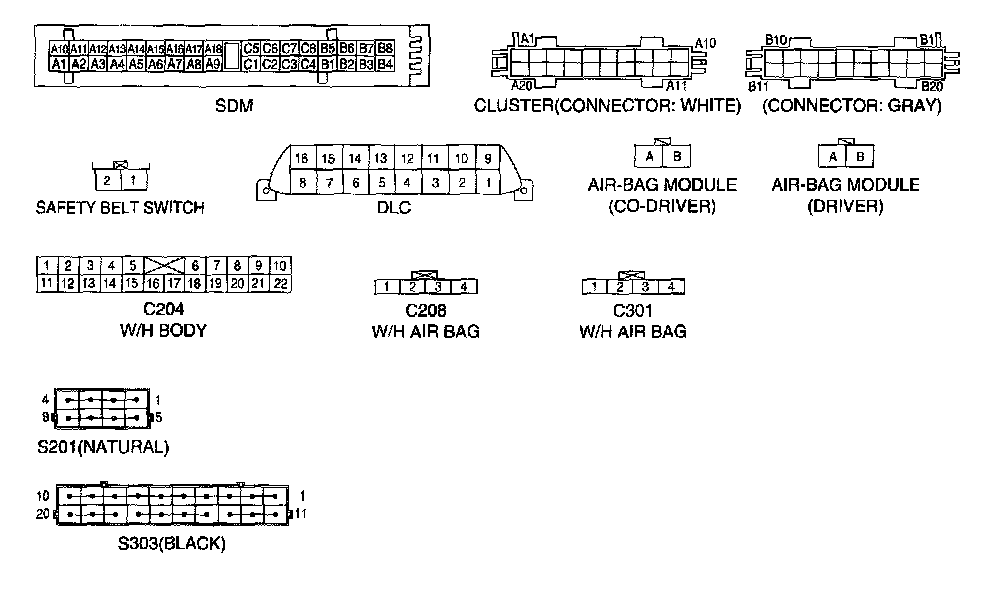

Connector Identification Symbol & Pin Number Position:

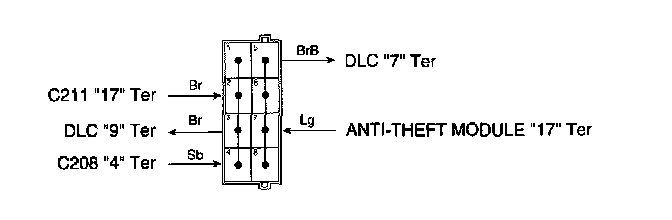

Splice Pack - S201 (Natural):
Splice Pack - S303 (Black) - N/B & H/B:

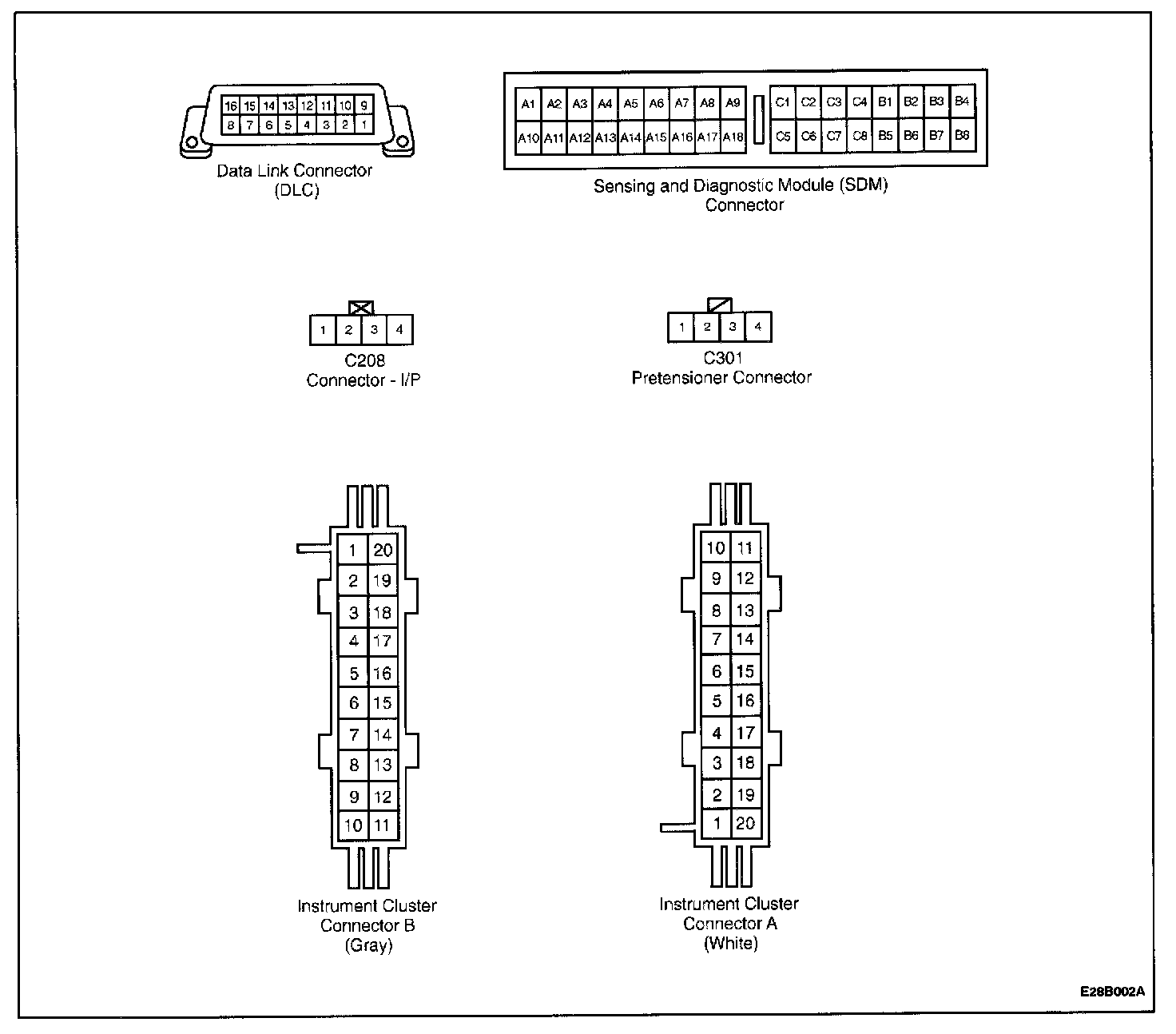

Connector End Views:
