Transaxle Left Mount

TRANSAXLE LEFT MOUNT

- Tools Required
- J-28467-B Engine Support Fixture

Removal Procedure
1. Disconnect the battery. Remove the battery and the battery tray.

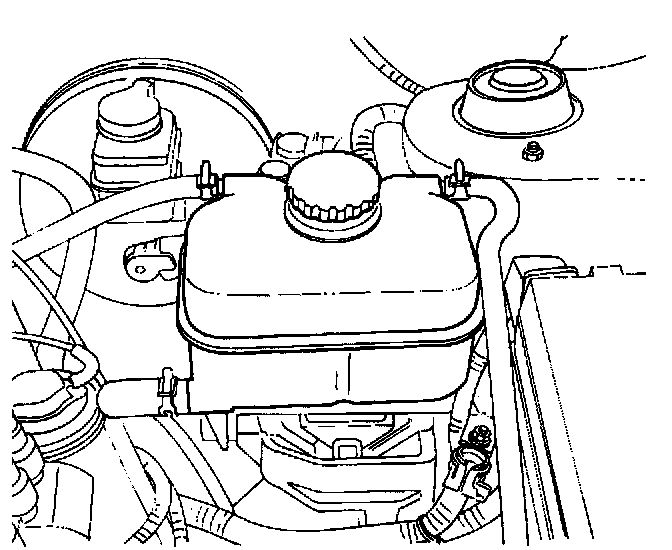

2. Remove the coolant surge tank.

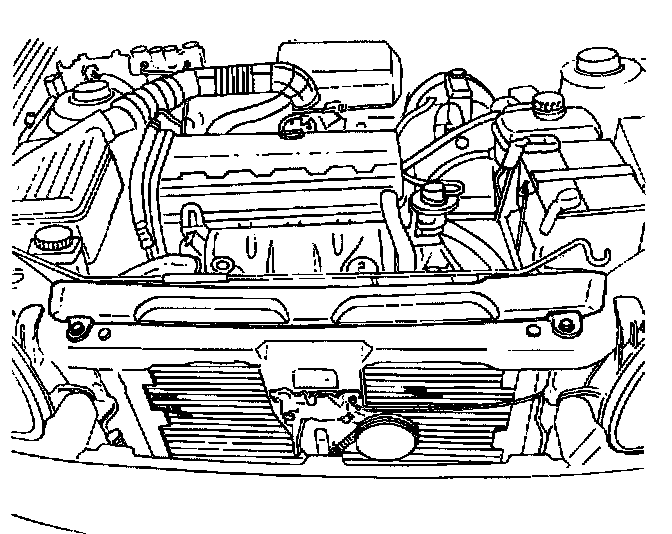

3. Remove the upper radiator cover.





4. Attach the engine support fixture J-28467-B to the engine.

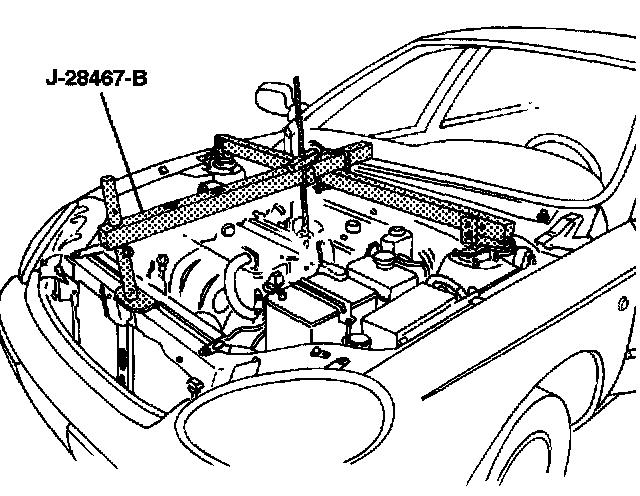

5. Support the engine with the engine support fixture J-28467-B.

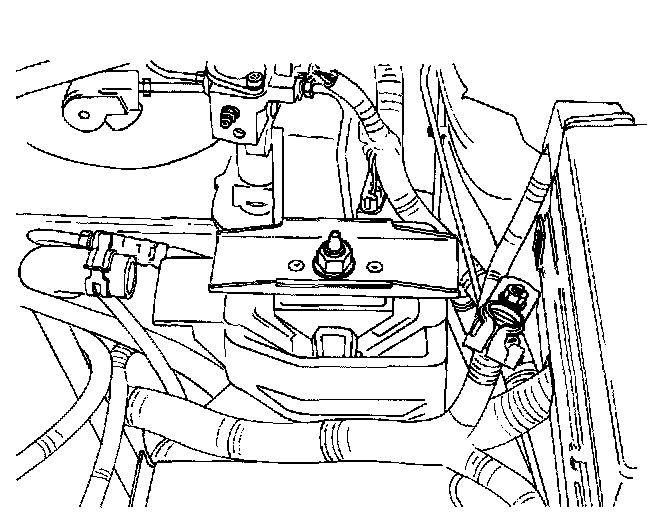

6. Remove the bolt that connects the transaxle left mount to the left transaxle bracket.

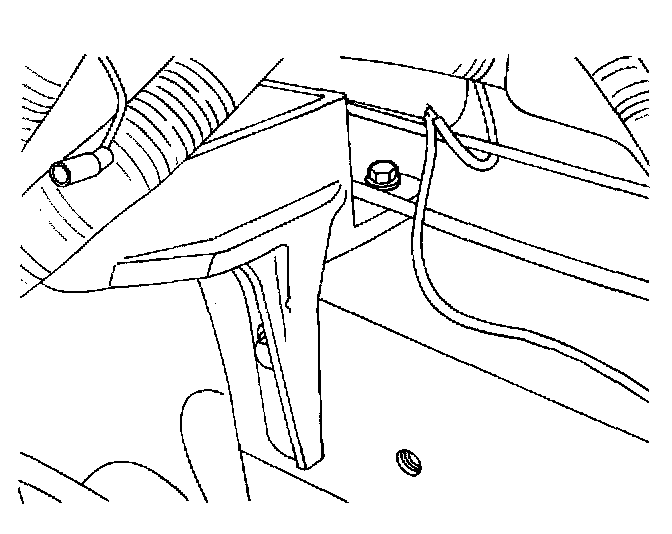

7. Remove the bolts that connect the transaxle left mount to the vehicle. Two bolts are on each side of the mount.
8. Remove the transaxle left mount.

Installation Procedure

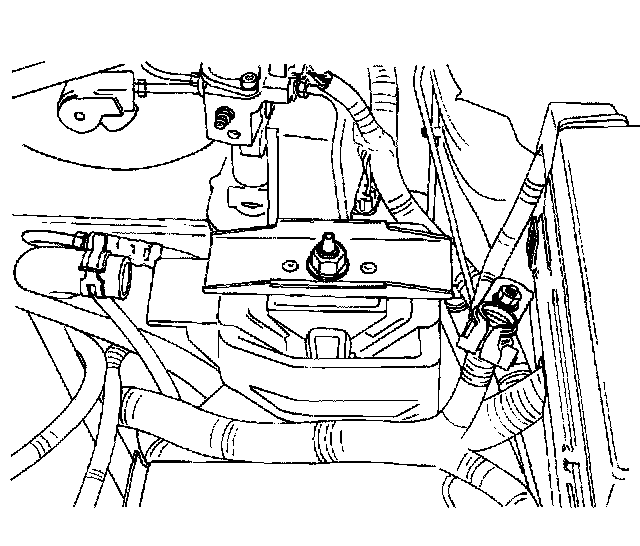

1. Install the transaxle left mount.

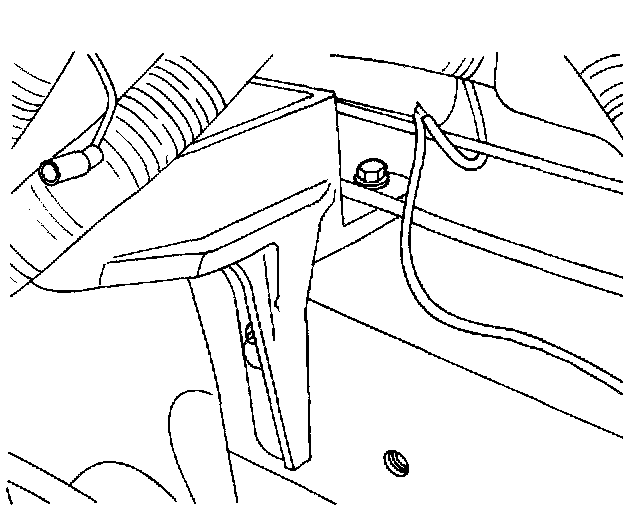

2. Install the bolts that connect the transaxle left mount to the vehicle.
- Tighten the transaxle left mount-to-body connecting bolts to 58 Nm (43 ft. lbs.).





3. Install the bolt that connects the transaxle left mount to the transaxle left bracket.
- Tighten the transaxle left mount-to-transaxle left bracket connecting bolt to 30 Nm (22 ft. lbs.).
4. Remove the engine support fixture J-28467-B from the engine.





5. Install the upper radiator cover.

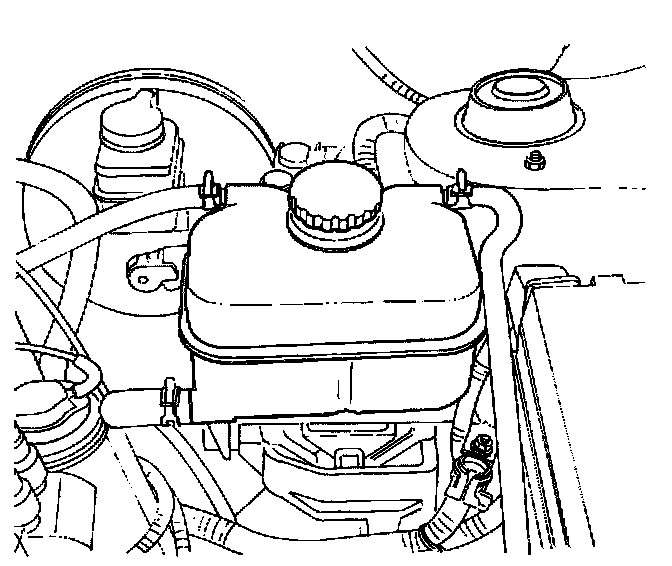

6. Install the coolant surge tank with the bolts.
- Tighten the coolant surge tank mounting bolts to 18 ft. lbs. (25 Nm).
7. Install the battery tray and the battery. Connect the battery.
