Transaxle Left Bracket

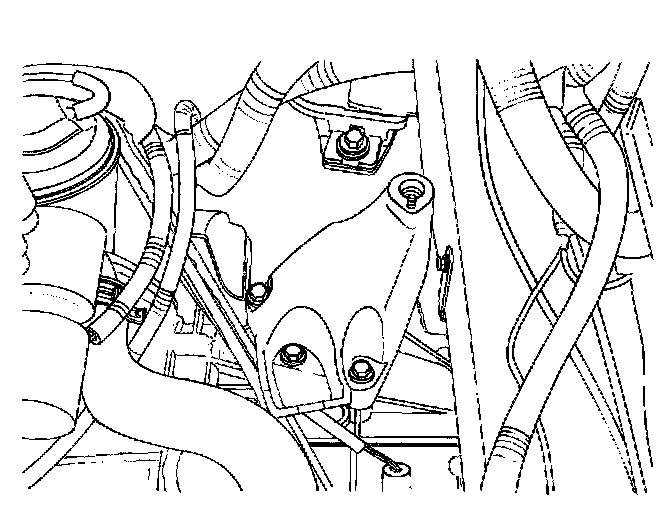

Removal Procedure
1. Remove the transaxle left mount.





2. Remove the bolts that connect the transaxle to the transaxle left bracket.
3. Remove the transaxle left bracket.

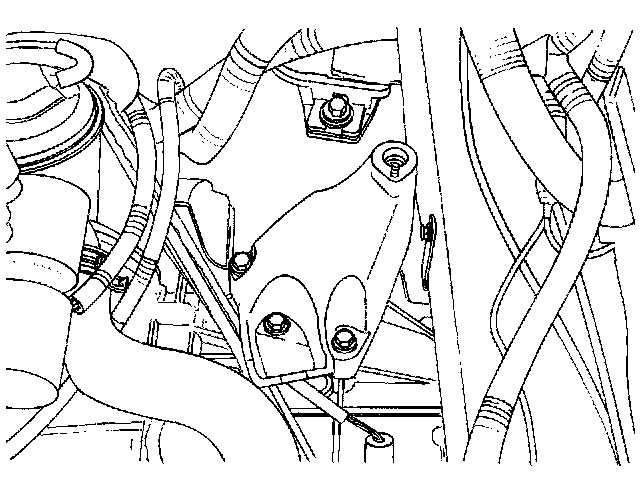

Installation Procedure
1. Install the transaxle left bracket.





2. Install the bolts that connect the transaxle left bracket to the transaxle.
- Tighten the transaxle left bracket-connecting bolts to 30 Nm (22 ft. lbs.).
3. Install the transaxle left mount.
