Transaxle Center Mount

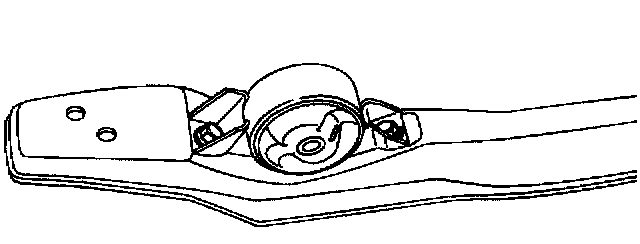

Removal Procedure
1. Remove the center member from the vehicle.





2. Remove the transaxle center mount-to-center member bolts.
3. Remove the transaxle center mount.

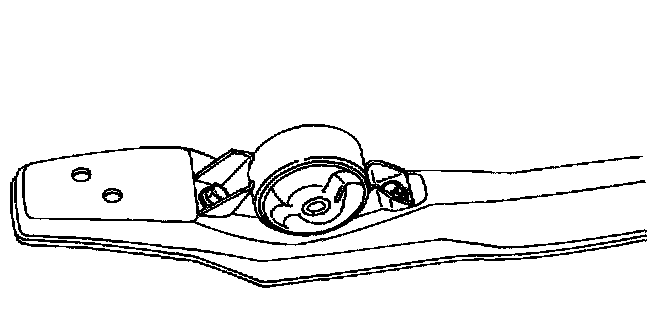

Installation Procedure
1. Install the transaxle center mount.





2. Install the transaxle center mount-to-center member bolts.
- Tighten the transaxle center bracket-to-transaxle bolts to 48 ft. lbs. (65 Nm).
3. Install the center member into the vehicle.
